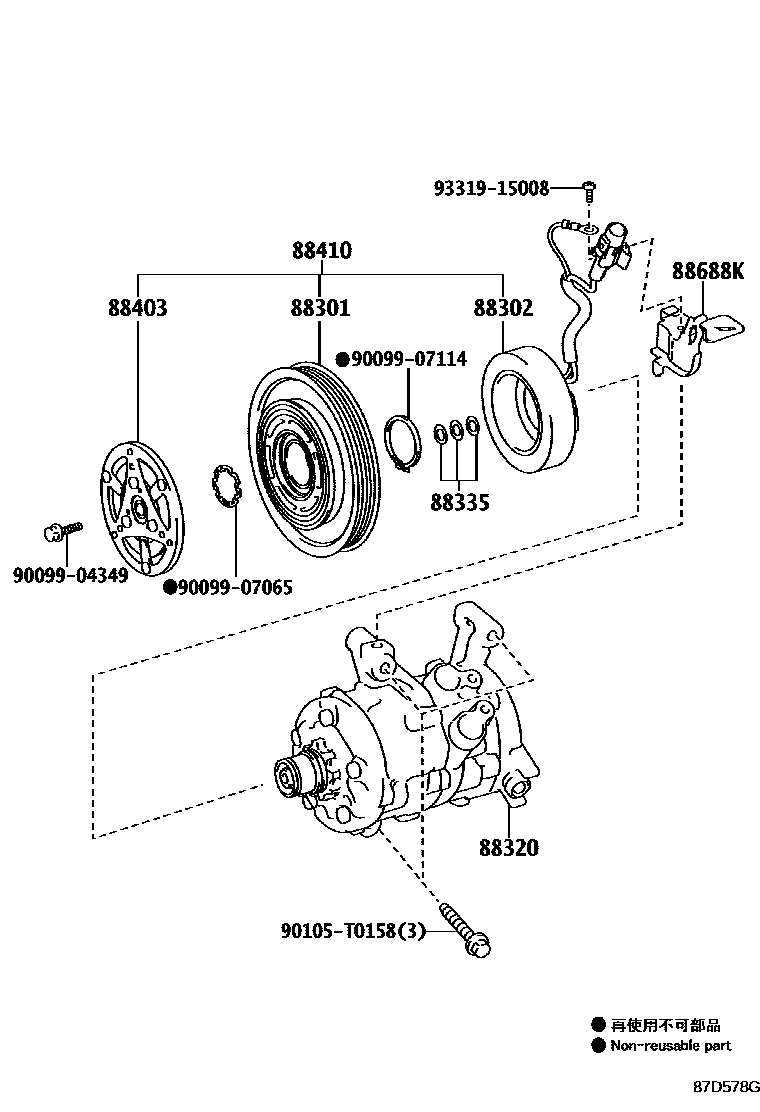

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1DEALER OPTION 0003 1 0004 1 0005 1 0011 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-0D160iNCP15#..(GCC,GEN,TH)..B; NCP150..4FC..TH..(G,R)..B; NCP150..5F..TH..D..B;NCP150..4FC..TH..(G,R)..B; NCP150..5F..TH..D..B;NCP150..4FC..TH..R..B201304-201603

BRUNEI SPEC; SINGAPORE & BRUNEI SPEC; SINGAPORE SPEC

main88412-0D230iNSP152201708-202207

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-0D110iNCP150..IDN..B201304-201506

main88411-0D240iNSP152201708-202207

88320COMPRESSOR ASSY, COOLER

main88320-0D060iNCP15#..(GEN,TH)..B; NCP150..4FC..TH..(G,R)..B; NCP150..5F..TH..D..B;NCP150..4FC..TH..(G,R)..B; NCP150..5F..TH..D..B;NCP150..4FC..TH..R..B201304-201603

BRUNEI SPEC; SINGAPORE & BRUNEI SPEC; SINGAPORE SPEC

main88320-0D070iNCP15#..GCC..B201308-201603

main88320-0D090iNCP150..TAIW201404-201604

main88320-0D130iNSP151..TAIW201605-201802

main88320-0D140iNSP150,151..GEN; NSP150,151..LHD..GEN..D201604-201709

LATIN AMERICA SPEC

main88320-0D150iNSP150,151..GCC201604-201712

main88320-0D160iNSP151..H201807-201910

88335GASKET KIT, OVERHAUL

main88335-14020iNSP151..F,H201803-202101

main88335-30420iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)201708-202108

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-0D130iNCP15#..GCC..C201402-201609

main88403-0K080iNCP15#..(GCC,GEN,TH)..B; NCP150..4FC..TH..(G,R)..B; NCP150..5F..TH..D..B;NCP150..4FC..TH..(G,R)..B; NCP150..5F..TH..D..B;NCP150..4FC..TH..R..B201304-201603

BRUNEI SPEC; SINGAPORE & BRUNEI SPEC; SINGAPORE SPEC

88410CLUTCH ASSY, MAGNET

main88410-0D280iNCP150..IDN..C;NCP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304-201609

main88410-0D310iNCP150..TAIW201404-201604

main88410-0D360iNSP151..TAIW201605-201802

main88410-0D370iNSP151..MA201604-201805

main88410-0D380iNSP150,151..GCC201604-201712

main88410-0D390iNSP152201708-202207

main88410-0D420iNSP151..H201807-201910

main88410-0D430iNCP15#..GCC..C201402-201609

main88410-0D440iNSP150..5F..G..A;NSP151..CVT..D..C201811-202108

88688KBRACKET, COOLER COMPRESSOR

main88849-0D020iNCP15#..(GCC,GEN,TH)..B; NCP150..4FC..TH..(G,R)..B; NCP150..5F..TH..D..B;NCP150..4FC..TH..(G,R)..B; NCP150..5F..TH..D..B;NCP150..4FC..TH..R..B201304-201603

BRUNEI SPEC; SINGAPORE & BRUNEI SPEC; SINGAPORE SPEC

main88849-0D050iNSP150..CVT..GCC..D;NSP150,151..GCC..(G,R)201801-202207

main88849-0D070iNSP150,151..GEN; NSP150,151..LHD..GEN..D201604-201709

LATIN AMERICA SPEC

main88849-0D110iNSP151..H201807-201910

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

90105T0158

main90105-T0158

9331915008

main93319-15008

12 parts on this diagram · 6 diagrams in section
