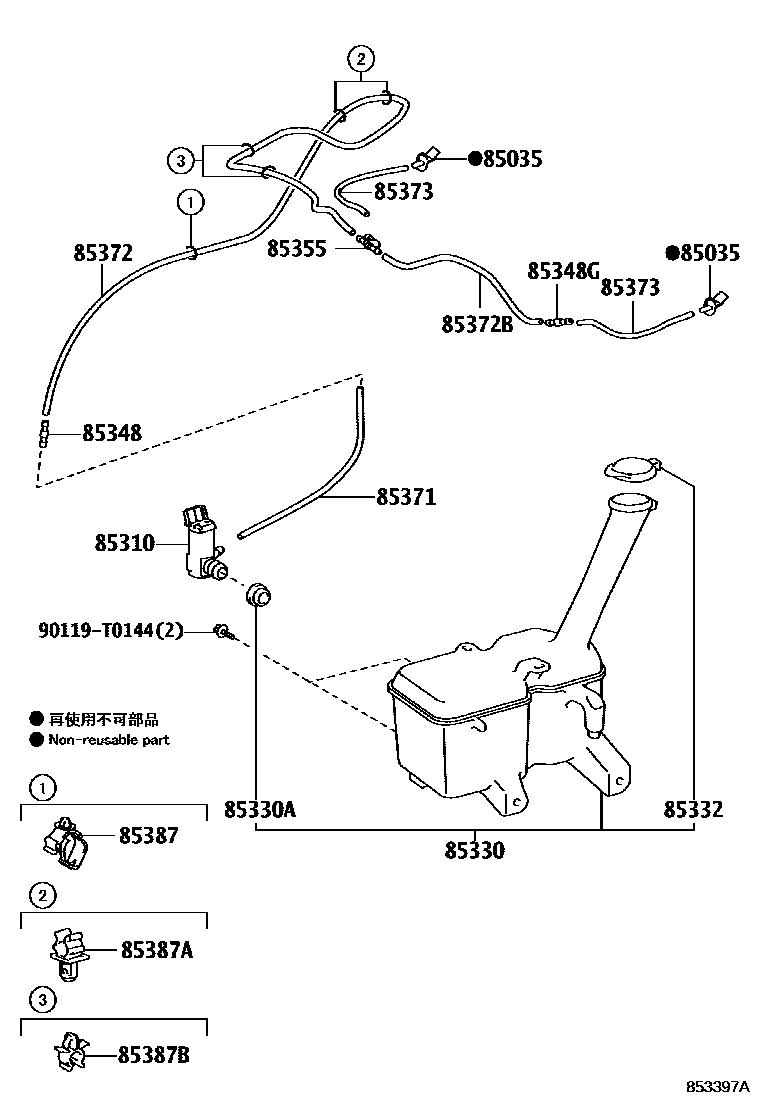

WINDSHIELD WASHER

0001 1 0003 1 0007 1 0008 1 0012 1 0014 1 0015 1 0016 1 0017 1 0018 1

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2iNCP150..MA;NSP151..IDN,MA;NCP15#,NSP150..C;NSP151..(GCC,TH)..C201310-201812

ANGLE -2

main85381-20230iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

ANGLE 0

main85381-20300iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

ANGLE +2

main85381-20310iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

ANGLE -2

main85381-30220iNSP151..F201803-202101

ANGLE 0

main85381-30230iNSP151..F201803-202101

ANGLE -2

main85381-30240iNSP151..F201803-202101

ANGLE +2

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D130iNSP15#..B201304-201611

main85330-0D131iNSP151..TH..G..C201610-201707

main85330-0K011iNSP150,151..C,G201801-202102

main85330-0K012iNSP150..5F..D..C;NSP151..CVT..D..C202103-202108

main85330-47080iNSP151..H201807-201910

85330JAR ASSY, WINDSHIELD WASHER

main85310-0D430iNSP150,151..I202003-202406

main85315-0D200iNCP150..TAIW201404-201604

main85315-0D220iNCP150..IDN..B201304-201506

main85315-0D250iNCP150..MA201310-201608

main85315-0D280iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main85315-0D390iNSP151..H201807-201910

main85315-0D410iNSP151..G201804-201908

main85315-0D420iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

85330ABUSH, WINDSHIELD WASHER JAR

main90068-32006iNSP151..F201803-202101

main90069-50013iNSP151..G201804-201908

main90099-32089iNSP151..TH..G..C201304-201707

85332CAP, WINDSHIELD WASHER JAR

main85316-02630iNSP150,151..GCC..B201609-201712

main85316-0D200iNSP151..F201803-202101

main85316-0D300iNSP150,151..C201801-202106

main85316-0D301iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C202106-202207

main85316-0D390iNSP151..H201807-201910

main85316-0D410iNSP151..G201804-201908

main85316-16070iNCP15#..C201310-201609

main85316-YE011iNCP15#..PH201304-201606

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNCP150..MA;NSP151..IDN,MA;NCP15#,NSP150..C;NSP151..(GCC,TH)..C201310-201812

main85375-02330iNCP15#,NSP150,151..(GCC,GEN,IDN,PH,TAIW,TH,VN)..B201304-201912

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNSP150..5F..D..C201801-202108

main85375-02330iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

85355VALVE, WINDSHIELD WASHER HOSE

main85321-0A010iNSP150..CVT..A;NSP150..LHD..5F..GEN;NSP151..(GCC,GEN)..A;NSP150..5F..GCC..R..A202204-202207

main85321-28020iNSP150..5F..G..A;NSP150..5F..GCC..D..(A,C)201708-202108

main85348-14390iNSP151..TH..B201912

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33188iNCP150..TAIW201404-201604

L=260

main90068-33207iNCP15#..VN201304-201608

L=230

main90068-33226iNCP15#..C201312-201609

L=230

main90068-33300iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

L=210

main90069-46081iNSP151..G201804-201908

L=300

main90099-33080iNSP151..H201807-201910

L=1450(*H,L=230)

main90099-33299iNSP151..MA201901-202011

L=1450(*H,L=230)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-59128iNCP15#,NSP150,151..(GCC,GEN,IDN,PH,TAIW,TH,VN)..B201304-201912

L=1590

main90068-59134iNCP15#,NSP150,151..C201312-201712

L=1590

main90068-59167iNSP151..F201708-202101

L=1620

main90068-59169iNSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..LHD..(C,H)201801-202207

L=1620

main90069-46086iNSP151..G201804-201908

L=205

main90099-59371iNSP151..MA201901-202011

L=1620

main90099-59372iNCP150,NSP151..MA201310-201812

L=1560

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59111iNCP15#,NSP150,151..(GCC,GEN,IDN,PH,TAIW,TH,VN)..B201304-201912

L=305

main90068-59122iNCP15#,NSP150,151..C201312-201712

L=305

main90068-59148iNSP151..IDN201801-201912

L=300

main90068-59176iNSP152..HTWC;NSP150,151..D,E,I201708-202406

L=300

main90069-46086iNSP151..G201804-201908

L=205

main90099-59370iNCP150,NSP151..MA201310-201812

L=305

main90446-07001iNSP151..MA201901-202011

L=1800(*H,L=300)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33153×2iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

L=180

main90068-33160iNSP151,152..TH..A201912-202207

L=40

main90068-33207×2iNCP15#,NSP150,151..(GCC,GEN,IDN,PH,TH,VN)..B201304-201912

L=230

main90068-33226×2iNCP15#,NSP150,151..C201312-201712

L=230

main90068-33330iNSP151..IDN201801-201912

L=180

main90069-46089iNSP151..G201804-201908

L=180

main90099-33299×2iNCP150,NSP151..(MA,TAIW)..B201310-201812

L=1450(*H,L=230)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-0K100iNSP151..TH..B202008

main82711-3F230iNSP150..A,C,I;NSP152..HTWCB;NSP151..GCC..C;NSP151..(GCC,TH)..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,IDN,MA,PKN)201708-202008

85387ACLAMP, WASHER, NO.2

main85371-0D050×2iNCP15#,NSP150,151..C201312-201712

main85371-52110×2iNSP152..HTWC;NSP150..D,E,I;NSP151..AGT,BZ,IND,MA,PKN;NSP151..(GEN,PH,VN)..(D,E,H)201708-202406

85387BCLAMP, WASHER, NO.3

main85371-12040×2iNSP151..H201807-201910

main90469-07011×2iNCP150,NSP151..TAIW;NCP15#,NSP150,151..C201312-201802

main90469-T0005×2iNSP151..D,E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN201708-202406

90119T0144

main90119-T0144

16 parts on this diagram · 10 diagrams in section
