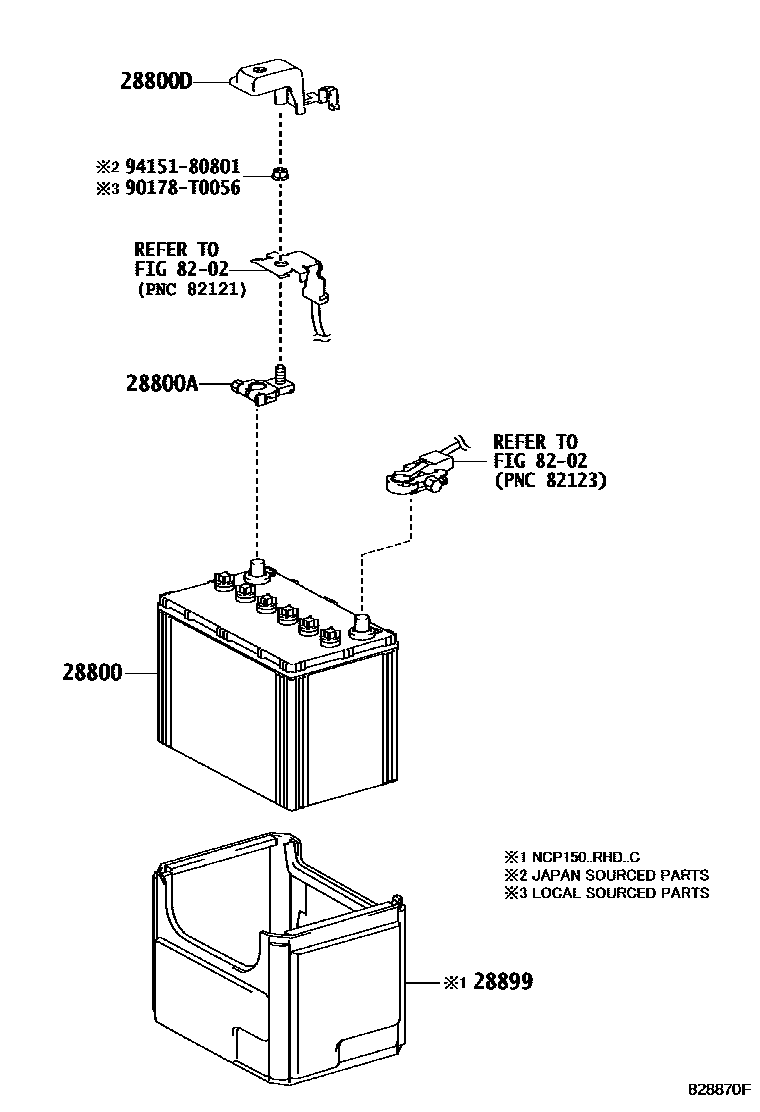

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-0D411i1NRFE..NSP150..CVT..I202003-202211

46C24L

main28800-0D412i1NRFE..NSP150..CVT..I202212-202406

46C24L

main28800-0M150i1N#,2N#..NCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B201304-201701

34B19L(S),GS

main28800-0M151i1NRFE,2NRFE..NSP150,151..(GCC,GEN,TH)..B201702-202211

34B19L(S),GS

main28800-0M152i2NRFE..NSP151..B202212

34B19L(S),GS

main28800-0M160i1NRFE,2NRFE..NSP150,151..(GCC,GEN,TH)..B;1NZFE,2NZFE..NCP15#..(GCC,GEN,IDN,TH,VN)..B201304-202008

34B19L(S),HITACHI

main28800-0M170i1NZFE,2NRFE..NCP150,NSP151..MA201310-201812

34B19L(S)

main28800-0M180i1N#,2N#..NCP15#,NSP150,151..PH201307-201806

34B20L(S)

main28800-0M190i2NRFE..NSP151..F201803-202101

34B19L(S),GS

main28800-0M200i2NRFE..NSP151..F201803-202101

34B19L(S),YUASA

main28800-0M210i1NRFE..NSP150..5F..C;2NRFE..NSP151..(G,R)..C; 2NRFE..NSP151..5F..D..C201801-201807

34B19L(S); 34B19L(S),BRUNEI SPEC

main28800-0M211supersedes 28800-0Y161i1NRFE..NSP150..5F..R..C;2NRFE..NSP151..(G,R)..C201808-202207

34B19L(S)

main28800-0Y140i1NRFE..NSP150..CVT..GCC..A201801-201810

46B24L(S),HITACHI

main28800-0Y150i3NRFKE..NSP152201911-202207

Q-85

main28800-0Y160i2NRFE..NSP151..D..C;1NRFE..NSP150..CVT..C201801-201902

46B24L(S)

main28800-0Y161i1NRFE..NSP150..CVT..GCC..A202009-202207

46B24L(S)

main28800-0Y260i2NRFE..NSP151..I;1NRFE..NSP150..5F..I202003-202211

34B19L

main28800-0Y261i2NRFE..NSP151..I;1NRFE..NSP150..5F..I202212-202406

34B19L

main28800-0Y280i2NRFE..NSP151..GCC..A;1NRFE..NSP150..5F..GCC..A201810-202009

34B19L

main28800-0Y290i1NRFE..NSP150..CVT..GCC..A201810-202009

46B24L

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i1NRFE,2NRFE..NSP150,151..GEN201304-201709

main90982-05063i2NRFE..NSP151..CVT..I;1NRFE,2NRFE..NSP150,151..MTM..(G,I)201804-202406

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-52160i2NRFBE..NSP151201807-201910

main82821-12490i1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B201304-201603

28899INSULATOR, BATTERY

main28899-0M020i1NZFE..NCP150..RHD..C201406-201609

main28899-0Y010i2NRFE..NSP151..CVT..D..C201801-202108

main28899-21020i1NZFE..NCP150..RHD..C201312-201405

8202WIRING & CLAMP

→ Go to FIG 82-02

90178T0056

main90178-T0056

9415180801

main94151-80801

7 parts on this diagram · 2 diagrams in section
