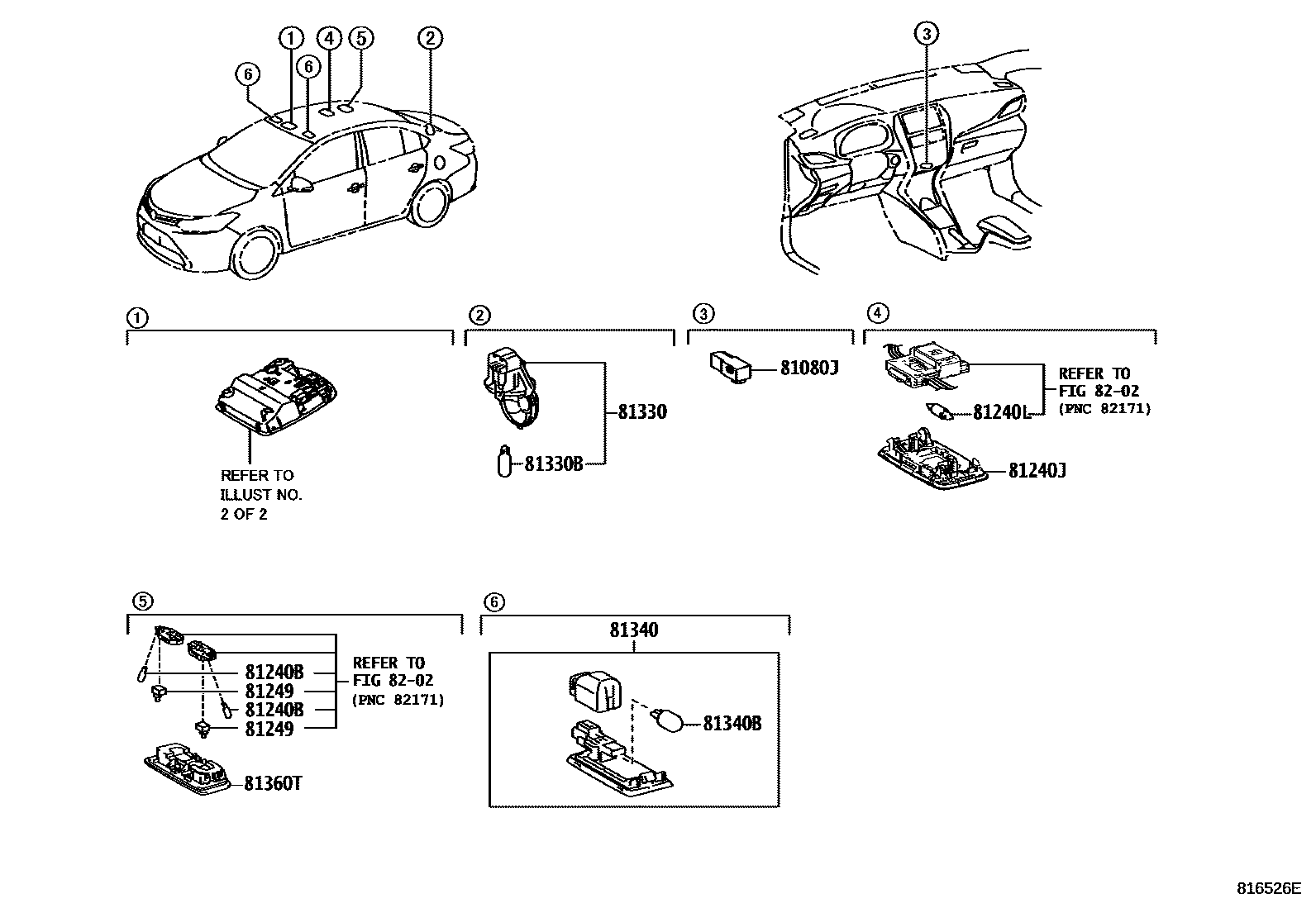

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-48020iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)201708-202406

81240BBULB, ROOM LAMP, NO.1

main99132-12050iNSP151..(G,R,V)..G201804-201908

12V 5W

81240JLAMP ASSY, ROOM

main81240-35020-A4iNSP151..D..G;NSP151..A,E,I;NSP150,152..A,C,I;NSP151..(GCC,IDN,TAIW)..(G,R)..(C,F)201708-202005

IVORY,TRIM0#

sub81240-35020

sub81240-42020

main81240-35020-B2iNSP151..MA..V;NSP151..GCC..G..C;NSP150,152..A,C,D,E;NSP151..(GCC,IDN)..(D,R)..C;NSP151..(AGT,BZ,MA)..(D,G,R);NSP151..(GCC,GEN,PH,TAIW,TH)..(A,D,F,H)201708-202005

GRAY,TRIM2#

sub81240-35020

sub81240-42020

main81240-42020-A1iNSP151..R..F202006-202406

IVORY,TRIM0#

main81240-42020-B1iNSP151..F202006-202207

GRAY,TRIM2#

81240LBULB, ROOM LAMP

main90981-14011iNSP152..HTWC;NSP151..MA..V;NSP150..D,E,I;NSP151..(GEN,IND)..D..(G,H);NSP151..(AGT,BZ,MA,PKN)..(D,G,R);NSP151..(GEN,PH,VN)..(G,R)..(D,E,H)201708-202406

12V 8W

81249SWITCH, ROOM LAMP

main84532-58010iNSP151..(G,R,V)..G201804-201908

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-02030iNCP15#..(GCC,GEN,TH)..B201304-202406

main81330-02030iNSP151..H201906-201910

(L)

main81330-0D020iNSP151..TAIW201404-202101

main81330-12020iNSP151..H201906-201910

(J)

main81330-12020iNSP151..G201804-201908

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iNCP15#..MA,VN201304-202406

12V 3.8W

81340LAMP ASSY, VANITY

main81340-52010-B1iNSP151..H201807-201910

GRAY,TRIM2#

81340BBULB (FOR VANITY LAMP)

main99132-12050iNSP151..H201807-201910

12V 5W

81360TLAMP ASSY, SPOT

main81360-20010-A3iNSP151..(G,R,V)..G201804-201908

IVORY,TRIM0#

8202

11 parts on this diagram · 2 diagrams in section
