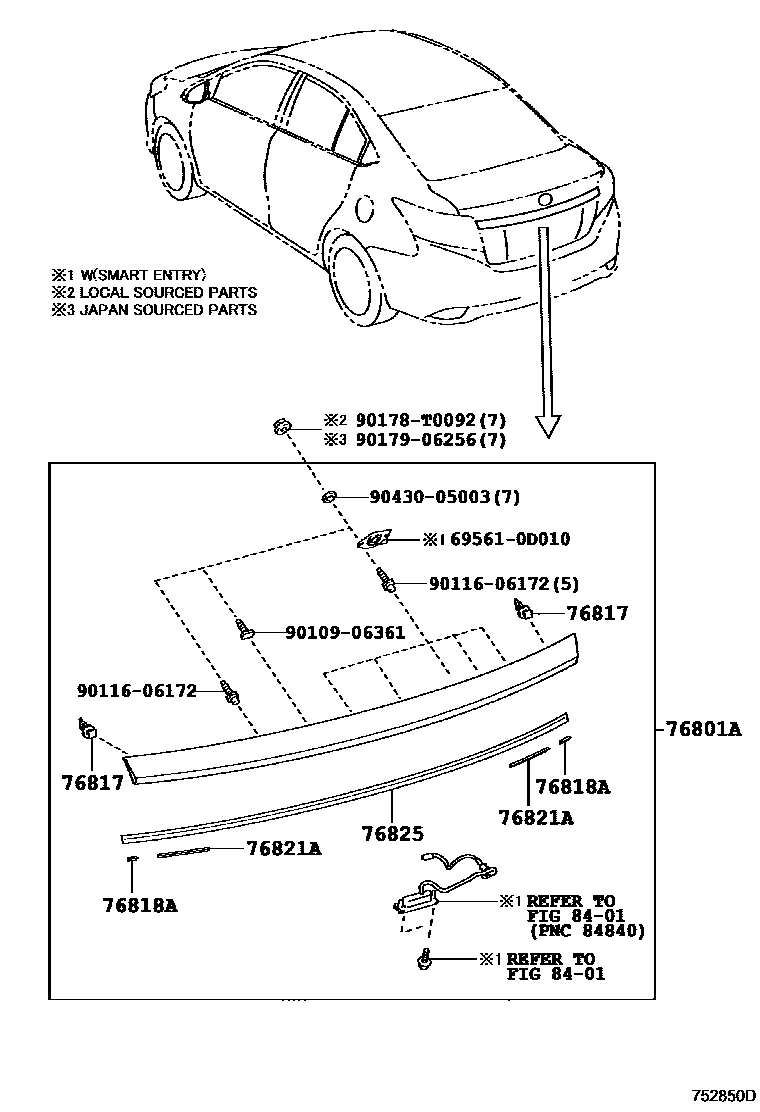

REAR MOULDING
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
NO PAINT REQ.
PLATED
main76801-0D290iNSP151..MA..(D,G,R);NSP151..(GEN,TAIW)..(G,V)..B;NCP15#,NSP150..(GEN,IDN,MA)..G..B201304-201812
PLATED
PLATED
NO PAINT REQ.
PLATED
PLATED
NO PAINT REQ.
main76801-0D870iNSP151..RHD..A;NSP150..CVT..GEN..G..A;NSP151..LHD..(GEN,VN)..G..(A,E); NSP152201708-202207
NO PAINT REQ.; NO PAINT REQ.,SPORT PACKAGE
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,G-HI PACKAGE, WITH(CRUISE CONTROL)
main76801-0D912iNSP150,151..(GEN,PH)..D..B;NCP15#..(GEN,PH,TH,VN)..D..B;NSP151..(GCC,TH,VN)..(D,R)..B;NCP15#,NSP150..(GCC,IDN,PH,TH,VN)..R..B201304
PAINT REQ.
PAINT REQ.
PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,XL-PLUS PACKAGE
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
PLATED,LATIN AMERICA SPEC&E-SPORT PACKAGE(FOR LATIN AMERICA)
NO PAINT REQ.,BACK MONITOR-WITH
PAINT REQ.,SPECIAL EDITION
PAINT REQ.,SPECIAL EDITION
NO PAINT REQ.,BACK MONITOR-WITH
76817CLIP, BACK DOOR OUTSIDE GARNISH
76818APAD, LUGGAGE GARNISH, NO.1
SPECIAL EDITION
76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
SPECIAL EDITION
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
8401SWITCH & RELAY & COMPUTER
695610D010RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER
main69561-0D010
9010906361
main90109-06361
9011606172
main90116-06172
90178T0092
main90178-T0092
9017906256
main90179-06256
9043005003
main90430-05003
12 parts on this diagram · 4 diagrams in section
