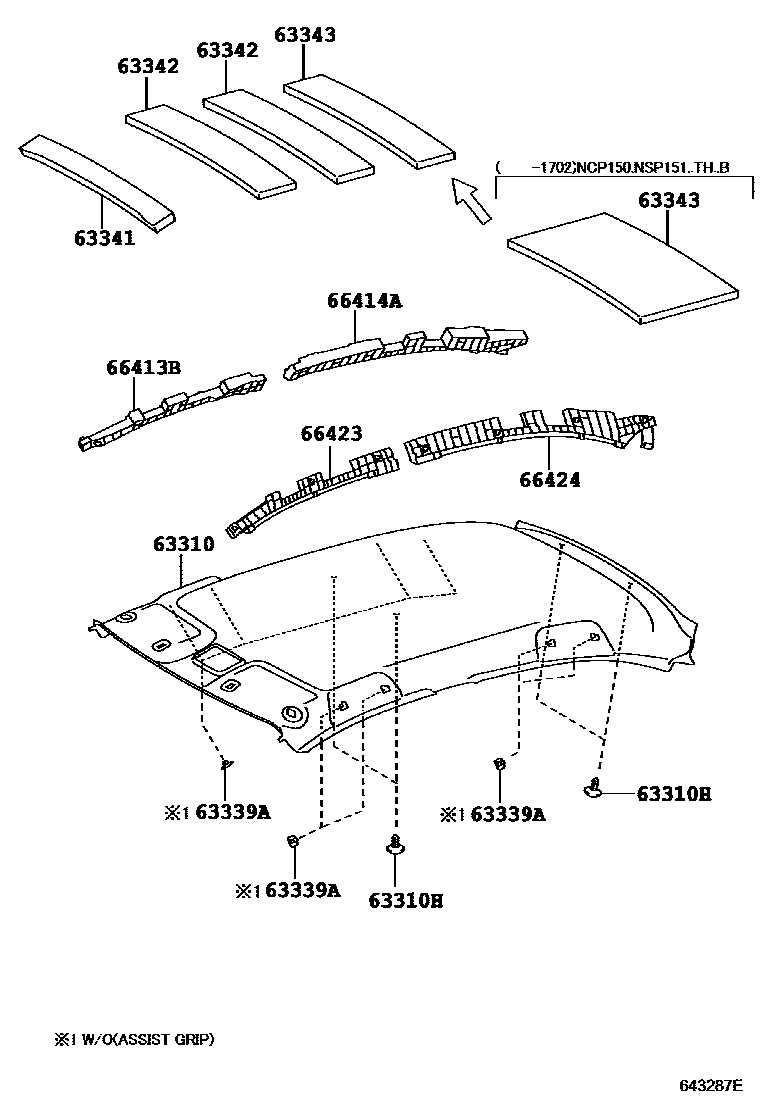

ROOF HEADLINING & SILENCER PAD

0001 1 0005 1 0009 1 0010 1 0011 1W(MOON ROOF) 0012 1

63310HEADLINING ASSY, ROOF

main63310-0D580-A0iNSP151..TH..(G,R)..B201304

IVORY,TRIM0#

main63310-0D580-B0iNSP150,151..GEN201304-201709

GRAY,TRIM2#

main63310-0D590-A0iNCP150..MA..(D,G,R)201310-201501

IVORY,TRIM0#

main63310-0D590-B0iNSP151..MA201310-201812

GRAY,TRIM2#

main63310-0D610-A0iNCP150..VN201403-201608

IVORY,TRIM0#

main63310-0D610-B0iNSP151..VN201403-201609

GRAY,TRIM2#

main63310-0D620-A0iNCP150..TAIW..R201404-201604

IVORY,TRIM0#

main63310-0D620-B0iNSP151..TAIW201404-201802

GRAY,TRIM2#

main63310-0D690-A0iNCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C201312-201609

IVORY,TRIM0#

main63310-0D690-B0iNSP151..TH..G..C201312-201707

GRAY,TRIM2#

main63310-0DA20-A0iNSP150,151..I202003-202406

IVORY,TRIM0#

main63310-0DB20-A0iNCP150..PH201411-201606

IVORY,TRIM0#

main63310-0DB20-B0iNCP15#..PH201411-201606

GRAY,TRIM2#

main63310-0DC00-A0iNSP151..D..G201804-201908

IVORY,TRIM0#

main63310-0DC10-A0iNSP151..(G,R,V)..G201804-201908

IVORY,TRIM0#

main63310-0DC20-A0iNSP152..HTWC;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A;NSP151..(GCC,GEN,VN)..(A,E)201708-202207

IVORY,TRIM0#

main63310-0DC20-B0iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

GRAY,TRIM2#

main63310-0DC30-B0iNSP151..MA201901-202011

GRAY,TRIM2#

main63310-0DC40-A0iNSP150..5F..D..C201801-202108

IVORY,TRIM0#

main63310-0DC40-B0iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

GRAY,TRIM2#

main63310-0DC50-B0iNSP150,151..D201807-201910

GRAY,TRIM2#

main63310-0DC70-A0iNSP151..R..F201803-202101

IVORY,TRIM0#

main63310-0DC70-B0iNSP151..F201803-202101

GRAY,TRIM2#

main63310-0DD30-B0iNSP151..(D,G,R)..H201807-201910

GRAY,TRIM2#

main63310-0DK20-A0iNSP151..TH..A202009-202207

IVORY,TRIM0#

main63310-0DK20-B0iNSP151,152..TH..A202009-202207

GRAY,TRIM2#

main63310-0DC80-A0iNSP151..V..G201804-201908

SUNSHADE-WITH,IVORY,TRIM0#

main63310-0DE20-B0iNSP151..BZ..(G,R)201807-201910

ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER & *IS),GRAY,TRIM2#

main63310-0DE30-B0supersedes 63310-0DD40-B0iNSP151..V..H201807-201910

ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER & *IS),GRAY,TRIM2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-A4×4iNCP150..TAIW..R201404-201604

SHELL,TRIM0#

main90467-05164-B6×2iNSP151..F201803-202101

GRAY,TRIM2#

main90467-T0004-A1×4iNCP150..MA..G201304-201501

SHELL,TRIM0#

main90467-T0004-B1×4iNSP151..TH..B201304

GRAY,TRIM2#

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-0D070-A0×6iNSP150..GCC..D..B201308-201712

IVORY,TRIM0#

main63339-0D070-B0×6iNSP150..CVT..GCC..D..A201801-202207

GRAY,TRIM2#

main63339-0D100-A0×6iNSP150..CVT..D..C201801-202207

IVORY,TRIM0#

main63339-0D100-B0×6iNSP150..CVT..D..C201801-202207

GRAY,TRIM2#

main63339-52030-B1×2iNSP151..6F..AGT;NSP151..(BZ,GEN)..(D,G,R)..H201807-201910

GRAY,TRIM2#

63341PAD, ROOF SILENCER, NO.1

main63341-0D130iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main63341-0D200iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main63341-0D240iNSP151..TAIW201404-201802

main63341-0D370iNSP151..TH..B201410-201702

main63341-0D620iNSP151..(D,G,R)..H201807-201910

main63341-0D660iNSP150,151..I202203-202406

main63341-0D750×2iNSP151..G201804-201908

63342PAD, ROOF SILENCER, NO.2

main63341-0D420×2iNCP150..MA201407-201501

main63341-0D430×2iNCP150..MA201501-201608

main63341-0D720×2iNSP151..D..G201804-201908

main63341-0D770×2iNSP151..(G,R,V)..G201804-201908

main63341-0D790×2iNSP151..TH..B201702

main63343-0D190×3iNSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)201708-202207

main63343-0D210×3iNSP151..F201803-202101

main63343-0D230×2iNSP151..TH..B201410-201702

main63343-0D440×3iNSP151..(D,G,R)..H201807-201910

main63343-0D470×3iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main63343-0D480×3iNSP150,151..I202203-202406

main63343-0D490×3iNSP151..MA201901-202011

63343PAD, ROOF SILENCER, NO.3

main63341-0D420iNCP150..MA201407-201501

main63341-0D430iNCP150..MA201501-201608

main63341-0D760iNSP151..D..G201804-201908

main63341-0D780×2iNSP151..(G,R,V)..G201804-201908

main63341-0D790iNSP151..TH..B201702

main63343-0D240iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main63343-0D300iNSP151..TH..B201410-201702

main63343-0D510iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main63343-0D520iNSP151..F201803-202101

main63343-0D530iNSP151..(D,G,R)..H201807-201910

main63343-0D540iNSP151..MA201901-202011

main63343-0D550iNSP150,151..I202203-202406

66413BSPACER, SIDE RAIL, FRONT RH

main66413-0D230iNSP151..TH..B201304

main66413-0D240iNSP151..MA201310-201812

main66413-0D270iNCP150..TAIW201404-201604

main66413-0D300iNCP15#..C201312-201609

main66413-0D360iNSP150..5F..D..C201801-202108

main66413-0D390iNSP150..5F..G..A;NSP150..5F..GCC..D..A201710-202108

main66413-0D400iNSP151..(D,R)..F201803-202101

main66413-0D410iNSP151..6F..AGT;NSP151..(BZ,GEN)..(D,G,R)..H201807-201910

66414ASPACER, SIDE RAIL, REAR RH

main66414-0D240iNCP15#..PH201304-201606

main66414-0D250iNCP150..MA201310-201608

main66414-0D280iNSP151..TAIW201404-201802

main66414-0D330iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main66414-0D390iNSP150..5F..G..A;NSP150..5F..GCC..D..A201710-202108

main66414-0D400iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

main66414-0D410iNSP151..(D,R)..F201803-202101

main66414-0D450iNSP151..6F..AGT;NSP151..(BZ,GEN)..(D,G,R)..H201807-201910

66423SPACER, SIDE RAIL, FRONT LH

main66423-0D220iNSP151..TH..B201304

main66423-0D230iNSP151..MA201310-201812

main66423-0D260iNCP150..TAIW201404-201604

main66423-0D290iNSP151..TH..G..C201312-201707

main66423-0D330iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

main66423-0D350iNSP150..5F..G..A;NSP150..5F..GCC..D..A201710-202108

main66423-0D370iNSP151..(D,R)..F201803-202101

main66423-0D380iNSP151..6F..AGT;NSP151..(BZ,GEN)..(D,G,R)..H201807-201910

66424SPACER, SIDE RAIL, REAR LH

main66424-0D240iNSP151..TH..B201304

main66424-0D250iNSP151..MA201310-201812

main66424-0D280iNCP150..TAIW201404-201604

main66424-0D330iNSP151..TH..G..C201312-201707

main66424-0D390iNSP150..5F..G..A;NSP150..5F..GCC..D..A201710-202108

main66424-0D400iNSP150..5F..D..C201801-202108

main66424-0D410iNSP151..(D,R)..F201803-202101

main66424-0D450iNSP151..6F..AGT;NSP151..(BZ,GEN)..(D,G,R)..H201807-201910

10 parts on this diagram · 6 diagrams in section
