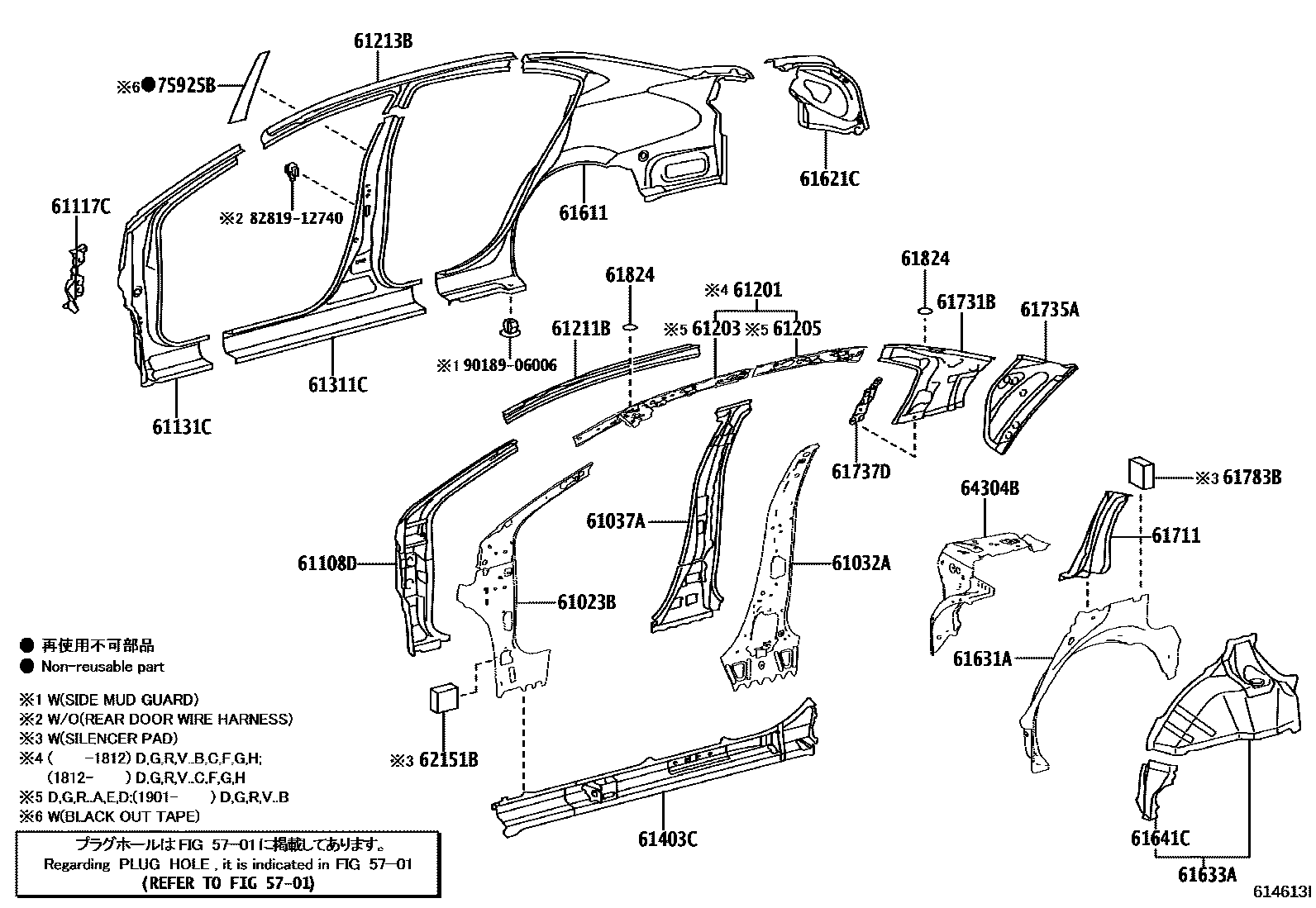

SIDE MEMBER

0001 1RH SIDE 0002 1RH SIDE 0003 1LH SIDE 0007 1LH SIDE 0010 1LH SIDE

5701

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0D170iNSP151..TH..B201304

main61023-0D200iNCP15#..C201312-201609

main61023-0D220iNSP151..TAIW201404-201802

main61023-0D240iNCP15#..PH201407-201606

main61023-0D270iNSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E)201708-202207

main61023-0D280iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main61023-0D290iNSP150,151..D201807-201910

main61023-0D300iNSP151..F201803-202101

main61023-0D310iNSP151..G201804-201908

main61023-0D320iNSP151..H201807-201910

main61023-0D360iNSP150,151..I202003-202406

main61023-0D370iNSP151..MA201901-202011

61032APILLAR SUB-ASSY, NO.1 INNER, RH

main61032-0D100iNCP150..IDN..B201304-201506

main61032-0D130iNCP15#..C201312-201609

main61032-0D160iNSP151..TAIW201404-201802

main61032-0D190iNCP15#..PH201407-201606

main61032-0D210iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main61032-0D220iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main61032-0D230iNSP150,151..D201807-201910

main61032-0D240iNSP151..F201803-202101

main61032-0D250iNSP151..G201804-201908

main61032-0D260iNSP151..H201807-201910

main61032-0D290iNSP150,151..I202003-202406

main61032-0D300iNSP151..MA201901-202011

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-0D470iNSP150,151..I202003-202406

main61037-0D909iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main61037-0D911iNCP150,NSP151..TAIW201404-201802

main61037-0D915iNCP15#,NSP150,151..C201312-201712

main61037-0D916iNSP151..F201803-202101

main61037-0D917iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150,152..(GEN,PH,TH,201708-202207

main61037-0D918iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main61037-0D919iNSP151..G201804-201908

main61037-0D920iNSP151..H201807-201910

61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

main61108-0D120iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main61108-0D150iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main61108-0D170iNCP150,NSP151..TAIW201404-201802

main61108-0D180iNSP150,151..D201807-201910

main61108-0D210iNSP151..G201804-201908

main61108-0D220iNSP151..H201807-201910

main61108-0D230iNSP150,151..I202003-202406

main61108-0D240iNSP151..MA201901-202011

61117CGUSSET, SIDE PANEL TO COWL, RH

main61117-0D030iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main61117-0D050iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main61117-0D060iNCP150,NSP151..TAIW201404-201802

main61117-0D090iNSP151..G201804-201908

main61117-0D100iNSP151..H201807-201910

main61117-0D120iNSP150,151..E201808-201912

61131CPILLAR, FRONT BODY, OUTER RH

main61131-0D170iNCP15#,NSP150,151..B,C201304

main61131-0D200iNSP151..F201708-202101

main61131-0D160iNCP150..4FC..GEN..D201501-201603

EGYPT SPEC

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-0D110iNSP151..TH..B201304

main61201-0D140iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main61201-0D160iNSP151..TAIW201404-201802

main61201-0D180iNCP15#..PH201407-201606

main61201-0D220iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main61201-0D240iNSP151..F201803-202101

main61201-0D250iNSP151..G201804-201908

main61201-0D260iNSP151..H201807-201910

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-0D030iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main61203-0D050iNSP150,151..D201807-201910

main61203-0D090iNSP150,151..I202003-202406

61205RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH

main61205-0D010iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP151..(GCC,TH,VN)..(A,E);NSP150..CVT..GCC..(D,R)..A;NSP150,152..(GEN,TH,VN)..(D,201708-202207

main61205-0D030iNSP150,151..D201807-201910

main61205-0D110iNSP150,151..I202003-202406

61211BRAIL, ROOF SIDE, OUTER REAR RH

main61211-0D140iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main61211-0D170iNCP15#,NSP150,151..C201312-201712

main61211-0D190iNCP150,NSP151..TAIW201404-201802

main61211-0D240iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main61211-0D250iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main61211-0D260iNSP151..MA201901-202011

main61211-0D270iNSP150,151..D201807-201910

main61211-0D280iNSP151..F201803-202101

main61211-0D290iNSP151..G201804-201908

main61211-0D300iNSP151..H201807-201910

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0D100iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)201708-202108

main61213-0D140iNCP15#,NSP150,151..B,C201304

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-0D070iNCP15#,NSP150,151..B,C201304

main61311-0D130iNSP151..F201708-202101

main61311-0D060iNCP150,NSP151..GEN..R201308-201709

LATIN AMERICA SPEC&E-SPORT PACKAGE(FOR LATIN AMERICA)

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0D180iNCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B201304-201701

main61403-0D230iNCP15#,NSP150,151..C201312-201712

main61403-0D240iNCP150,NSP151..MA201310-201701

main61403-0D250iNCP150,NSP151..TAIW201404-201701

main61403-0D270iNCP15#,NSP15#..PH201407-201701

main61403-0D330iNSP151..G201804-201908

main61403-0D340iNSP151..H201807-201910

main61403-0D350iNSP150,151..(GCC,GEN,TH,VN)..B201702

main61403-0D360iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main61403-0D370iNSP151..MA201702-201812

main61403-0D380iNSP150,151..D201807-201910

main61403-0D390iNSP151..F201803-202101

main61403-0D410iNSP150,151..I202003-202406

61611PANEL, QUARTER, RH

main61601-0D230iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main61601-0D260iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150,152..(GEN,PH,TH,201708-202207

main61601-0D290iNCP15#,NSP150,151..C201312-201712

main61601-0D310iNCP150,NSP151..TAIW201404-201802

main61601-0D400iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main61601-0D420iNSP151..F201803-202101

main61601-0D430iNSP151..G201804-201908

main61601-0D440iNSP151..H201807-201910

sub61601-0D490

main61601-0D220iNCP150..4FC..GEN..D201501-201603

EGYPT SPEC

main61601-0D280iNCP15#,NSP150,151..(ATM,CVT)..GCC..R..C201402-201712

E-SPORT PACKAGE

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61063-0D030iNSP151..MA;NCP15#..(GCC,GEN,IDN,MA,PH,TH)..B201304-201812

main61063-0D050iNCP15#,NSP150,151..C201312-201712

main61063-0D060iNCP150,NSP151..TAIW201404-201802

main61063-0D090iNSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)201708-202207

main61063-0D100iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main61063-0D110iNSP151..MA201901-202011

main61063-0D120iNSP151..F201803-202101

main61063-0D130iNSP151..G201804-201908

main61063-0D140iNSP151..H201807-201910

main61063-0D160iNSP150,151..PH..B201701

main61063-0D170iNSP150,151..I202003-202406

main61063-YP010iNSP151..TH..B201701

SPECIAL EDITION

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-K0010iNCP15#..MA,VN201304-201608

main61631-K0040iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61605-0D050iNSP151..F201708-202101

main61605-0D060iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main61605-0D070iNSP150,151..E201808-201912

main61605-0D080iNSP150,151..D201807-201910

main61605-0D120iNSP151..G201804-201908

main61605-0D130iNSP151..H201807-201910

main61605-0D140iNSP150,151..I202003-202406

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0D070iNCP15#..PH201304-201606

main61641-0D090iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main61641-0D130iNSP151..G201804-201908

main61641-0D140iNSP151..H201807-201910

main61641-0D160iNSP150,151..D201807-201910

main61641-0D180iNSP150,151..E201808-201912

61711PANEL, ROOF SIDE, OUTER RH

main61711-0D090iNSP151..H201807-201910

main61711-K0010iNCP15#..C201304-201609

main61711-K0030iNSP151..F201708-202101

61731BPANEL, ROOF SIDE, INNER RH

main61731-0D160iNSP151..H201807-201910

main61731-0D210iNSP150,151..I202003-202406

main61731-K0010iNCP15#..MA,VN201304-201608

main61731-K0060iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)201708-202108

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-0D240iNSP151..H201807-201910

main61735-0D260iNSP150,151..I202003-202406

main61735-K0010iNCP150..IDN..B201304-201506

main61735-K0020iNSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP151..LHD..CVT..GEN..A;NSP151..RHD..(GEN,IND,MA);NSP150..5F..GCC..R..(A,C);NSP151..5F..(GEN,IDN)..(A,C);NSP151..(GC201708-202207

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-0D040iNCP150..IDN..B201304-201506

main61737-0D070iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main61737-0D090iNSP151..F201803-202101

main61737-0D160iNSP151..G201804-201908

main61737-0D170iNSP151..H201807-201910

main61737-0D190iNSP150,151..E201808-201912

61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1

main61783-0D100iNCP150..TAIW..(R,V)201304-201604

RH ONLY

main61783-0D120iNSP151..TH..G..C201312-201707

RH ONLY

main61783-0D150iNSP151..(G,R,V)..G201804-201908

main61783-0D160iNSP151..(G,R,V)..H201807-201910

61824PLATE, NOISE CONTROL, NO.1

main61824-0D020×4iNSP150,151..GEN..(G,R)201304-201709

main61824-0D060×4iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main61824-0D120×2iNSP151..G201804-201908

main61824-0D130×2iNSP151..H201807-201910

main61825-0D020×4iNCP150..IDN..D..B201304-201506

62151BPAD, COWL SIDE SILENCER

main62151-0D110×2iNCP15#..MA,VN201304-201608

main62151-0D140×2iNSP151..TH..G..C201312-201707

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-0D100iNCP15#..(GCC,GEN,TH)..B201304-201603

main64304-0D110iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main64304-0D120iNSP151..TAIW201404-201802

main64304-0D130iNCP15#..PH201407-201606

main64304-0D170iNSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E)201708-202207

main64304-0D180iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main64304-0D190iNSP150,151..D201807-201910

main64304-0D200iNSP151..F201803-202101

main64304-0D210iNSP151..G201804-201908

main64304-0D220iNSP151..H201807-201910

main64304-0D240iNSP150,151..I202003-202406

main64304-0D250iNSP151..MA201901-202011

75925BTAPE, BLACK OUT, NO.3 RH

main75925-0D060iNCP150..IDN..(G,R)..B201304-201506

main75925-0D080iNSP151..F201803-202101

main75925-0D090iNCP150..MA201310-201608

main75925-0D100iNCP15#..PH201307-201606

BLACK OUT TAPE-WITHOUT

main75925-0D110supersedes 75925-0D110iNSP151..R..C;NSP150..(G,R)..C;NSP151..TH..D..C;NSP151..(GCC,IDN)..G..C201312-201712

main75925-0D120iNSP151..H201807-201910

main75925-0D130iNSP151..G201804-201908

8281912740GROMMET, WIRING HARNESS

main82819-12740

9018906006

main90189-06006

30 parts on this diagram · 5 diagrams in section
