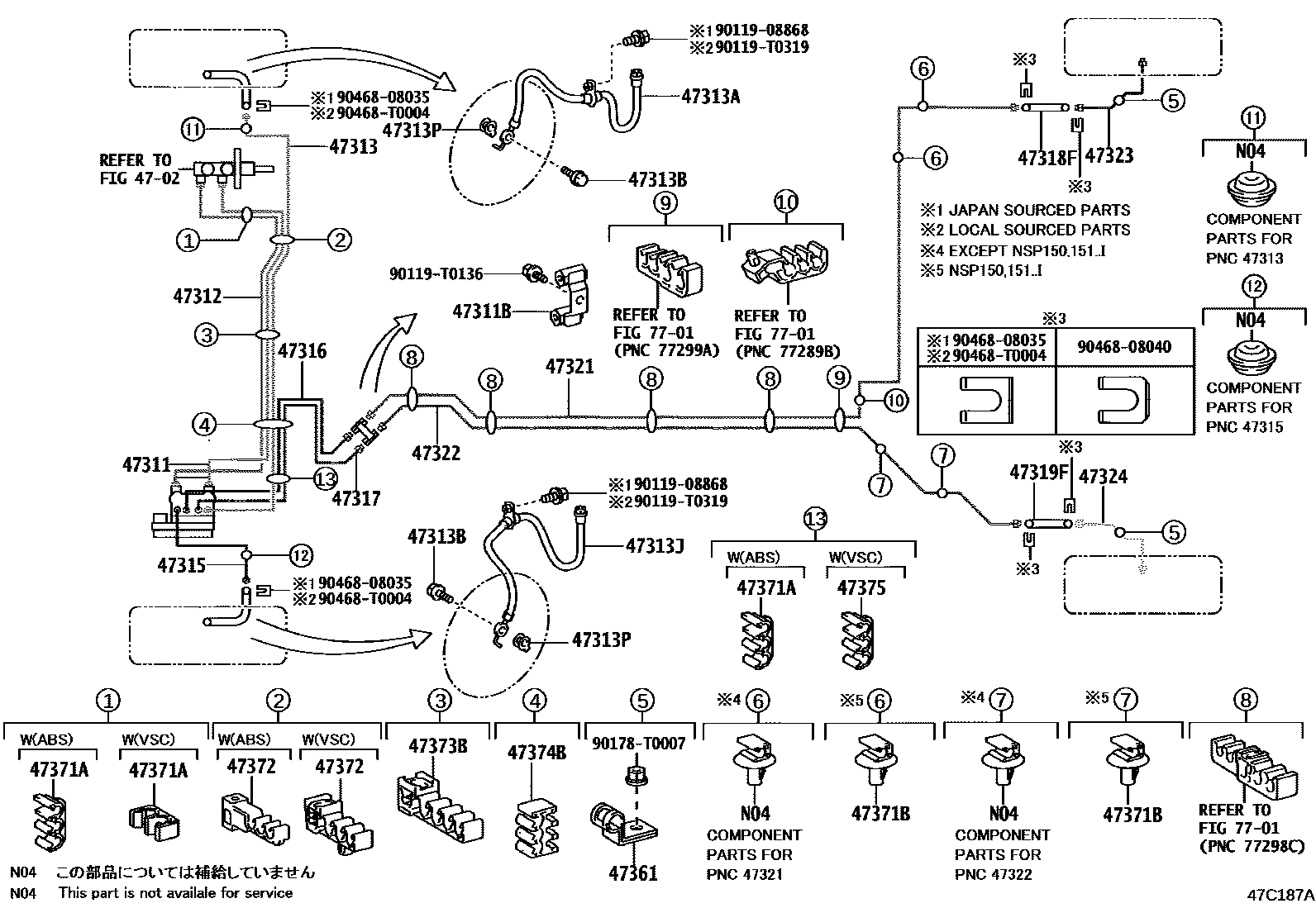

BRAKE TUBE & CLAMP

0001 1W(ABS OR VSC) & REAR DRUM BRA0003 1W(ABS OR VSC) & REAR DISC BRA0005 1BRAKE TUBE, W/O(ABS) 0006 1W(ABS OR VSC) & REAR DRUM BRA0009 1W(ABS OR VSC) & REAR DISC BRA0011 1BRAKE TUBE, W/O(ABS) 0012 1BRAKE TUBE, W(ABS) 0013 1BRAKE TUBE, REAR DRUM BRAKE 0014 1BRAKE TUBE, REAR DISC BRAKE 0015 1BRAKE ACTUATOR 0016 1BRAKE ACTUATOR, W(ABS) 0018 1BRAKE ACTUATOR 0019 1BRAKE ACTUATOR 0020 1BRAKE ACTUATOR 0021 1BRAKE ACTUATOR, W(VSC) 0022 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-0D540iNSP150..5F..G..A201710-202108

main47311-0D550iNCP150..MA201310-201608

main47311-0D560iNCP150..IDN..D..B201304-201506

main47311-0D570iNCP150..VN201308-201608

main47311-0D580iNSP150..VN201403-201807

main47311-0D620iNCP15#..PH..(G,R)201307-201606

main47311-0D630iNCP150..TAIW201404-201604

main47311-0D640iNSP150..PH..D201307-201806

main47311-0D650iNSP151..IDN..G;NSP151..TH..D..C;NSP151..RHD..R..C;NSP151..CVT..D..C201312-201712

main47311-0D660iNCP150..IDN..D..C201312-201609

main47311-0D670iNCP15#..GCC..C201402-201609

main47311-0D780iNSP151..TH..B201604

main47311-0D790iNSP150,151..CVT..GCC..B201604-201712

main47311-0D800iNSP150..5F..GCC..B201604-201712

main47311-0D810iNSP151..CVT..VN201604-201807

main47311-0D830iNSP151..TAIW201605-201802

main47311-0D840iNSP150,151..CVT..GCC..C201801-202207

main47311-0D850iNSP150..5F..R..C201801-202207

main47311-0D870iNSP151..CVT..D..C201801-202108

main47311-0D880iNSP151..F201803-202101

main47311-0DA00iNSP150,151..5F..D201807-201910

main47311-0DA10iNSP150,151..CVT..D201807-201910

main47311-0DA20iNSP151..(D,G,R)..G201804-201908

main47311-0DA30iNSP151..V..G201804-201908

main47311-0DA60iNSP151..6F..H201807-201910

main47311-0DA70iNSP151..CVT..H201807-201910

main47311-0DB00iNSP150,151..CVT..PH201607-201806

main47311-0DB20iNSP151..MA201901-202011

main47311-0DB70iNSP150,151..I202003-202406

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iNSP150,151..GCC..B201304-201712

main90412-10285iNSP152..HTWC;NSP150,151..IND,MA,PH,VN201905-202406

47312TUBE, FRONT BRAKE, NO.2

main47312-0D470iNSP150,151..RHD..CVT..GEN201710-202207

main47312-0D480iNCP150..MA201310-201608

main47312-0D490iNCP150..TH..D..B201304-201603

main47312-0D500iNSP150,151..LHD..5F..GEN201308-201709

main47312-0D510iNSP150..VN201403-201807

main47312-0D550iNSP150,151..5F..PH..(G,R)201307-201806

main47312-0D560iNCP150..TAIW201404-201604

main47312-0D570iNCP151..PH..D201307-201606

main47312-0D580iNCP150..TH..D..C;NCP150..RHD..(G,R)..C201312-201609

main47312-0D590iNSP151..5F..IDN..D201312-201712

main47312-0D600iNCP15#..GCC..C201402-201609

main47312-0D710iNSP151,152..TH..A201708-202207

main47312-0D720iNSP150,151..CVT..GCC..B201604-201712

main47312-0D730iNSP150..5F..GCC..B201604-201712

main47312-0D740iNSP150,151..LHD..CVT..GEN..A201710-202207

main47312-0D760iNSP151..TAIW201605-201802

main47312-0D770iNSP150,151..CVT..GCC..C201801-202207

main47312-0D780iNSP150..5F..R..C201801-202207

main47312-0D800iNSP151..5F..D..C;NSP151..IDN..(G,R)201801-202207

main47312-0D810iNSP151..F201803-202101

main47312-0D830iNSP150,151..5F..D201807-201910

main47312-0D840iNSP150,151..CVT..D201807-201910

main47312-0D850iNSP151..(D,G,R)..G201804-201908

main47312-0D860iNSP151..V..G201804-201908

main47312-0D890iNSP151..6F..H201807-201910

main47312-0DA00iNSP151..CVT..H201807-201910

main47312-0DA30iNSP150,151..CVT..PH201607-201806

main47312-0DA50iNSP151..MA201901-202011

main47312-0DB00iNSP150,151..I202003-202406

47313TUBE, FRONT BRAKE, NO.3

main47313-0D460iNCP150..5F..TH..D..B; NCP151..RHD;NCP150..TH..(G,R,V)..B201304-201603

BRUNEI SPEC&ABS-WITH(W/BRAKE ASSIST)

main47313-0D470iNCP150..MA201310-201608

main47313-0D480iNCP150..IDN..D..B201304-201506

main47313-0D490iNCP15#..LHD..(GCC,GEN)..B201308-201603

main47313-0D500iNCP151..VN201403-201608

main47313-0D540iNSP150,151..5F..D201807-201910

main47313-0D550iNCP150..TAIW201404-201604

main47313-0D560iNSP150..PH..D201307-201806

main47313-0D570iNSP151..IDN..G;NSP151..TH..D..C;NSP151..RHD..R..C;NSP151..CVT..D..C201312-201712

main47313-0D580iNCP150..IDN..D..C201312-201609

main47313-0D590iNCP15#..GCC..C201402-201609

main47313-0D690iNSP151..TH..B201604

main47313-0D700iNSP150,151..CVT..GCC..B201604-201712

main47313-0D710iNSP151..CVT..VN201604-201807

main47313-0D730iNSP151..TAIW201605-201802

main47313-0D740iNSP150,151..CVT..GCC..C201801-202207

main47313-0D760iNSP151..5F..D..C;NSP151..IDN..(G,R)201801-202207

main47313-0D770iNSP151..F201803-202101

main47313-0D790iNSP150,151..CVT..D201807-201910

main47313-0D800iNSP151..(D,G,R)..G201804-201908

main47313-0D810iNSP151..V..G201804-201908

main47313-0D820iNSP151..6F..H201807-201910

main47313-0D840iNSP151..CVT..H201807-201910

main47313-0D850iNSP150,151..CVT..PH201607-201806

main47313-0D870iNSP151..MA201901-202011

main47313-0DA00iNSP150,151..I202003-202406

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2081iNCP15#..C201304-201609

main90947-T2119iNSP151..6F..H201807-201910

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNSP151..MA201304-201812

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2082iNSP152..HTWC;NSP150..D,E,I;NSP151..5F..(D,E);NSP151..RHD..MTM..(B,G,I);NSP151..CVT..(AGT,BZ,IND,MA,PKN);NSP151..CVT..(GEN,PH,VN)..(D,E,H)201708-202406

main90947-T2120iNSP151..6F..H201807-201910

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iNCP150..IDN..B201304-201506

47315TUBE, FRONT BRAKE, NO.5

main47315-0D470iNSP150..5F..G..A201710-202108

main47315-0D480iNCP150..MA201310-201608

main47315-0D490iNSP150..VN201304-201807

main47315-0D500iNSP150..5F..GCC..R..A;NSP150,151..LHD..5F..(GEN,VN)..(A,E)201710-202207

main47315-0D520iNSP150,151..5F..D201807-201910

main47315-0D530iNCP150..TAIW201404-201604

main47315-0D540iNSP150..PH..D201307-201806

main47315-0D550iNSP151..IDN..G;NSP151..TH..D..C;NSP151..RHD..R..C;NSP151..CVT..D..C201312-201712

main47315-0D560iNSP151..5F..IDN..D201312-201712

main47315-0D570iNSP150..5F..C201402-201712

main47315-0D670iNSP151,152..TH..A201708-202207

main47315-0D680iNSP150,151..CVT..GCC..B201604-201712

main47315-0D690iNSP150,151..LHD..CVT..GEN..A201710-202207

main47315-0D710iNSP151..TAIW201605-201802

main47315-0D720iNSP150,151..CVT..GCC..C201610-201712

main47315-0D740iNSP151..5F..D..C;NSP151..IDN..(G,R)201801-202207

main47315-0D750iNSP151..F201803-202101

main47315-0D770iNSP150,151..CVT..D201807-201910

main47315-0D780iNSP151..(D,G,R)..G201804-201908

main47315-0D790iNSP151..V..G201804-201908

main47315-0D800iNSP151..6F..H201807-201910

main47315-0D820iNSP151..CVT..H201807-201910

main47315-0D830iNSP150,151..CVT..PH201607-201806

main47315-0D850iNSP151..MA201608-201812

main47315-0D880iNSP150,151..I202003-202406

47316TUBE, FRONT BRAKE, NO.6

main47316-0D360iNSP150..5F..G..A201710-202108

main47316-0D370iNCP150..MA201310-201608

main47316-0D380iNCP150..TH..D..B201304-201603

main47316-0D390iNCP150..VN201308-201608

main47316-0D430iNSP150,151..5F..PH..(G,R)201307-201806

main47316-0D440iNCP150..TAIW201404-201604

main47316-0D450iNSP150..PH..D201307-201806

main47316-0D460iNSP150..VN201403-201807

main47316-0D470iNSP151..TH..G..C201312-201707

main47316-0D480iNCP150..IDN..D..C201312-201609

main47316-0D490iNSP150..5F..C201402-201712

main47316-0D580iNSP151,152..TH..A201708-202207

main47316-0D590iNSP150,151..CVT..GCC..B201604-201712

main47316-0D600iNSP151..CVT..VN201604-201807

main47316-0D620iNSP151..TAIW201605-201802

main47316-0D630iNSP150,151..CVT..GCC..C201610-201712

main47316-0D650iNSP151..CVT..D..C201801-202108

main47316-0D660iNSP151..F201803-202101

main47316-0D680iNSP150,151..CVT..D201807-201910

main47316-0D690iNSP151..(D,G,R)..G201804-201908

main47316-0D700iNSP151..V..G201804-201908

main47316-0D710iNSP151..6F..H201807-201910

main47316-0D730iNSP151..CVT..H201807-201910

main47316-0D740iNSP150,151..CVT..PH201607-201806

main47316-0D760iNSP151..MA201608-201812

main47316-0D800iNSP150,151..I202003-202406

47317TUBE, FRONT BRAKE, NO.7

main47317-0D360iNCP150..5F..TH..D..B; NCP151..RHD;NCP150..TH..(G,R,V)..B201304-201603

BRUNEI SPEC&ABS-WITH(W/BRAKE ASSIST)

main47317-0D370iNCP150..MA201310-201608

main47317-0D380iNCP150..TH..D..B201304-201603

main47317-0D390iNCP15#..LHD..(GCC,GEN)..B201308-201603

main47317-0D400iNSP150..VN201403-201807

main47317-0D430iNSP150,151..5F..PH..(G,R)201307-201806

main47317-0D440iNCP150..TAIW201404-201604

main47317-0D450iNSP150..PH..D201307-201806

main47317-0D460iNCP150..TH..D..C;NCP150..RHD..(G,R)..C201312-201609

main47317-0D470iNSP151..5F..IDN..D201312-201712

main47317-0D480iNCP15#..GCC..C201402-201609

main47317-0D580iNSP151..TH..B201604

main47317-0D590iNSP150,151..CVT..GCC..B201604-201712

main47317-0D600iNSP151..CVT..VN201604-201807

main47317-0D620iNSP151..TAIW201605-201802

main47317-0D630iNSP150,151..CVT..GCC..C201801-202207

main47317-0D650iNSP151..CVT..D..C201801-202108

main47317-0D660iNSP151..F201803-202101

main47317-0D680iNSP150,151..CVT..D201807-201910

main47317-0D690iNSP151..(D,G,R)..G201804-201908

main47317-0D700iNSP151..V..G201804-201908

main47317-0D710iNSP151..6F..H201807-201910

main47317-0D730iNSP151..CVT..H201807-201910

main47317-0D740iNSP150,151..CVT..PH201607-201806

main47317-0D760iNSP151..MA201901-202011

main47317-0D790iNSP150,151..I202003-202406

47318TUBE, FRONT BRAKE, NO.8

main47318-0D010iNCP150..IDN..D..B201304-201506

main47318-0D020iNSP150..PH..D201307-201806

main47318-0D030iNCP150..IDN..D..C201312-201609

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2083iNSP151..MA201304-201812

main90947-T2151iNSP151..TAIW201704-201802

47319TUBE, FRONT BRAKE, NO.9

main47319-0D010iNSP150..VN201304-201807

main47319-0D020iNCP151..PH..D201307-201606

main47319-0D030iNSP151..5F..IDN..D201312-201712

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2084iNCP15#..C201304-201609

main90947-T2152iNSP151..TAIW201704-201802

47321TUBE, REAR BRAKE, NO.1

main47321-0D360iNCP15#..VN201304-201608

main47321-0D370iNSP151..MA201310-201812

main47321-0D390iNSP150,151..PH201307-201806

main47321-0D400iNSP151..F201803-202101

main47321-0D410iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main47321-0D450iNSP151..G201804-201908

main47321-0D460iNSP151..H201807-201910

main47321-0D470iNSP150,151..I202003-202406

47322TUBE, REAR BRAKE, NO.2

main47322-0D360iNSP150,151..GCC..B201304-201712

main47322-0D370iNSP151..MA201901-202011

main47322-0D390iNSP150,151..D201807-201910

main47322-0D400iNSP151..TAIW201404-201802

main47322-0D410iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main47322-0D450iNSP151..G201804-201908

main47322-0D460iNSP151..H201807-201910

main47322-0D490iNSP150,151..I202003-202406

47323TUBE, REAR BRAKE, NO.3

main47323-0D220iNSP151..GEN;NSP150..RHD..CVT;NSP150..LHD..GEN..(D,R)201304-201709

main47323-0D230iNSP151..MA..(D,R)201310-201812

main47323-0D240iNSP150..5F..G..A201708-202108

main47323-0D250iNSP151..MA..(G,V)201310-201812

main47323-0D270iNCP151..PH201307-201606

main47323-0D280iNSP151..F201803-202101

main47323-0D290iNSP151..D201807-201910

main47323-0D310supersedes 47323-0D320iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main47323-0D320iNSP151..TH..G..C201312-201707

main47323-0D350iNSP151..(D,R)..G201804-201908

main47323-0D360iNSP151..(G,V)..G201804-201908

main47323-0D370iNSP151..H201807-201910

main47323-0D380iNSP150,151..I202003-202406

47324TUBE, REAR BRAKE, NO.4

main47324-0D220iNCP151..GCC..G..B;NCP151..RHD..4FC..G;NCP150..(GCC,GEN)..G..B;NCP15#..(GCC,GEN,TH)..(D,R)..B201304-201603

main47324-0D230iNCP150..MA..(D,R)201310-201608

main47324-0D240iNSP150..5F..G;NSP150..LHD..GEN..G201304-201709

main47324-0D250iNSP151..MA..(G,V)201901-202011

main47324-0D270iNSP150..PH201307-201806

main47324-0D280iNSP151..TAIW201404-201802

main47324-0D290iNSP151..PH201307-201806

main47324-0D310supersedes 47324-0D320iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

main47324-0D320iNSP151..CVT..IDN..R; NSP151..IDN..G201801-202207

BRUNEI SPEC

main47324-0D350iNSP151..(D,R)..G201804-201908

main47324-0D360iNSP151..(G,V)..G201804-201908

main47324-0D370iNSP151..H201807-201910

main47324-0D380iNSP150,151..I202003-202406

47361CLAMP, TUBE

main90461-10843×2iNSP151..H201807-201910

main90461-C0002×2iNSP151..TAIW201404-201802

main90461-T0006×2iNCP15#..MA,VN201304-201608

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00857iNSP150,151..CVT..PH201604-201806

main90464-00868×2iNCP150..RHD..C201304-201609

main90464-00899iNSP151..TH..A;NSP152..HTWCB;NSP151..5F..IDN;NSP151..CVT..IDN..(G,R)201708-202207

main90949-01972iNSP151..(D,G,R)..G201804-201908

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D17×4iNSP150,151..I202003-202406

47372CLAMP, BRAKE TUBE, NO.2

main90464-00925iNSP150..D,E;NSP151..GEN..H;NSP150..GCC..(G,R);NSP150..CVT..GCC..D;NSP151..(AGT,BZ,GCC,PH,VN)..(A,C,D,E,H)201801-202207

main90949-01969iNSP150,151..LHD..GEN201307-201709

main90949-01D02iNSP150..RHD201304-201709

main90949-01D84iNSP151..TH..A;NSP152..HTWCB;NSP151..5F..IDN;NSP151..CVT..IDN..(G,R)201708-202207

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D18×2iNSP151..F201710-202101

main90949-01D83iNSP150..RHD201304-201709

main90949-01D85iNSP151..MA201604-201812

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00883iNSP150..PH..D201307-201806

main90464-00925iNSP151..TH..B201604

main90949-01969iNSP150..RHD201304-201709

47375CLAMP, BRAKE TUBE, NO.5

main90464-00868iNSP151..MA201604-201812

main90464-00883iNCP150..IDN..D..C201304-201609

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

90119T0136

main90119-T0136

90119T0319

main90119-T0319

90178T0007

main90178-T0007

9046808035

main90468-08035

9046808040

main90468-08040

90468T0004

main90468-T0004

35 parts on this diagram · 16 diagrams in section
