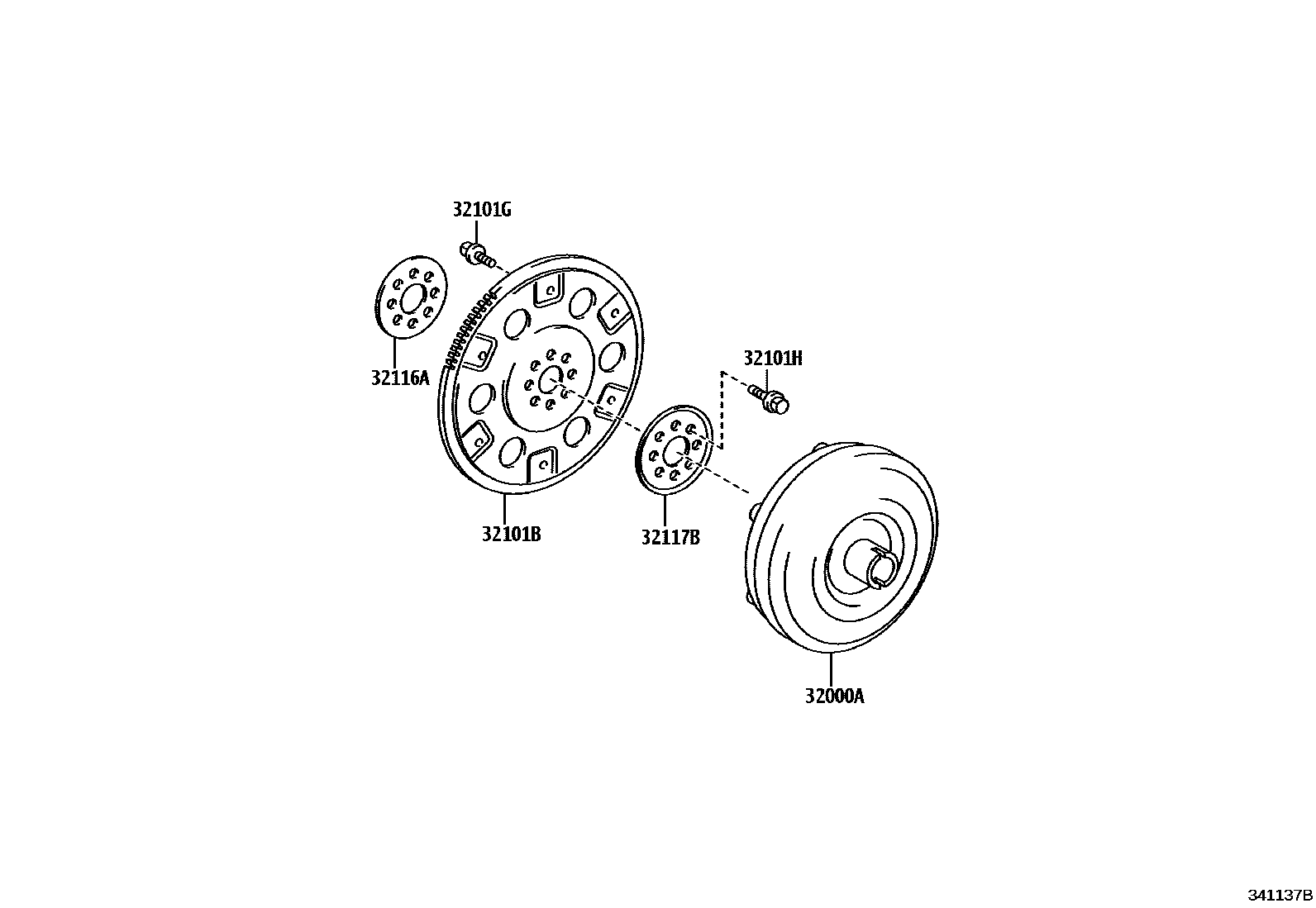

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K312,K411 0002 1K412

32000ACONVERTER ASSY, TORQUE

main32000-52160iNSP152..HTWC;NSP150..CVT..(D,I)201708-202406

main32000-52190iNSP151..CVT..H201902-201904

AISIN AW:REFER 34-01

main32000-52191iNSP151..CVT..H201904-201910

AISIN AW:REFER 34-01

main32000-52200iNSP151..CVT..(B,C)201604-201905

main32000-52201iNSP151..CVT..(AGT,BZ,GEN,IND,MA,PH,PKN,VN)..(B,D,E,G,H,I)201906-202406

TMH:REFER 34-01

main32000-52240iNSP152201911-202207

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0D040iNSP151..B202101-202107

main32101-52090iNSP152201911-202207

main32111-52110iNSP150..CVT..(A,C,I);NSP151..CVT..(A,F,I);NSP151..CVT..(GCC,IDN)..C201708-202101

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNSP150,151..CVT..(B,C)201604

*8-1.25PX12-8.4,BLACK

main90119-08498×5iNSP152..HTWC;NSP150..CVT..(D,I);NSP151..CVT..(AGT,BZ,IND,MA,PKN);NSP151..CVT..(GEN,PH,VN)..(D,E,H)201708-202406

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iNSP150,151..CVT..(B,C)201604

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNSP150,151..CVT..(B,C)201604

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNSP150,151..CVT..(B,C)201604

6 parts on this diagram · 2 diagrams in section
