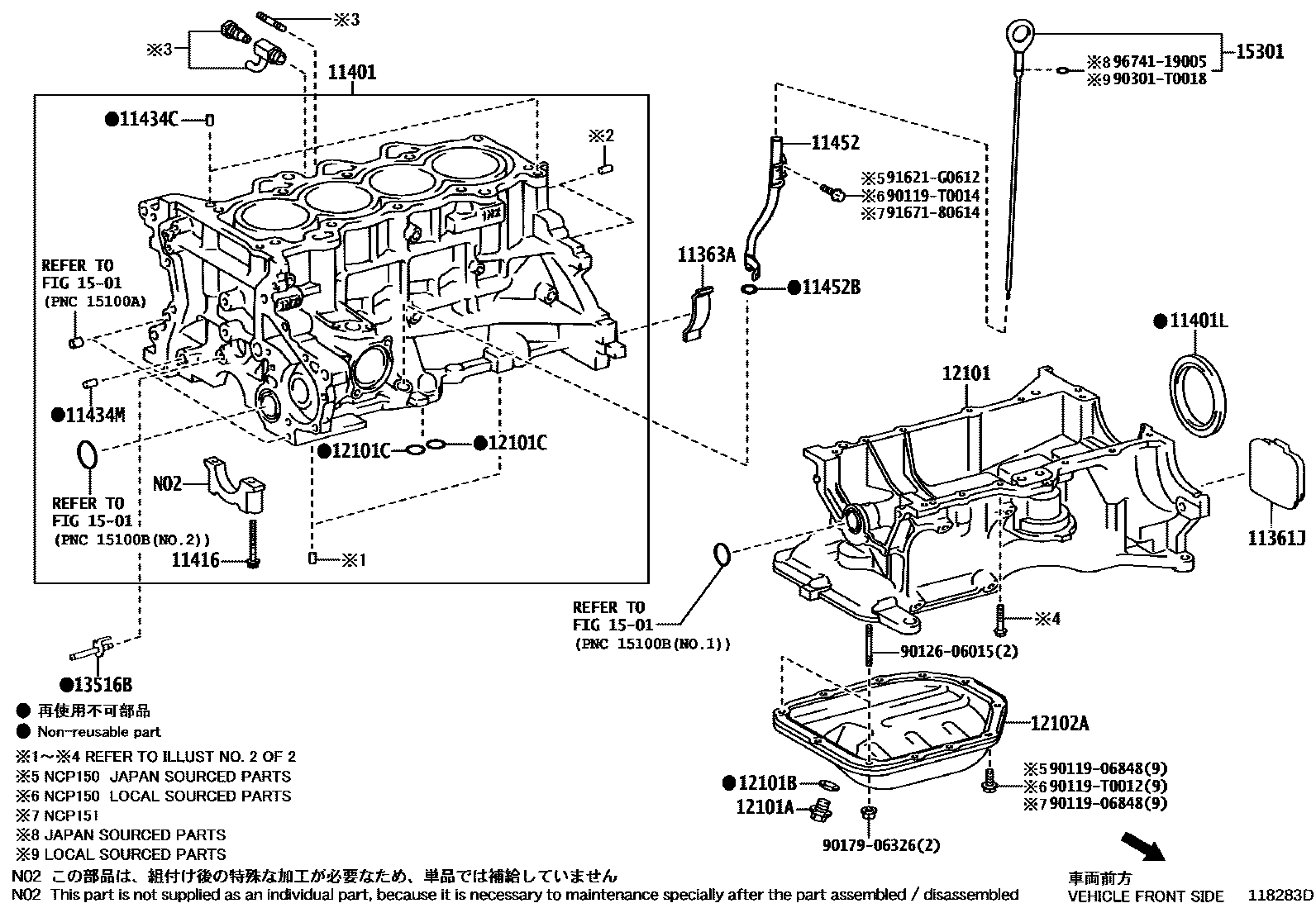

CYLINDER BLOCK

0001 1 0002 1 0005 1 0006 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-0M010i1NZFE,2NZFE..NCP15#..PH201312-201609

(L)

main11361-21011i1NZFE..NCP150..IDN..B201304-201608

(J)

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-0M010i1NZFE..NCP150..IDN..B201312-201609

(L)

main11363-0Y020i1NRFE,2NRFE..NSP150,151..PH201604-202406

main11363-0Y040i2NR#..NSP151..H201807-201910

main11363-21010i1NZFE,2NZFE..NCP15#..C;1NZFE,2NZFE..NCP15#..MA,VN201304-201608

(J)

11401BLOCK SUB-ASSY, CYLINDER

main11401-29847i2NZFE..NCP151201307-201512

main11401-29848i2NZFE..NCP151..(GCC,GEN)..B201512-201609

main11401-29858i1NZFE..NCP150..IDN..B201304-201512

main11401-80881i1NZFE..NCP150..MA,VN201512-201609

main11410-09700i2NRFE..NSP151..PH201604-202207

*264

main11410-09700i2NRFE..NSP151..I202003-202406

main11410-09710i1NRFE..NSP150..I202003-202406

main11410-09710i1NRFE..NSP150..GEN201604-202207

*264

main11410-09725i2NR#..NSP151..H201807-201910

(L)

main11410-09740i2NRFE..NSP151..PH201607-202207

*230 OR *432

main11410-09750i1NRFE..NSP150..GCC201607-202207

*230 OR *432

main11410-09760i3NR#..NSP152201708-202207

main11410-49095i2NR#..NSP151..H201807-201910

(J)

main11410-B9050i2NRFE..NSP151..MA201609-202011

*419

11401LSEAL, ENGINE REAR OIL

main90311-75019i1NZFE..NCP150..IDN..C;1NZFE..NCP150..GCC,GEN,MA,PH,TH,VN201304-201603

(J)

main90311-75019i2NZFE..NCP151201307-201604

main90311-75022i1NZFE..NCP150..PH201604-201609

(J)

main90311-T0033i1NZFE..NCP150..MA,VN201304-201609

(L)

main90311-T0073i2NRFE..NSP151..MA201607-202207

*230 OR *432

main90311-T0074i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201604-202207

*264

main90311-T0074i2NRFE..NSP151..MA201609-202011

*419

main90311-T0074i1NRFE,2NR#..NSP150,151..H,I201807-202406

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02125i1NZFE..NCP150..IDN..B201304-201609

main90910-02175i2NR#..NSP151..H201807-201910

(J)

main90910-T2013i2NRFE..NSP151..TH..G..C201607-201812

*230 OR *432

main90910-T2013i1NRFE,2NRFE..NSP150,151..GEN201604-201812

*264

main90910-T2013i2NRFE..NSP151..MA201609-202011

*419

main90910-T2013i2NR#..NSP151..H201807-201910

(L)

main90910-T2013i2NRFE..NSP151..F201708-202207

*230 OR *432,*264

main90910-T2013i3NRFE..NSP152;1NRFE,2NRFE..NSP150,151..I201708-202406

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i2NZFE..NCP151..C201307-201609

L=18,OD=8

main90250-08120i1NZFE..NCP150..IDN..B201304-201604

L=18,OD=8,(J)

main90250-T0007i1NZFE..NCP150..IDN..B201304-201609

L=18,OD=8,(L)

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i1NZFE..NCP150..IDN..B201304-201604

(J)

main90250-10030i2NZFE..NCP151..C201307-201609

main90250-T0019i1NZFE..NCP150..C201304-201609

(L)

11452GUIDE, OIL LEVEL GAGE

main11452-0M010i1NZFE..NCP150..IDN..B201304-201609

(L)

main11452-0M020i1NZFE..NCP150..TAIW201404-201604

(L)

main11452-0Y020i1NRFE,2NRFE..NSP150,151..PH201604-202207

*264

main11452-0Y020i2NRFE..NSP151..MA201609-202011

*419

main11452-0Y020i1NRFE,2NR#..NSP150,151..H,I201807-202406

main11452-0Y030i2NRFE..NSP151..TH..B201607-202207

*230 OR *432

main11452-0Y050i3NRFE..NSP152201708-201910

main11452-21030i1NZFE..NCP150..MA,VN201304-201609

(J)

main11452-21030i2NZFE..NCP151..PH201307-201609

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main9004A-30058i2NRFE..NSP151..MA201609-202011

*419

main90301-T0025i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201607-202207

*230 OR *432

main90301-T0025i3NRFE..NSP152201708-201910

main90301-T0025i1NZFE..NCP150..IDN..B201304-201609

(L)

main90301-T0060i1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G201604-202207

*264

main90301-T0060i1NRFE,2NR#..NSP150,151..H,I201807-202406

main96721-19010i1NZFE..NCP150..TAIW201307-201609

main96721-19010i1NZFE..NCP150..IDN..B201304-201609

(J)

12101PAN SUB-ASSY, OIL

main12101-0Y040i2NRFE..NSP151..GEN;1NRFE..NSP150..5F..GEN201604-202207

*264

main12101-0Y040i2NRFE..NSP151..MA201609-202011

*419

main12101-0Y040i2NRFE..NSP151..I;1NRFE..NSP150..5F..I202003-202301

main12101-0Y060i2NR#..NSP151..H201807-201910

main12101-0Y070i2NRFE..NSP151..GEN;1NRFE..NSP150..5F..GEN201607-202207

*230 OR *432

main12101-0Y080i1NRFE..NSP150..CVT..(A,C,D)201604-202207

*264

main12101-0Y080i1NRFE..NSP150..CVT..I202003-202301

main12101-0Y090i1NRFE..NSP150..CVT..PH201607-202207

*230 OR *432

main12101-0Y150i2NRFE..NSP151..I;1NRFE..NSP150..5F..I202302-202406

main12101-0Y160i1NRFE..NSP150..CVT..I202302-202406

main12111-0M010i1NZFE..NCP150..C201304-201609

(L)

main12111-21033i1NZFE..NCP150..MA,VN201304-201609

(J)

main12111-21033i2NZFE..NCP151..PH201307-201609

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1NZFE..NCP150..IDN..B201304-201609

main90341-12032i1NRFE,2NRFE..NSP150,151..PH201607-202207

*230 OR *432

main90341-12032i2NR#..NSP151..H201807-201910

main90341-T0017i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201604-202207

*264

main90341-T0017i1NRFE,2NRFE..NSP150,151..I202003-202406

main90341-T0017i2NRFE..NSP151..MA201609-202011

*419

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1NZFE..NCP150..IDN..B201304-201910

main90430-T0024i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE201607-202207

*230 OR *432

main90430-T0024i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE201604-202207

*264

main90430-T0024i1NRFE,2NRFE..NSP150,151..I201609-202406

main90430-T0024i2NRFE..NSP151..MA201901-202011

*419

main90430-T0024i2NRFE..NSP151..F201708-202108

*230 OR *432,*264

12101CRING, O(FOR OIL PAN)

main90301-T0041i1NZFE..NCP150..MA,VN201304-201609

(L)

main90301-T0054i2NRFE..NSP151..MA201607-202207

*230 OR *432,NO.1

main90301-T0055i1NRFE,2NRFE..NSP150,151..VN201604-202207

*264,NO.1

main90301-T0055i2NRFE..NSP151..MA201609-202011

*419,NO.2

main90301-T0055i2NR#..NSP151..H201807-201910

NO.1:REFER ILLUST.

main90301-T0055i1NRFE,2NRFE..NSP150,151..I202003-202406

NO.1

main90301-T0056i2NRFE..NSP151..TAIW201607-202207

*230 OR *432,NO.2

main90301-T0057i1NRFE,2NRFE..NSP150,151..I202003-202406

NO.2

main90301-T0057i1NRFE,2NRFE..NSP150,151..VN201604-202207

*264,NO.2

main90301-T0057i2NRFE..NSP151..MA201609-202011

*419,NO.1

main90301-T0057i2NR#..NSP151..H201807-201910

NO.2:REFER ILLUST.

main96722-24020i2NZFE..NCP151..C201307-201609

main96722-24020i1NZFE..NCP150..IDN..B201304-201604

(J)

12102APAN SUB-ASSY, OIL, NO.2

main12102-0M010i1NZFE..NCP150..PH201304-201609

(L)

main12102-21010i2NZFE..NCP151..VN201307-201609

main12102-21010i1NZFE..NCP150..IDN..B201304-201604

(J)

13516BJET, OIL

main13516-21010i1NZFE,2NZFE..NCP15#201304-201401

main13516-21011i1NZFE,2NZFE..NCP15#..MA,VN201401-201609

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0M010i1NZFE..NCP150..PH201304-201609

main15301-0Y010i2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..5F..(GEN,IDN)..(A,C);2NRFE..NSP151..(GCC,PH,TH,VN).201604-202207

*264

main15301-0Y010i2NRFE..NSP151..MA201609-202011

*419

main15301-0Y010i2NRFE..NSP151..I;1NRFE..NSP150..5F..I202003-202406

main15301-0Y040i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201607-202207

*230 OR *432

main15301-0Y070i1NRFE..NSP150..CVT..(A,C,D)201607-202207

*230 OR *432

main15301-0Y070i1NRFE..NSP150..CVT..PH201604-202207

*264

main15301-0Y070i1NRFE,3NRFE..NSP150,152..CVT..(PKN,TH)201708-202406

main15301-0Y080i2NR#..NSP151..H201807-201910

main15301-21060i2NZFE..NCP151..(GCC,GEN)..B201307-201609

9011906848

main90119-06848

90119T0012

main90119-T0012

90119T0014

main90119-T0014

9012606015

main90126-06015

9017906326

main90179-06326

90301T0018

main90301-T0018

91621G0612

main91621-G0612

9167180614

main91671-80614

9674119005

main96741-19005

26 parts on this diagram · 4 diagrams in section
