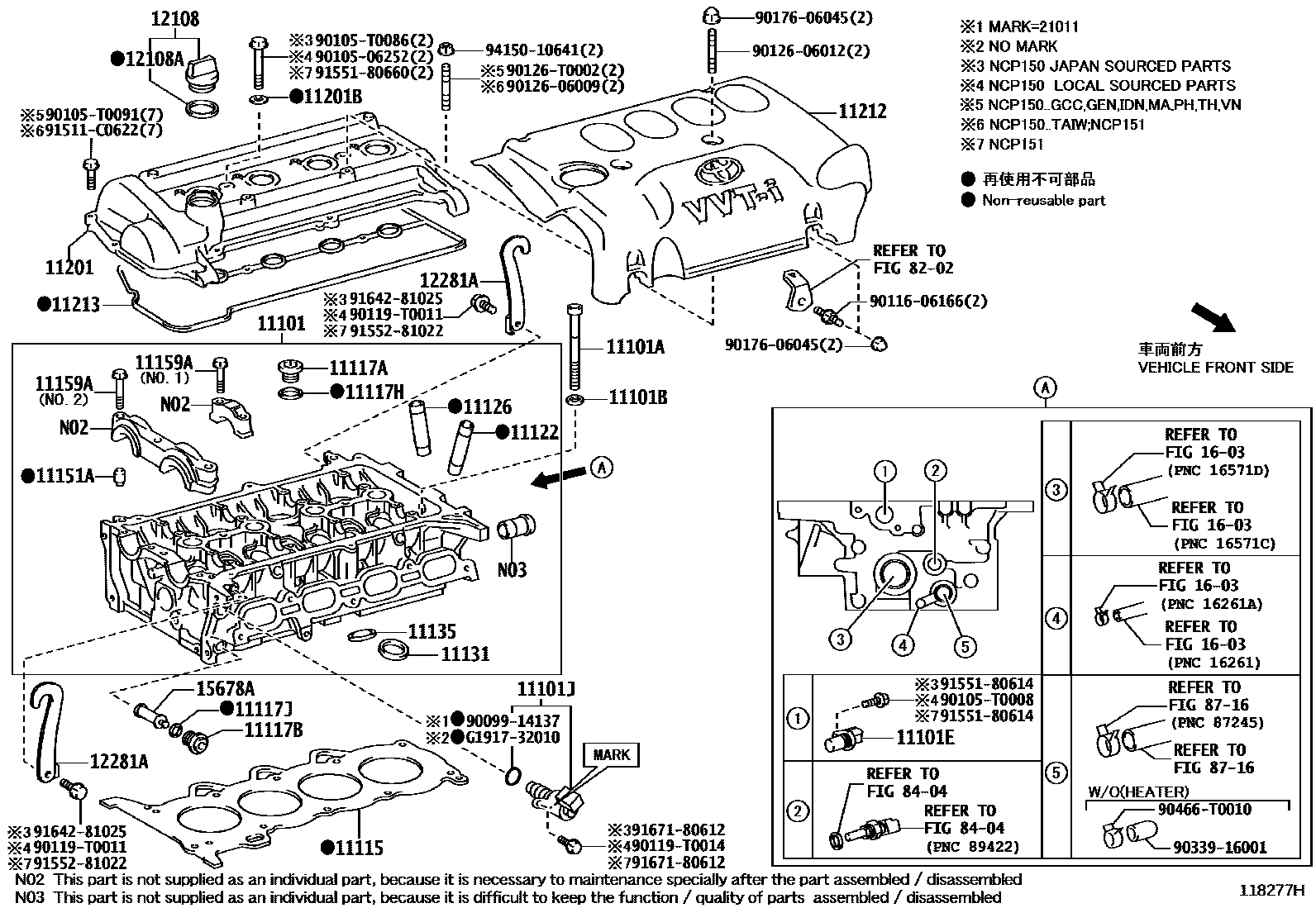

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11101HEAD SUB-ASSY, CYLINDER

main11101-09570i2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C)201604-201812

*264

main11101-09580i2NRFE..NSP151..TH..B201604-202104

*264

main11101-09595i2NR#..NSP151..H201807-201910

main11101-09610i2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C)201607-201812

*230 OR *432

main11101-09620i2NRFE..NSP151..TH..B201607-202002

*230 OR *432

main11101-09630i3NRFE..NSP152201708-201910

main11101-09830i3NRFKE..NSP152201911-202207

main11101-09840i2NRFE..NSP151..B202104-202207

*264

main11101-09850i2NRFE..NSP151..CVT..D..C202104-202108

*264

main11101-09860i2NRFE..NSP151..TH..B202002

*230 OR *432

main11101-21034i2NZFE..NCP151;1NZFE..NCP150..G,R,V;1NZFE..NCP150..(GEN,MA,TAIW,TH)..D201304-201609

main11101-21101i1NZFE..NCP150..IDN..D201304-201609

main11101-B9641i2NRFE..NSP151..MA202005-202011

*419

main11101-B9650i2NRFE..NSP151..MA201609-201810

*419 TYPE A:REF ILL.

main11101-B9670i2NRFE..NSP151..MA201810-201812

*419 TYPE B:REF ILL.

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02170×10i1NZFE,2NZFE..NCP15#201304-201609

main90910-T2012×10i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..5F..(GEN,IDN)..(A,C);2NRFE..NSP151..(GCC,PH,TH,VN)..(A,D,E);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E); 3NRFKE..NSP152201708-202207

*230 OR *432,*264

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024×10i1NZFE,2NZFE..NCP15#201304-201609

main90201-10344×10i2NRFE..NSP151..MA201609-201812

*419

11101ESENSOR, CAM POSITION

main90919-05024i1NZFE..NCP150..IDN..B201304-201506

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-0Y050i1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..(GCC,IDN)..G..C; 1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G201604-201712

*230 OR *432,NO.1; *264,NO.1

main15330-0Y060i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..5F..(GEN,IDN)..(A,C);2NRFE..NSP151..(GCC,PH,TH,VN)..(A,D,E);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E); 1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..5F..(GEN,IDN)..(A,C);2NRFE..NSP151..(GCC,PH,TH,VN)..(A,D,E);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)201708-202207

*230 OR *432,NO.2; *264,NO.2

main15330-0Y090i2NR#..NSP151..H201807-201910

NO.1:REFER ILLUST.

main15330-0Y100i2NR#..NSP151..H201807-201910

NO.2:REFER ILLUST.

main15330-21011i1NZFE,2NZFE..NCP15#..MA,VN201304-201608

11115GASKET, CYLINDER HEAD

main11115-0Y030i2NRFE..NSP151..MA201609-201812

*419

main11115-0Y040i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..5F..(GEN,IDN)..(A,C);2NRFE..NSP151..(GCC,PH,TH,VN)..(A,D,E);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)201708-202207

*230 OR *432

main11115-0Y070i3NRFKE..NSP152201911-202207

main11115-21090i1NZFE,2NZFE..NCP15#201304-201503

main11115-21091i1NZFE,2NZFE..NCP15#201504-201609

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-20002i1NZFE,2NZFE..NCP15#..MA,VN201304-201608

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZFE..NCP150..IDN..B201304-201506

(J)

main90341-T0012i1NZFE..NCP150..IDN..B201304-201506

(L)

11117HGASKET(FOR WATER HOLE)

main90430-20004i1NZFE,2NZFE..NCP15#..MA,VN201304-201608

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZFE,2NZFE..NCP15#..PH201304-201606

11122BUSH, INTAKE VALVE GUIDE

main11122-21010×8i1NZFE,2NZFE..NCP15#..PH201304-201606

STD

main11123-21010×8i1NZFE,2NZFE..NCP15#..MA,VN201304-201608

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010×8i1NZFE..NCP150..IDN..B201304-201506

STD

main11123-21010×8i1NZFE..NCP150..IDN..B201304-201506

O/S 0.05

11131SEAT, INTAKE VALVE

main11131-0Y030×16i1NRFE,2NRFE..NSP150,151..I202003-202406

STD

main11131-0Y060×8i2NRFE..NSP151..TH..B201607

STD,*230 OR *432

main11131-0Y070×8i2NRFE..NSP151..TH..B201604-202207

STD,*264

main11131-0Y080×8i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..5F..(GEN,IDN)..(A,C);2NRFE..NSP151..(GCC,PH,TH,VN)..(A,D,E);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E); 3NR#..NSP152201708-202207

STD; STD,*230 OR *432

main11131-21020×8i2NZFE..NCP151..C;2NZFE..NCP151..PH,VN201304-201603

STD

main11131-21021×8i1NZFE,2NZFE..NCP15#201604-201609

STD

main11131-47050×8i2NR#..NSP151..H201807-201910

STD

main11132-21020×8i1NZFE,2NZFE..NCP15#201304-201604

O/S 0.03

main11132-21021×8i1NZFE,2NZFE..NCP15#201604-201609

O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-0Y030×16i1NRFE,2NRFE..NSP150,151..I202003-202406

STD

main11135-0Y050×8i2NRFE..NSP151..F201708-202101

STD,*230 OR *432

main11135-21040×8i2NZFE..NCP151;1NZFE..NCP150..G,R,V;1NZFE..NCP150..(GEN,MA,TAIW,TH)..D201304-201609

STD

main11135-21051×8i1NZFE..NCP150..IDN..D201304-201609

STD

main11135-47020×8i2NR#..NSP151..H201807-201910

STD

main11135-47030×8i2NRFE..NSP151..TH..B201607

STD,*230 OR *432

main11136-21040×8i2NZFE..NCP151;1NZFE..NCP150..G,R,V;1NZFE..NCP150..(GEN,MA,TAIW,TH)..D201304-201609

O/S 0.03

main11136-21051×8i1NZFE..NCP150..IDN..D201304-201609

O/S 0.03

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001×2i1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B201304-201603

L=14,OD=6

main90253-13005×10i2NRFE..NSP151..TAIW201607-201802

L=12.5,OD=8,*230 OR *432

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-T0347×3i2NRFE..NSP151..TAIW201604-201802

*264

main90109-06080×16i1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B201304-201603

NO.1

main90119-08A29×3i1NZFE,2NZFE..NCP15#..C201304-201609

NO.2

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0M011i1NZFE..NCP150..IDN..B201304-201506

(L)

main11201-0M021i1NZFE..NCP150..TAIW201404-201604

main11201-0Y030i1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G201607-201712

*230 OR *432

main11201-0Y040i3NRFKE..NSP152201911-202207

main11201-0Y070i2NR#..NSP151..H201807-201910

main11201-0Y110i3NRFE..NSP152201708-201910

main11201-21051i1NZFE..NCP150..(GCC,GEN,TH)..B201304-201603

(J)

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-05008×2i1NZFE..NCP150..C201403-201609

main90210-06013×2i1NZFE..NCP150201304-201402

main90210-T0001×2i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..5F..(GEN,IDN)..(A,C);2NRFE..NSP151..(GCC,PH,TH,VN)..(A,D,E);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E); 3NR#..NSP152201708-202207

*230 OR *432

main90210-T0002×2i2NRFE..NSP151..MA201609-201812

*419

11212COVER, CYLINDER HEAD, NO.2

main11212-0M040i1NZFE,2NZFE..NCP15#..GCC,GEN,IDN,MA,PH,TH,VN201304-201609

main11212-0M050i1NZFE..NCP150..TAIW201404-201604

11213GASKET, CYLINDER HEAD COVER

main11213-0M010i1NZFE..NCP150..PH201304-201606

(L)

main11213-0Y010i3NRFKE..NSP152201911-202207

main11213-0Y030i2NRFE..NSP151..MA201607-201812

*230 OR *432

main11213-21011i2NZFE..NCP151..C201307-201609

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i1NRFE,2NRFE..NSP150,151..PH201604-201806

*264

main12180-0Y040i2NR#..NSP151..H201807-201910

main12180-38010i2NZFE..NCP151..PH201307-201606

12108AGASKET(FOR OIL FILLER CAP)

main90080-43027i1NZFE..NCP150..MA,VN201304-201608

main90430-35001i2NZFE..NCP151..C201307-201609

main90430-T0013i2NR#..NSP151..H201807-201910

12281AHANGER, ENGINE, NO.1

main12281-0M020×2i1NZFE..NCP150..C201304-201609

(L)

main12281-0Y070i2NRFE..NSP151..MA201604-201812

*264

main12281-0Y080i2NRFE..NSP151..5F..D..C;1NRFE..NSP150..LHD..(G,R);2NRFE..NSP151..GCC,GEN,MA,VN;1NRFE..NSP150..CVT..D..(A,C);1NRFE..NSP150..5F..(GEN,VN)..D;2NRFE..NSP151..(IDN,TH)..(G,R)..(A,C);1NRFE,3NRFKE..NSP150,152..RHD..CVT..(G,R)..A201911-202207

*230 OR *432

main12281-0Y120i1NRFE,2NRFE..NSP150,151..I202403-202406

main12281-21010×2i1NZFE..NCP150..IDN..B201304-201506

(J)

main12281-21090×2i2NZFE..NCP151..(GCC,GEN)..B201308-201603

15678AFILTER, OIL CONTROL VALVE

main15678-0C010i1NZFE..NCP150..PH201304-201606

(L)

main15678-0Y010i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..5F..(GEN,IDN)..(A,C);2NRFE..NSP151..(GCC,PH,TH,VN)..(A,D,E);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E); 1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..5F..(GEN,IDN)..(A,C);2NRFE..NSP151..(GCC,PH,TH,VN)..(A,D,E);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)201708-202207

*230 OR *432; *264

main15678-21010i1NZFE..NCP150..TAIW201304-201604

(J)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8202WIRING & CLAMP

→ Go to FIG 82-02

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9009914137

main90099-14137

9010506252

main90105-06252

90105T0008

main90105-T0008

90105T0086

main90105-T0086

90105T0091

main90105-T0091

9011606166

main90116-06166

90119T0011

main90119-T0011

90119T0014

main90119-T0014

9012606009

main90126-06009

9012606012

main90126-06012

90126T0002

main90126-T0002

9017606045

main90176-06045

9033916001

main90339-16001

90466T0010

main90466-T0010

91511C0622

main91511-C0622

9155180614

main91551-80614

9155180660

main91551-80660

9155281022

main91552-81022

9164281025

main91642-81025

9167180612

main91671-80612

9415010641

main94150-10641

G191732010

mainG1917-32010

50 parts on this diagram · 6 diagrams in section
