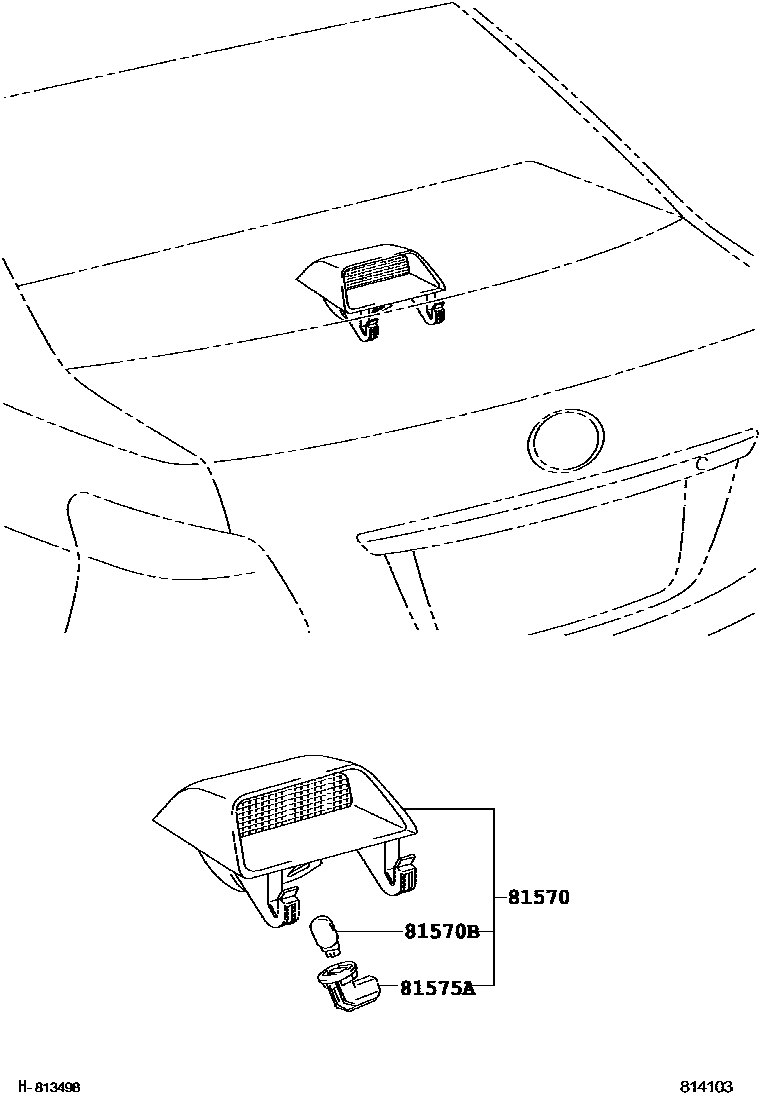

CENTER STOP LAMP

0001 1 0002 1

81570LAMP ASSY, CENTER STOP

main81570-0D070-B0iNCP93..MTM..15J200702-201403

DK.GRAY,TRIM1#

main81570-0D070-E0iNCP93..MTM..15G..IDN;NCP93..MTM..(15E,E)..(TH,VN);NCP93..ATM..(15E,15G,E,G)..(IDN,MA,TH,VN)200702-201403

GREGE,TRIM4#

main81570-42071iNCP93..15S200702-201310

81570BBULB (FOR CENTER STOP LAMP)

main90981-11059iNCP93..ATM..15J200702-201403

12V 16W

main90981-11059iNCP93..RHD..MTM..(15E,15G);NCP93..RHD..ATM..(15E,15G,15J)200702-201003

12V 16W,J-ECO PACKAGE

81575ASOCKET, CENTER STOP LAMP

main90069-81079iNCP93..MTM..15J200702-201403

main90069-81079iNCP93..RHD..MTM..(15E,15G);NCP93..RHD..ATM..(15E,15G,15J)200702-201003

J-ECO PACKAGE

3 parts on this diagram · 2 diagrams in section
