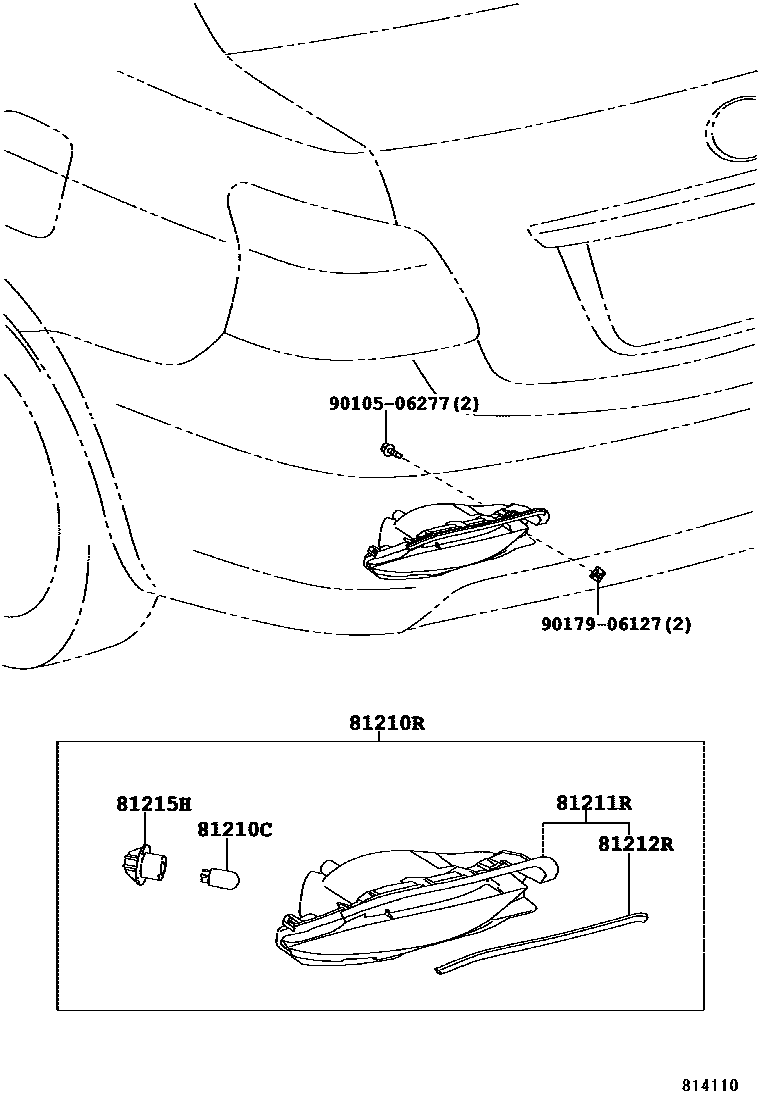

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main90981-13043×2iNCP93..(15E,15G)..TH; NCP93..MTM..15E..TH;NCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G,15S)200702-201003

12V 21W; 12V 21W,SINGAPORE & BRUNEI SPEC

81210RLAMP ASSY, REAR FOG

main81580-0D020supersedes 81590-0D020iNCP93..MTM..15E..TH;NCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G)201003-201304

RH

main81590-0D020iNCP93..MTM..15E..TH;NCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G,15S)200702-201003

LH

81211RLENS, REAR FOG LAMP

main81581-0D020supersedes 81591-0D020iNCP93..(15E,15G)..TH; NCP93..MTM..15E..TH;NCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G,15S)200702-201003

RH; SINGAPORE & BRUNEI SPEC,RH

main81591-0D020iNCP93..MTM..15E..TH;NCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G,15S)200702-201003

LH

81212RGASKET, REAR FOG LAMP, NO.1

main81584-0D020×2iNCP93..(15E,15G)..TH; NCP93..MTM..15E..TH;NCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G,15S)200702-201003

SINGAPORE & BRUNEI SPEC

81215HSOCKET, REAR FOG LAMP

main90069-81080×2iNCP93..MTM..15E..TH;NCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G)201003-201304

9010506277

main90105-06277

9017906127

main90179-06127

7 parts on this diagram · 1 diagram in section
