FRONT SEAT & SEAT TRACK

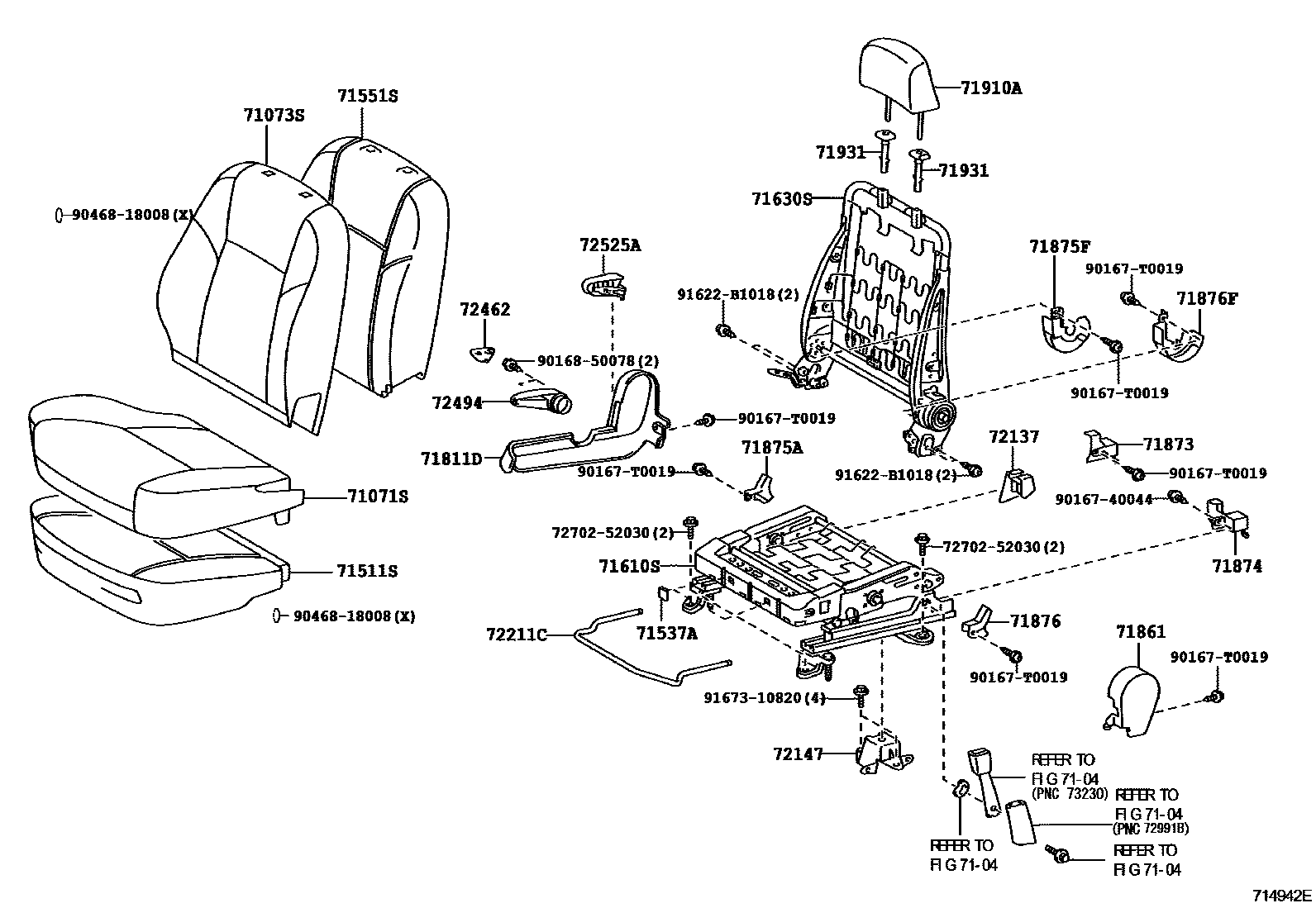

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-0D440-B3supersedes 71071-0D450-B2i200702-201003
DARK GRAY,TRIM1#; SINGAPORE & BRUNEI SPEC,DARK GRAY,TRIM1#
main71071-0D440-E2i200702-201003
GREGE,TRIM4#
main71071-0D450-E2i201003-201304
GREGE,TRIM4#
main71071-0D460-B3i200702-201003
DARK GRAY,TRIM1#
main71071-0D470-B2i200710-201004
DARK GRAY,TRIM1#
main71071-0D470-E2i200710-201004
GREGE,TRIM4#
main71071-0D480-B2i200708-201004
DARK GRAY,TRIM1#
main71071-0D500-E2i200709-201004
GREGE,TRIM4#
main71071-0D510-E2i200709-201004
GREGE,TRIM4#
main71071-0D540-B1i201003-201304
DARK GRAY,TRIM1#
main71071-0D550-B1i201004-201403
DARK GRAY,TRIM1#
main71071-0D700-B0i201003-201304
DK. GRAY,TRIM1#; SINGAPORE & BRUNEI SPEC,DK. GRAY,TRIM1#
main71071-0D700-E0i201003-201304
GREGE,TRIM4#
main71071-0D710-B0i201004-201106
DK. GRAY,TRIM1#
main71071-0D720-B0i201004-201307
DK. GRAY,TRIM1#
main71071-0D730-E0i201004-201403
GREGE,TRIM4#
main71071-0D750-E0i201004-201310
GREGE,TRIM4#
main71071-0DC80-B0i201106-201310
DARK GRAY,TRIM1#
main71071-0D490-B3i201004-201307
SEAT COVER MATERIAL-LEATHER,DARK GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-0D590-B1supersedes 71073-0D600-B1i200702-200805
DARK GRAY,TRIM1#
main71073-0D590-E1i200702-201003
GREGE,TRIM4#
main71073-0D600-E1i200702-201003
GREGE,TRIM4#
main71073-0D610-B1i200702-201003
DK.GRAY,TRIM1#
main71073-0D620-B2i200805-201003
DARK GRAY,TRIM1#
main71073-0D620-E1i200805-201003
GREGE,TRIM4#
main71073-0D630-B1i200710-201004
DARK GRAY,TRIM1#
main71073-0D630-E1i200710-201004
GREGE,TRIM4#
main71073-0D640-B1i200708-201004
DARK GRAY,TRIM1#
main71073-0D650-B1i200708-201004
DARK GRAY,TRIM1#
main71073-0D680-E1i200709-201004
GREGE,TRIM4#
main71073-0D690-E1i201004-201403
GREGE,TRIM4#
main71073-0D720-B0i200702-201003
DK.GRAY,TRIM1#
main71073-0D730-B0i200709-201004
DK.GRAY,TRIM1#
main71073-0D840-B0i201003-201304
DK. GRAY,TRIM1#; SINGAPORE & BRUNEI SPEC,DK. GRAY,TRIM1#
main71073-0D840-E0i201003-201304
GREGE,TRIM4#
main71073-0D850-B0i201003-201304
DK. GRAY,TRIM1#
main71073-0D850-E0i201003-201304
GREGE,TRIM4#
main71073-0D860-B0i201004-201106
DK. GRAY,TRIM1#
main71073-0D870-B0i201004-201307
DK. GRAY,TRIM1#
main71073-0D880-B0i201004-201307
DK. GRAY,TRIM1#
main71073-0D890-E0i201004-201403
GREGE,TRIM4#
main71073-0DA10-E0i201004-201310
GREGE,TRIM4#
main71073-0DE20-B0i201106-201310
DARK GRAY,TRIM1#
main71073-0D660-B2i200708-201004
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-0D070i200702-201003
main71511-0D080i200710-201004
main71511-0D090i200708-201004
main71511-0D100i201004-201403
71537APROTECTOR, FRONT SEAT CUSHION
main71537-26010×4i201003-201403
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-0D110i200702-201003
main71551-0D120i200710-201004
main71551-0D130i201004-201307
main71551-0D140i200709-201004
main71551-0D160supersedes 71551-0D110i200702-201003
SINGAPORE & BRUNEI SPEC
main71551-0D190i201004-201403
main71551-0D270i201004-201310
main71551-0D180i200708-201004
SEAT COVER MATERIAL-LEATHER
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-0D030i200702-201003
main71610-0D040i201004-201310
main71610-0D050i201004-201307
main71610-0D060i200709-201004
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-0D140i200710-201004
main71630-0D150i201004-201307
main71630-0D170i201003-201304
main71630-0D180i201004-201403
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-0D120-B0i200710-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main71811-0D120-E0i201004-201310
GREGE,TRIM4#
main71811-0D130-B0i200708-201004
DK.GRAY,TRIM1#
main71811-0D140-B0i200702-201003
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
main71811-0D140-E0i201003-201304
GREGE,TRIM4#
main71811-0D150-B0i200709-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main71811-0D150-E0i201004-201403
GREGE,TRIM4#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-0D080-B0i201203-201403
DK.GRAY,TRIM1#
main71861-0D080-E0i201003-201403
GREGE,TRIM4#
main71861-0D090-B0i200710-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main71861-0D090-E0i201004-201310
GREGE,TRIM4#
main71861-0D100-B0i200708-201004
DK.GRAY,TRIM1#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-0D050i201003-201403
main71873-0D050-B0i200702-200809
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
main71873-0D080i201004-201310
main71873-0D080-B0i200710-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main71873-0D090i201004-201307
main71873-0D090-B0i200708-201004
DK.GRAY,TRIM1#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-0D050i201003-201403
main71874-0D050-B0i200709-200809
DK.GRAY,TRIM4#
main71874-0D080i201004-201310
main71874-0D080-B0i200710-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main71874-0D090i201004-201307
main71874-0D090-B0i200708-201004
DK.GRAY,TRIM1#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-06070-B0i200702-201004
DK.GRAY,TRIM1#,4#
main71875-06070-E0i201003-201403
GREGE,TRIM4#
main71875-0D120-B0i200710-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main71875-0D120-E0i201004-201310
GREGE,TRIM4#
main71875-0D140-B0i201004-201307
DK.GRAY,TRIM1#
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-06370i200702-201004
main71875-0D110-B0i200710-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main71875-0D110-E0i201004-201310
GREGE,TRIM4#
main71875-0D130-B0i200708-201004
DK.GRAY,TRIM1#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-06320-B0i200709-201004
DK.GRAY,TRIM4#
main71876-06320-E0i201003-201403
GREGE,TRIM4#
main71876-0D120-B0i200710-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main71876-0D120-E0i201004-201310
GREGE,TRIM4#
main71876-0D140-B0i200708-201004
DK.GRAY,TRIM1#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71876-06400i200702-201004
main71876-0D110-B0i200710-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main71876-0D110-E0i201004-201310
GREGE,TRIM4#
main71876-0D130-B0i200708-201004
DK.GRAY,TRIM1#
71910AHEADREST ASSY, FRONT SEAT
main71910-0D480-B0×2supersedes 71910-0D540-B1i200702-201003
DARK GRAY,TRIM1#; SINGAPORE & BRUNEI SPEC,DARK GRAY,TRIM1#
main71910-0D480-E0×2i200702-201003
GREGE,TRIM4#
main71910-0D490-B1×2i200702-201002
DK.GRAY,TRIM1#
main71910-0D490-E1×2i200702-201002
GREGE,TRIM4#
main71910-0D510-E1×2i201004-201403
GREGE,TRIM4#
main71910-0D540-B0×2i201003-201304
DK.GRAY,TRIM1#
main71910-0D540-B1×2i201002-201003
DK.GRAY,TRIM1#
main71910-0D540-E0×2i201003-201304
GREGE,TRIM4#
main71910-0D550-B0×2i200709-201004
DK.GRAY,TRIM1#
main71910-0D600-B0×2i200710-201004
DARK GRAY,TRIM1#
main71910-0D600-E0×2i200710-201004
GREGE,TRIM4#
main71910-0D610-B0×2i200708-201004
DARK GRAY,TRIM1#
main71910-0D620-E0×2i200709-201004
GREGE,TRIM4#
main71910-0D720-B0×2i201203-201304
DK. GRAY,TRIM1#
main71910-0D720-E0×2i201003-201304
GREGE,TRIM4#
main71910-0D730-B0×2i201004-201106
DK. GRAY,TRIM1#
main71910-0D740-B0×2i201004-201307
DK. GRAY,TRIM1#
main71910-0D750-E0×2i201004-201403
GREGE,TRIM4#
main71910-0D770-B0×2i201106-201310
DK.GRAY,TRIM1#
main71910-0D770-E0×2i201004-201310
GREGE,TRIM4#
main71910-0D500-B2×2i201004-201307
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-02050-B1×2i200708-201004
W(LOCK),DK.GRAY,TRIM1#
main71930-02050-E1×2i200709-201004
W(LOCK),GREGE,TRIM4#
main71930-47010-B2×2i201203-201304
W(LOCK),DK.GRAY,TRIM1#
main71930-47010-E3×2i200702-201003
W(LOCK),GREGE,TRIM40
main71931-02030-B1×2i201004-201403
W/O(LOCK),DK.GRAY,TRIM1#
main71931-02030-E1×2i201004-201403
W/O(LOCK),GREGE,TRIM4#
main71931-47010-B2×2i200702-201003
W/O(LOCK),DK.GRAY,TRIM1#; W/O(LOCK),DK.GRAY,TRIM1#,4#; W/O(LOCK),DK.GRAY,TRIM1#,40
main71931-47010-E4×2i200702-201003
W/O(LOCK),GREGE,TRIM40
72137COVER, SEAT TRACK, OUTER RH
main72137-0D070i201003-201403
main72137-0D070-B0i200702-201003
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
main72147-0D030i201003-201403
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-0D060×2i201003-201403
main72211-0D070×2i201004-201310
main72211-0D080×2i200708-201004
72462COVER, VERTICAL ADJUSTER RH
main72462-0D030-B0i200709-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main72462-0D030-E0i201004-201403
GREGE,TRIM4#
main72462-0D040-B0i201003-201304
DK.GRAY,TRIM1#
main72462-0D040-E0i201003-201304
GREGE,TRIM4#
main72462-0D050-B0i200710-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main72462-0D050-E0i201004-201310
GREGE,TRIM4#
main72462-0D060-B0i200708-201004
DK.GRAY,TRIM1#
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-0D030-B0i200709-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main72494-0D030-E0i201004-201403
GREGE,TRIM4#
main72494-0D040-B0i200702-201003
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
main72494-0D040-E0i201003-201304
GREGE,TRIM4#
main72494-0D050-B0i200710-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main72494-0D050-E0i201004-201310
GREGE,TRIM4#
main72494-0D060-B0i200708-201004
DK.GRAY,TRIM1#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-0D090-B0i200702-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main72525-0D090-E0i201003-201403
GREGE,TRIM4#
main72525-0D100-B0i200710-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main72525-0D100-E0i201004-201310
GREGE,TRIM4#
main72525-0D110-B0i200708-201004
DK.GRAY,TRIM1#
7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52030
9016740044
main90167-40044
90167T0019
main90167-T0019
9016850078
main90168-50078
9046818008
main90468-18008
91622B1018
main91622-B1018
9167310820
main91673-10820

31 parts on this diagram · 4 diagrams in section
