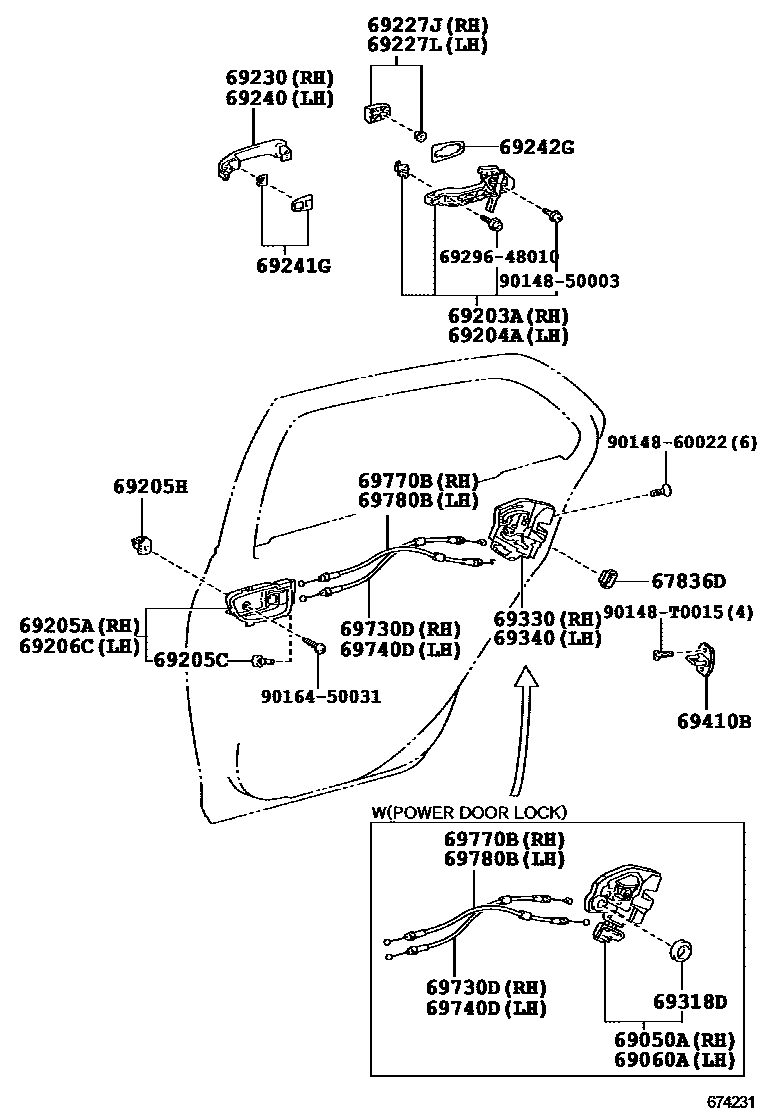

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-02030iNCP93..RHD..(15E,15G,15S,LIMO)200702-201003

SINGAPORE & BRUNEI SPEC

main67836-02030iNCP9#200702-201403

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02220iNCP93..E..VN200709-201403

main69050-06060iNCP93..RHD..(15E,15G)200702-201304

main69050-0D130iNCP93..15E..TH200702-201304

SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITHOUT

main69050-0D130iNCP93..15G..TH200702-201304

SINGAPORE & BRUNEI SPEC

main69050-0D140iNCP93..ATM..(MA,PH,VN);NCP9#..MTM..(13E,15G,J)..(MA,PH)200708-201403

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02210iNCP9#..MTM..(13J,E)200709-201403

main69060-06060iNCP93..RHD..(15E,15G)200702-201304

main69060-0D130iNCP93..15G..TH200702-201304

SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITHOUT

main69060-0D130iNCP93..15J200702-201304

SINGAPORE & BRUNEI SPEC

main69060-0D140iNCP92..13E;NCP93..MTM..(MA,PH);NCP93..ATM..(MA,PH,VN)200708-201403

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0D060iNCP9#..MA,PH,VN200702-201112

main69203-0D060iNCP9#201112-201403

*299

main69203-52100iNCP9#201112-201403

*300

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0D060iNCP93..IDN,TH200702-201112

main69204-0D060iNCP9#201112-201403

*299

main69204-52130iNCP9#201112-201403

*300

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0D170-B0iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J,E,J,LIMO)..(MA,TH,VN)200702-201112

DK.GRAY,TRIM1#

main69205-0D170-B0iNCP9#..13J,15S200702-201004

DK.GRAY,TRIM1#,4#

main69205-0D170-B0iNCP93..G..VN200709-201004

DK.GRAY,TRIM4#

main69205-0D170-B0iNCP93..LIMO;NCP9#..(13E,13J,15E,15J,E,J,S)..(MA,PH,TH)201112-201403

DK.GRAY,TRIM1#,*299

main69205-0D170-E0iNCP93..(15E,E)..(TH,VN)201112-201403

ASH BROWN,TRIM4#,*299

main69205-0D170-E0iNCP93..(15E,E)..(TH,VN)201003-201112

ASH BROWN,TRIM4#

main69205-0D180-B0iNCP93..(15G,G,S)..(IDN,MA)200702-201004

DK.GRAY,TRIM1#,4#

sub69205-0D170

main69205-0D180-B0iNCP9#..(13E,15G)..PH200708-201004

DK.GRAY,TRIM1#

sub69205-0D170

main69205-52140-B0iNCP93..LIMO;NCP9#..(13E,13J,15E,15J,E,J,S)..(MA,PH,TH)201112-201403

DK.GRAY,TRIM1#,*300

main69205-52140-E0iNCP93..(15E,E)..(TH,VN)201112-201403

ASH BROWN,TRIM4#,*300

main69205-52150-B1iNCP93..15G;NCP93..15E..IDN201003-201307

DK.GRAY,TRIM1#

sub69205-52150

main69205-52150-E1iNCP93..15E..IDN;NCP93..(15G,G)..(IDN,MA,TH,VN)201003-201403

ASH BROWN,TRIM4#

sub69205-52150

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027iNCP93..IDN,TH200702-201403

69205HGROMMET(FOR REAR DOOR INSIDE HANDLE)

main69299-52010iNCP93..IDN,TH200702-201403

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0D170-B0iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J,E,J,LIMO)..(MA,TH,VN)200702-201004

DK.GRAY,TRIM1#,4#

main69206-0D170-B0iNCP9#..13J,15S200702-201112

DK.GRAY,TRIM1#

main69206-0D170-B0iNCP93..G..VN200709-201004

DK.GRAY,TRIM4#

main69206-0D170-B0iNCP93..LIMO;NCP9#..(13E,13J,15E,15J,E,J,S)..(MA,PH,TH)201112-201403

DK.GRAY,TRIM1#,*299

main69206-0D170-E0iNCP93..(15E,E)..(TH,VN)201003-201112

ASH BROWN,TRIM4#

main69206-0D170-E0iNCP93..(15E,E)..(TH,VN)201112-201403

ASH BROWN,TRIM4#,*299

main69206-0D180-B0iNCP93..(15G,G,S)..(IDN,MA)200702-201004

DK.GRAY,TRIM1#,4#

sub69206-0D170

main69206-0D180-B0iNCP9#..(13E,15G)..PH200708-201004

DK.GRAY,TRIM1#

sub69206-0D170

main69206-52140-B0iNCP93..LIMO;NCP9#..(13E,13J,15E,15J,E,J,S)..(MA,PH,TH)201112-201403

DK.GRAY,TRIM1#,*300

main69206-52140-E0iNCP93..(15E,E)..(TH,VN)201112-201403

ASH BROWN,TRIM4#,*300

main69206-52150-B1iNCP93..15G;NCP93..15E..IDN201003-201307

DK.GRAY,TRIM1#

sub69206-52150

main69206-52150-E1iNCP93..15E..IDN;NCP93..(15G,G)..(IDN,MA,TH,VN)201003-201403

ASH BROWN,TRIM4#

sub69206-52150

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-02070iNCP9#..MTM..(13J,15J,LIMO)200702-201403

BLACK

main69227-06906iNCP9#..(13E,15G,E,G,J,S)..(MA,PH,VN)200702-201004

LESS COLOR

main69227-06906iNCP92..13E;NCP93..ATM;NCP93..MTM..(15E,15G,E,J)201003-201403

LESS COLOR,*299

main69227-42901iNCP92..13E;NCP93..ATM;NCP93..MTM..(15E,15G,E,J)201112-201403

LESS COLOR,*300

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-02070iNCP9#..MTM..(13J,15J,LIMO)200702-201403

BLACK

main69227-06906iNCP92..13E;NCP93..ATM;NCP93..MTM..(15E,15G,E,J)201003-201403

LESS COLOR,*299

main69227-06906iNCP93..RHD..(15E,15G,15J,15S)200702-201004

LESS COLOR

main69227-42901iNCP92..13E;NCP93..ATM;NCP93..MTM..(15E,15G,E,J)201112-201403

LESS COLOR,*300

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-06905iNCP93..RHD..(15E,15G,15J,15S)200702-201004

PAINT REQ.

main69210-06905iNCP92..13E;NCP93..ATM;NCP93..MTM..(15E,15G,E,J)201003-201401

PAINT REQ.,*299

main69211-02130iNCP9#..MTM..(13J,15J,LIMO)201003-201401

NO PAINT REQ.,*299

main69211-02130iNCP93..LIMO..IDN200702-201004

NO PAINT REQ.

main69211-12903iNCP92..13E;NCP93..ATM;NCP93..MTM..(15E,15G,E,J)201112-201401

PAINT REQ.,*300

main69211-42010iNCP9#..MTM..(13J,15J,LIMO)201112-201401

NO PAINT REQ.,*300

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-06905iNCP92..13E;NCP93..ATM;NCP93..MTM..(15E,15G,E,J)201003-201401

PAINT REQ.,*299

main69210-06905iNCP93..RHD..(15E,15G,15J,15S)200702-201004

PAINT REQ.

main69211-02130iNCP9#..LHD..(13J,LIMO)200702-201004

NO PAINT REQ.

main69211-02130iNCP9#..MTM..(13J,15J,LIMO)201003-201401

NO PAINT REQ.,*299

main69211-12903iNCP92..13E;NCP93..ATM;NCP93..MTM..(15E,15G,E,J)201112-201401

PAINT REQ.,*300

main69211-42010iNCP9#..MTM..(13J,15J,LIMO)201112-201401

NO PAINT REQ.,*300

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-06030iNCP9#200702-201112

main69241-06030iNCP9#201112-201403

(L)

main69241-48020iNCP9#201112-201403

(J)

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-06020iNCP9#..MA,PH,VN200702-201112

main69242-06020iNCP9#201112-201403

(L)

main69242-42010iNCP9#201112-201403

(J)

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iNCP9#..13E,13J,15E,15G,15J,E,G,J,S200702-201403

69330LOCK ASSY, REAR DOOR, RH

main69330-0D070iNCP93..LIMO..IDN200702-201304

main69330-0D080iNCP9#..LHD..(13J,LIMO)200708-201403

69340LOCK ASSY, REAR DOOR, LH

main69340-0D070iNCP93..LIMO..IDN200702-201304

main69340-0D080iNCP93..LIMO..VN200708-201403

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0K010iNCP9#200702-201403

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0D090iNCP9#..MA,PH,VN200702-201403

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0D090iNCP9#..MA,PH,VN200702-201403

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0D070iNCP93..LIMO..IDN200702-201403

main69770-0D080iNCP9#..(13E,15G,E,G,J,S)..(MA,PH,VN)200702-201403

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-0D070iNCP93..LIMO..IDN200702-201403

main69770-0D080iNCP93..RHD..(15E,15G,15J,15S)200702-201403

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9014850003

main90148-50003

9014860022

main90148-60022

90148T0015

main90148-T0015

9016450031

main90164-50031

28 parts on this diagram · 1 diagram in section
