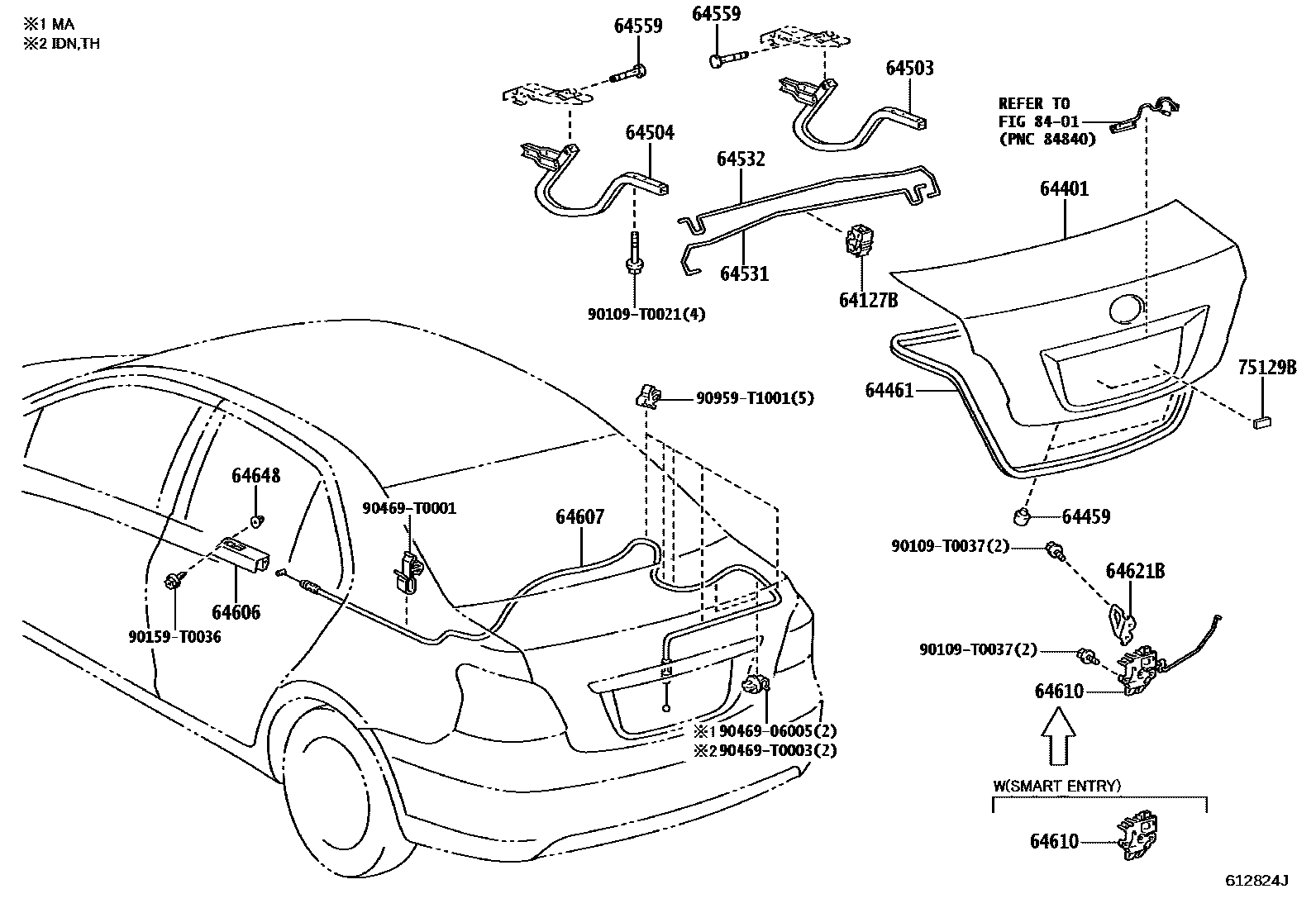

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D010iNCP9#201003-201403

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D090iNCP9#..IDN,PH,TH,VN201003-201401

main64401-0D100iNCP93..(E,G,J)..MA200710-201004

main64401-0D110iNCP93..15S200702-201003

main64401-0D120iNCP93..S200710-201004

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116×2iNCP9#..MA,PH,VN200702-201004

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D050iNCP9#200702-201004

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-12150iNCP9#200702-201004

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-12150iNCP9#200702-201004

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D080iNCP9#..13E,13J,15E,15G,15J,E,G,J,LIMO200702-201004

main64531-0D090iNCP93..S201004-201310

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D080iNCP9#..13E,13J,15E,15G,15J,E,G,J,LIMO201003-201403

main64532-0D090iNCP93..15S200702-201004

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2iNCP9#201003-201403

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-06060iNCP93..IDN,TH200702-201003

main64606-33030iNCP9#..LHD200708-201004

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-0D050iNCP93..IDN,TH201003-201304

main64607-0D080iNCP93..VN201004-201403

main64607-0D100iNCP93..MA200710-201004

main64607-0D110iNCP9#..PH201004-201307

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-0D010iNCP93..15G..TH; NCP93..ATM..IDN200702-201003

G-LIMITED

main64610-0D030iNCP9#..MA,PH,VN200702-201004

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06050iNCP93..IDN,TH200702-201003

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-0D020iNCP93..IDN,TH200702-201003

75129BCUSHION, REAR LICENCE PLATE

main75129-13020×2iNCP93..IDN,TH200702-201003

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90109T0021

main90109-T0021

90109T0037

main90109-T0037

90159T0036

main90159-T0036

9046906005

main90469-06005

90469T0001

main90469-T0001

90469T0003

main90469-T0003

90959T1001

main90959-T1001

23 parts on this diagram · 2 diagrams in section
