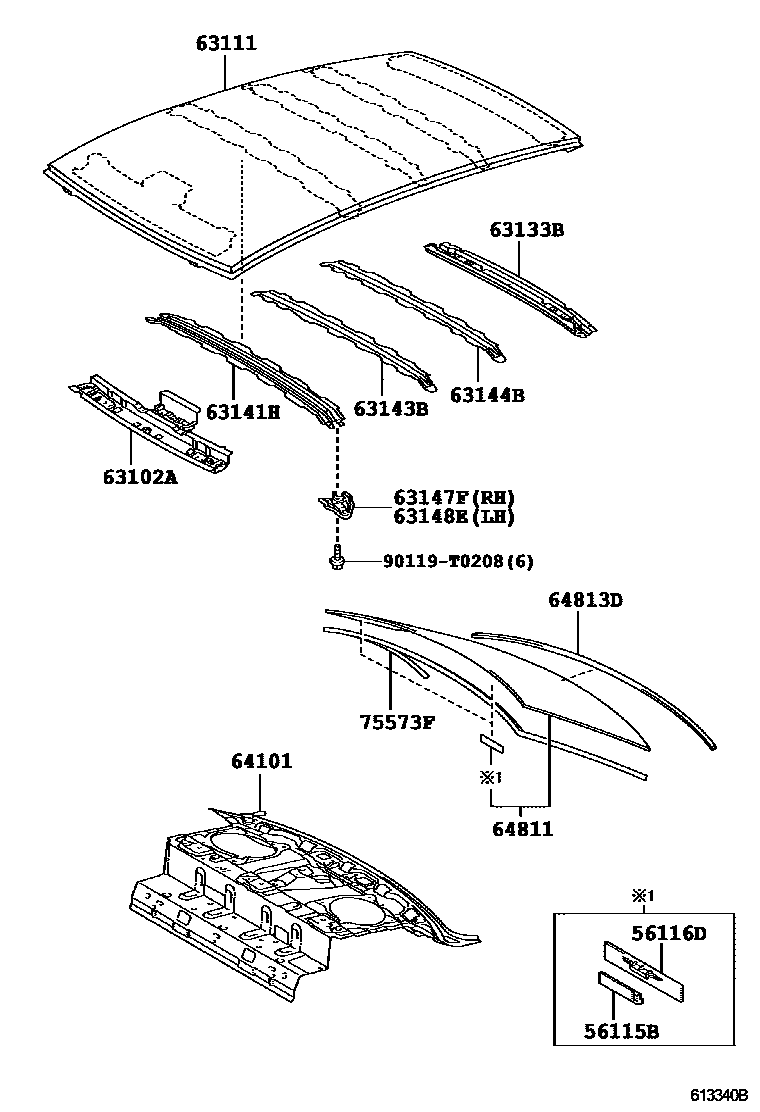

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100×2iNCP9#..MA,PH,VN200702-201004

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iNCP93..IDN,TH,VN200702-200801

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0D050iNCP9#201003-201403

63111PANEL, ROOF

main63111-0D110iNCP93..MA201004-201310

main63111-52250iNCP93..IDN,TH200702-201003

63133BFRAME, BACK WINDOW

main63133-0D060iNCP9#201003-201403

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-0D090iNCP93..IDN,TH200702-201003

main63141-52120iNCP9#..MA,PH,VN201004-201403

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0D080iNCP93..IDN,TH200702-201003

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0D030iNCP9#201003-201403

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-0D030iNCP93..IDN,TH200702-201003

main63147-52060iNCP9#..MA,PH,VN200708-201004

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-0D030iNCP93..IDN,TH200702-201003

main63147-52060iNCP9#..MA,PH,VN200708-201004

64101PANEL SUB-ASSY, UPPER BACK

main64101-0D040iNCP93..RHD..(15E,15J,LIMO)200702-201003

main64101-0D050iNCP93..15G,15S200702-200703

main64101-0D060iNCP9#..(13E,13J,15G,J,LIMO)..(MA,PH,VN)200708-201004

main64101-0D070iNCP93..E,G,S201004-201403

64811GLASS, BACK WINDOW

main64801-0D030iNCP9#..PH200708-201004

*TEM,T=3.1,GREEN

main64801-0D040iNCP93..MA201004-201310

*TEM,T=3.1,GREEN

main64801-0D901iNCP93..IDN,TH,VN200702-200802

*TEM,T=3.1,GREEN

main64801-0D903iNCP93..IDN,TH,VN200802-200805

*TEM,T=3.1,GREEN

main64801-0D905iNCP93..IDN,TH200805-201003

*TEM,T=3.1,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-52080iNCP9#..MA,PH,VN200702-201004

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-0D040iNCP9#..MA,PH200702-201004

main75573-0D050iNCP93..IDN,TH,VN201003-201403

90119T0208

main90119-T0208

15 parts on this diagram · 2 diagrams in section
