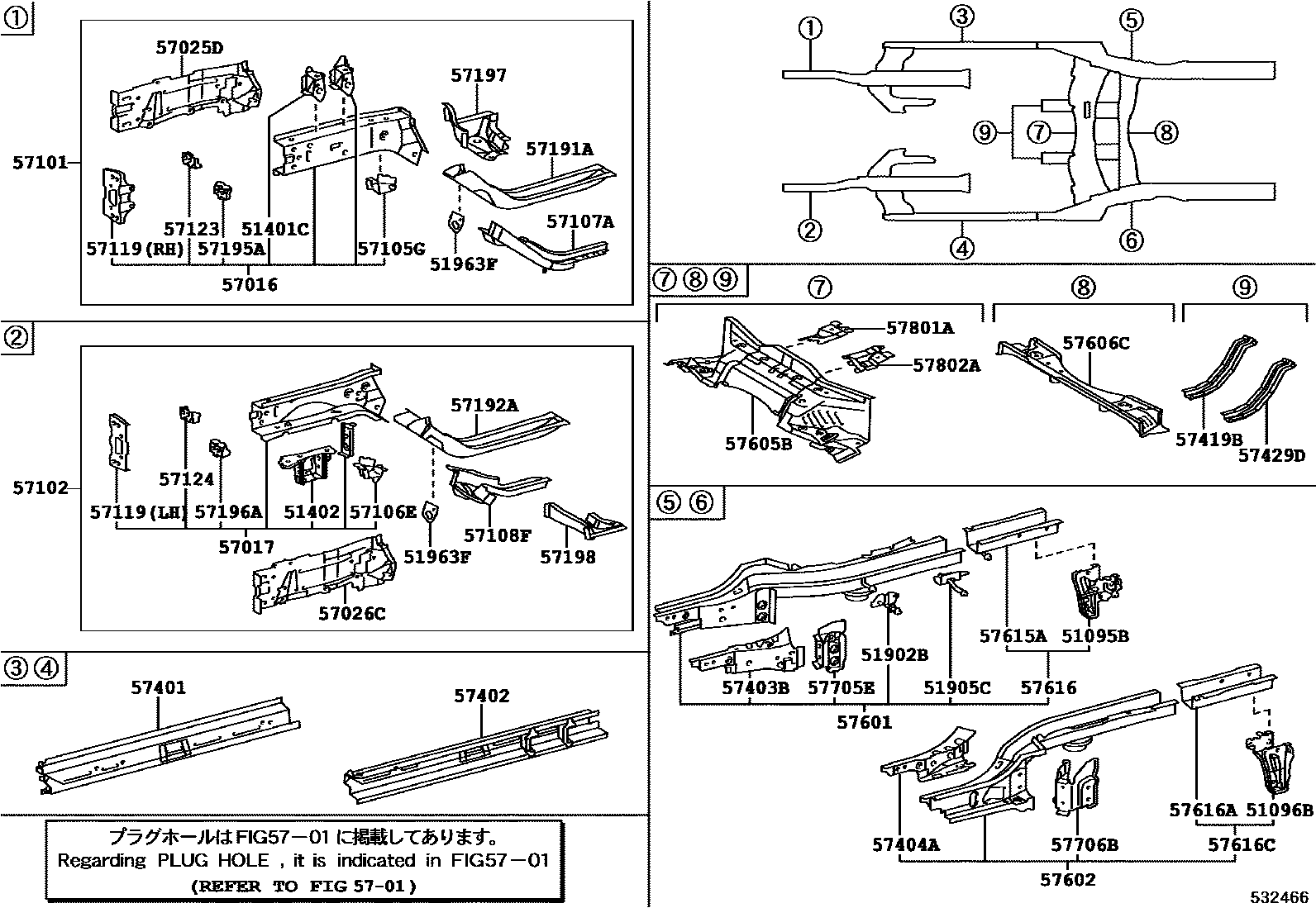

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-0D020i200702-201003

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0D020i200702-201003

51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0D020i200702-201003

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0D020i200702-201003

51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2

main51902-0D020i200702-201003

51905CHANGER SUB-ASSY, EXHAUST PIPE, NO.5

main51905-0D010i200702-201003

51963FHOOK, TRANSPORT

main51963-0D030i200702-201003

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0D070i200702-201003

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0D130i200702-201003

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0D030i200702-201003

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0D030i200702-201003

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0D100i200702-201004

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0D160i200702-201004

57105GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH

main57105-0D040i200702-201004

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-0D020i200702-201003

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-0D060i200702-201003

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-0D060i200702-201003

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-0D020i201003-201403

RH

main57129-0D020i200702-201004

LH

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-0D020i200702-201003

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-0D020i200702-201003

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-52020i200702-201003

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-52020i200702-201003

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-0D020i200702-201003

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-0D020i200702-201003

57197BOX, TORQUE, FRONT RH

main57197-0D040i200702-201003

57198BOX, TORQUE, FRONT LH

main57198-0D040i200702-201003

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-0D120i200702-201003

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-0D120i200702-201003

57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-0D010i200702-201003

57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-0D010i200702-201003

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-0D050i200702-201003

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-0D050i200702-201003

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0D120i200702-201003

main57601-0D121i201109-201403

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0D110i200702-201003

main57602-0D111i201109-201403

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0D060i200702-201003

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D060i200702-201003

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-0D050i200702-201003

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-0D901i200702-201003

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0D050i200702-201003

57616CMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0D901i200702-201003

57705EBRACKET SUB-ASSY, REAR SUSPENSHION MEMBER MOUNTING, RR RH

main57705-0D020i200702-200809

main57705-0D021i200810-201003

57706BBRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR LH

main57706-0D020i200702-200809

main57706-0D021i200810-201003

57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH

main57801-0D050i200702-201003

57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH

main57802-0D040i200702-201003
