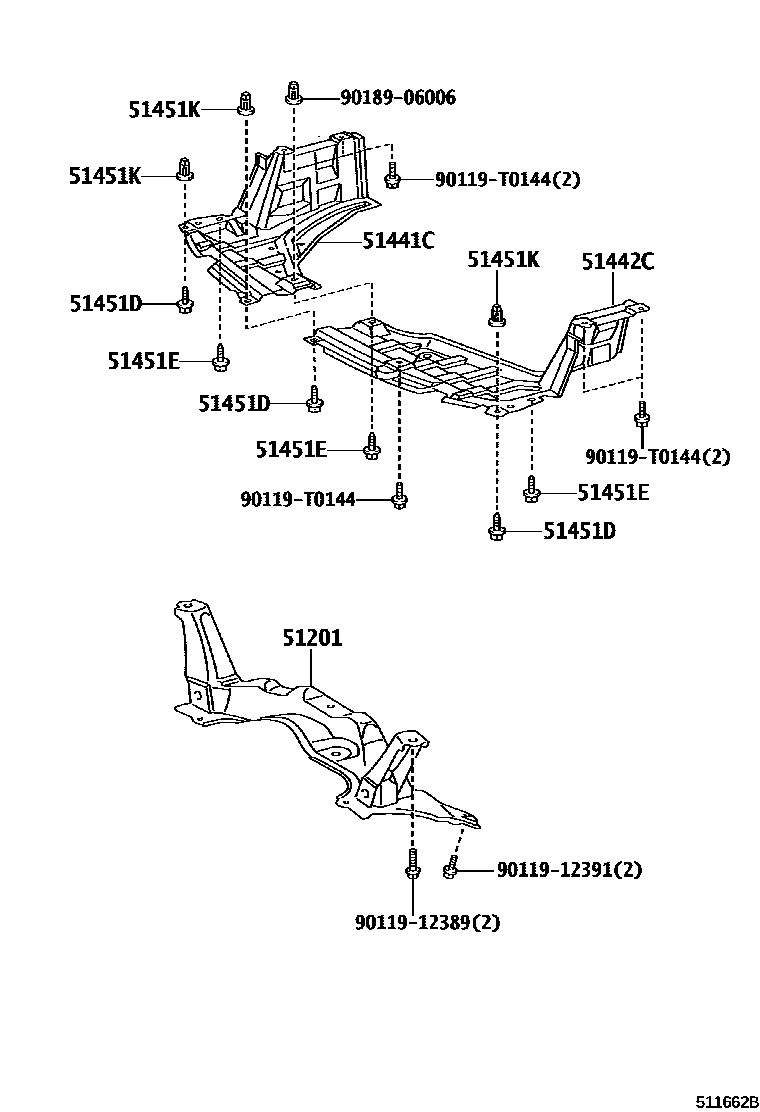

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0D110iNCP9#200702-201004

main51201-0D111iNCP9#201005-201306

main51201-0D150iNCP93201307-201403

51441CCOVER, ENGINE UNDER, RH

main51441-0D120iNCP93..IDN,TH200702-201003

51442CCOVER, ENGINE UNDER, LH

main51442-0D040iNCP93..IDN,TH200702-201003

51451DSCREW, NO.1

main90159-T0008×3iNCP9#200702-201004

51451ESCREW, NO.2

main90159-T0008×3iNCP9#200702-201004

51451KGROMMET, SCREW, NO.1

main90189-06076×3iNCP9#200702-201004

9011912389

main90119-12389

9011912391

main90119-12391

90119T0144

main90119-T0144

9018906006

main90189-06006

10 parts on this diagram · 1 diagram in section
