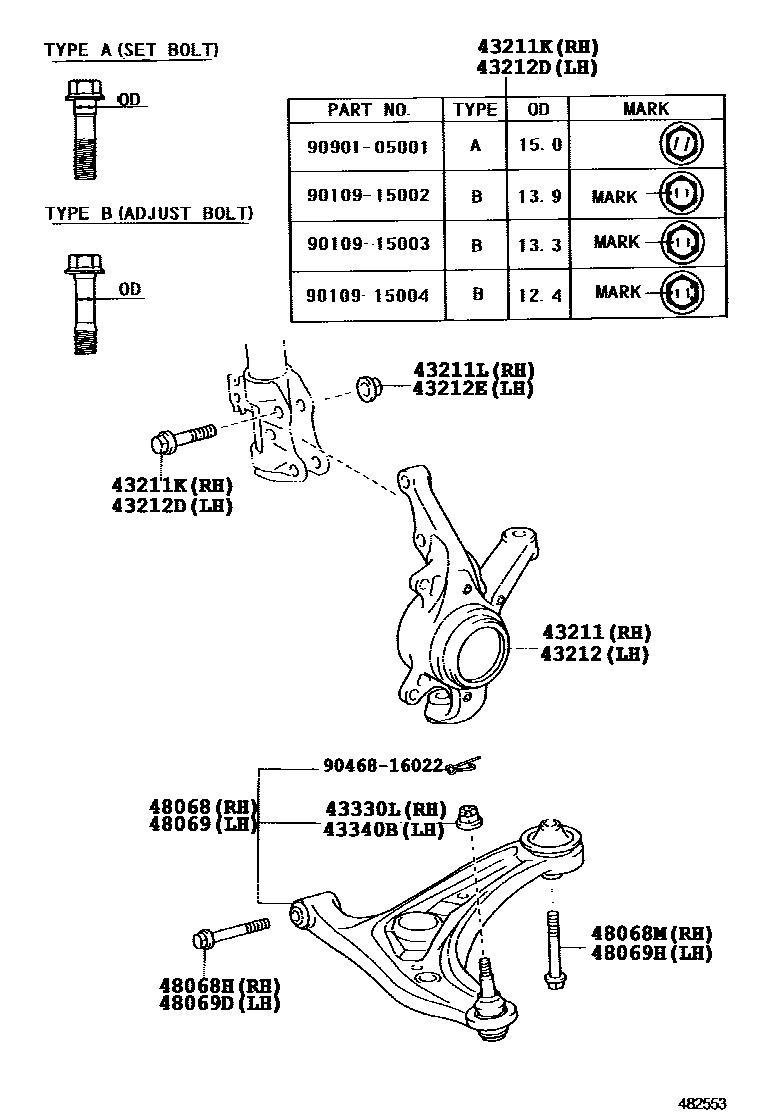

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0D170iNCP9#..(13E,15G,E,G,J,S)..(MA,PH,VN)200702-201004

main43211-0D180iNCP9#..MTM..(13J,15J,LIMO)201003-201403

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001×2iNCP93..IDN,TH200702-201003

OD=15

main90109-15002iNCP93..IDN,TH200702-201003

OD=13.9

main90109-15003iNCP9#..MA,PH,VN200702-201004

OD=13.3

main90109-15004iNCP93..IDN,TH200702-201003

OD=12.4

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004×2iNCP93..IDN,TH200702-201003

43212KNUCKLE, STEERING, LH

main43212-0D170iNCP93..RHD..MTM..(15J,LIMO)200702-200805

main43212-0D180iNCP9#..LHD..(13J,LIMO)200708-201004

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001×2iNCP9#201003-201403

OD=15

main90109-15002iNCP9#..MA,PH,VN200702-201004

OD=13.9

main90109-15003iNCP9#201003-201403

OD=13.3

main90109-15004iNCP93..IDN,TH200702-201003

OD=12.4

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004×2iNCP9#201003-201403

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNCP93..IDN,TH200702-201003

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNCP9#..MA,PH,VN200702-201004

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-09080iNCP9#200702-200811

main48068-09081iNCP93..IDN,TH200811-201003

main48068-09170iNCP93..MA201301-201310

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iNCP9#201003-201403

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14126iNCP93..IDN,TH200702-201003

main90119-14144iNCP9#201201-201403

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-09070iNCP9#200702-200811

main48069-09071iNCP93..IDN,TH200811-201003

main48069-09160iNCP93..MA201301-201310

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iNCP93..IDN,TH200702-201003

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14126iNCP93..IDN,TH200702-201003

main90119-14144iNCP9#201201-201403

9046816022

main90468-16022

15 parts on this diagram · 1 diagram in section
