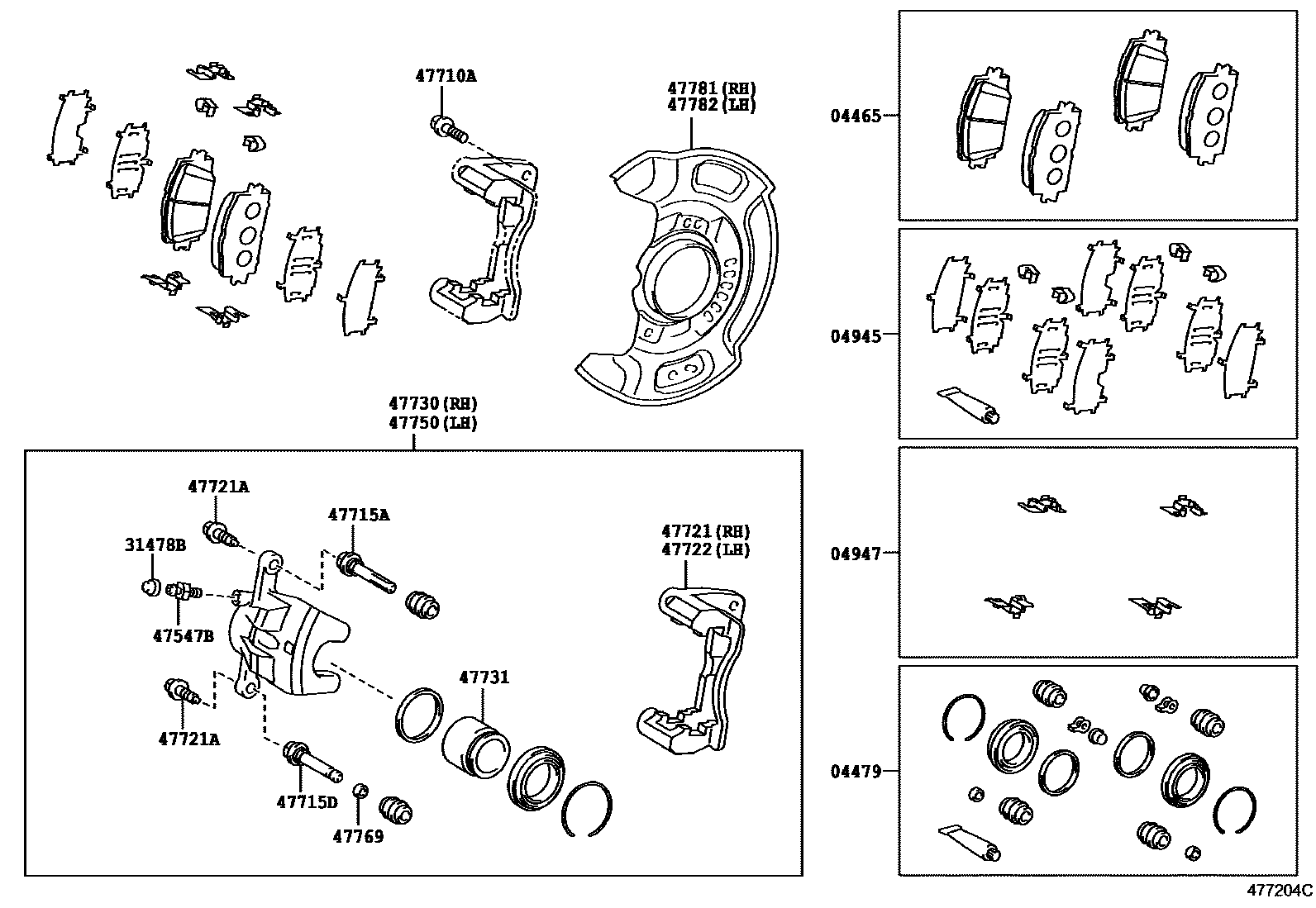

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0D140iNCP93..LIMO..VN;NCP9#..(13E,13J,15E,15J,E,J,LIMO)..(IDN,MA,PH,TH)201203-201403

MARK AK PA563H

main04465-52240iNCP93..15G..TH200702-201003

MARK ADVICS PV565H,SINGAPORE & BRUNEI SPEC

main04465-52260iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J)..TH200702-201003

MARK AK PA563H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D070iNCP93..15G..TH200702-200807

SINGAPORE & BRUNEI SPEC

main04478-0D080iNCP93..(15E,15G,15J,E,J)..(MA,TH);NCP9#..(13E,13J,15E,LIMO)..(IDN,PH,VN)200702-200807

main04478-0D130iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J)..TH200807-201003

sub04478-0D131

main04478-0D140iNCP93..E..VN;NCP93..(15G,G,S)..(MA,PH,VN)200807-201004

sub04478-0D141

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0D040iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

main04945-0D050iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J)..TH200702-201003

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0D030iNCP9#201003-201403

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iNCP93..ATM..15E201003-201104

W(REAR DISK BRAKE)

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-0D030×2iNCP9#201104-201403

main47547-20010×2iNCP93..IDN,TH200702-201003

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12352×4iNCP9#200702-201004

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190×2iNCP93..IDN,TH200702-201003

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-22070×2iNCP9#201003-201104

main47715-33340×2iNCP9#201104-201403

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0D100iNCP93..LIMO..VN;NCP9#..(13E,13J,15E,15J,E,J,LIMO)..(IDN,MA,PH,TH)201003-201403

main47721-0D110iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA603×4iNCP9#..MA,PH,VN200702-201004

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0D100iNCP93..LIMO..VN;NCP9#..(13E,13J,E,J)..(MA,PH)200702-201004

main47722-0D110iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D100iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J)..TH200702-201003

main47730-0D110iNCP93..E..VN;NCP93..(15G,G,S)..(MA,PH,VN)200702-201004

47731PISTON, FRONT DISC BRAKE

main47731-0D100×2iNCP93..LIMO..VN;NCP9#..(13E,13J,15E,15J,E,J,LIMO)..(IDN,MA,PH,TH)201003-201403

main47731-0D110×2iNCP93..E..VN;NCP93..(15G,G,S)..(MA,PH,VN)200702-201004

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D100iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J)..TH200702-201003

main47750-0D110iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-06040×2iNCP93..IDN,TH200702-201003

sub47769-0K220

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D070iNCP9#200702-201004

sub47781-52030

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0D070iNCP9#200702-201004

sub47782-52030

18 parts on this diagram · 1 diagram in section
