PARKING BRAKE & CABLE

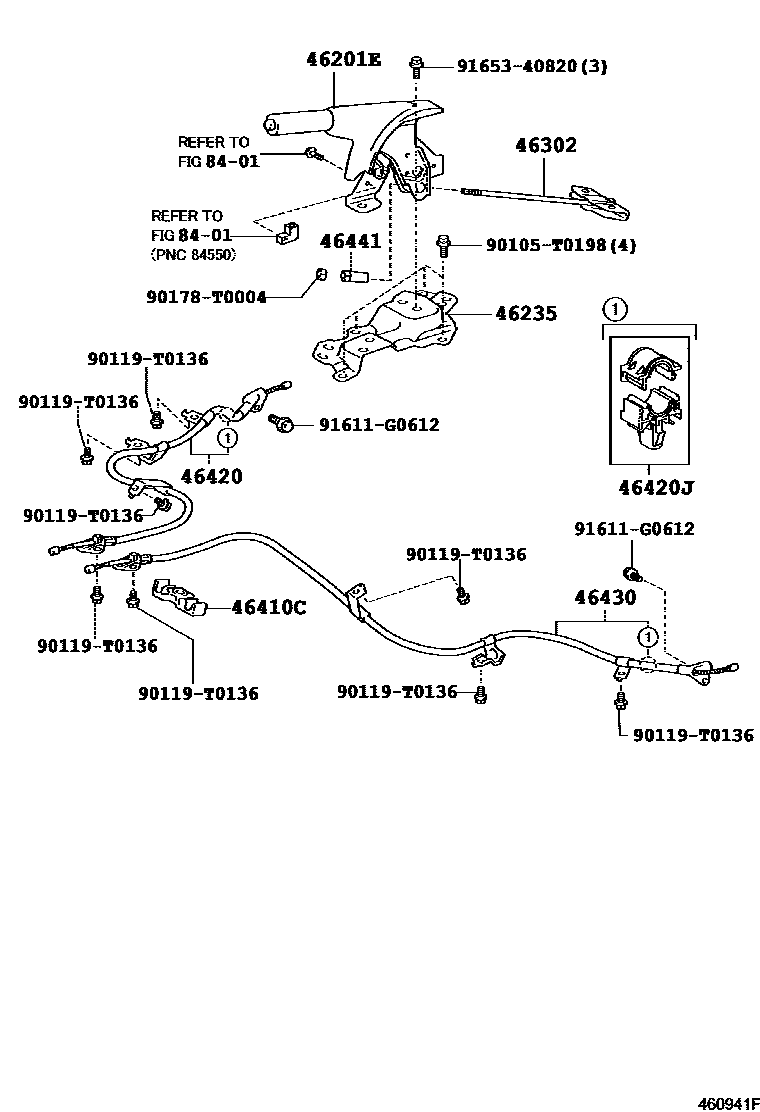

Parts diagram

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D110-B0i200702-201003

DK.GRAY,TRIM1#,4#

main46201-0D110-E0i201003-201006

ASH BROWN,TRIM4#

main46201-0D111-B0i201006-201403

DK.GRAY,TRIM1#

main46201-0D111-E0i201006-201304

ASH BROWN,TRIM4#

main46201-0D120-B0i200702-201003

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; SINGAPORE & BRUNEI SPEC,DK.GRAY,TRIM1#

main46201-0D120-E0i201004-201006

ASH BROWN,TRIM4#

main46201-0D121-B0i201006-201310

DK.GRAY,TRIM1#

main46201-0D121-E0i201006-201403

ASH BROWN,TRIM4#

main46201-0D181-E0i201003-201005

ASH BROWN,TRIM4#

main46201-0D182-E0i201006-201304

ASH BROWN,TRIM4#,(L)

main46201-0D191-B0i201003-201005

DK.GRAY,TRIM1#

main46201-0D191-E0i201003-201005

ASH BROWN,TRIM4#

main46201-0D192-B0i201006-201307

DK.GRAY,TRIM1#

main46201-0D192-E0i201006-201403

ASH BROWN,TRIM4#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-0D020i201003-201403

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-0D030i200702-201003

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D020i200702-201003

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D120i201003-201301

main46420-0D121i201302-201403

main46420-0D130i200702-201004

main46420-0D131i201302-201403

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030×2i200702-201004

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D120i201003-201403

main46430-0D130i200702-201003

SINGAPORE & BRUNEI SPEC

46441NUT, WIRE ADJUSTING, NO.1

main46441-0D030i200702-201003

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0198

main90105-T0198

90119T0136

main90119-T0136

90178T0004

main90178-T0004

91611G0612

main91611-G0612

9165340820

main91653-40820

14 parts on this diagram · 1 diagram in section
