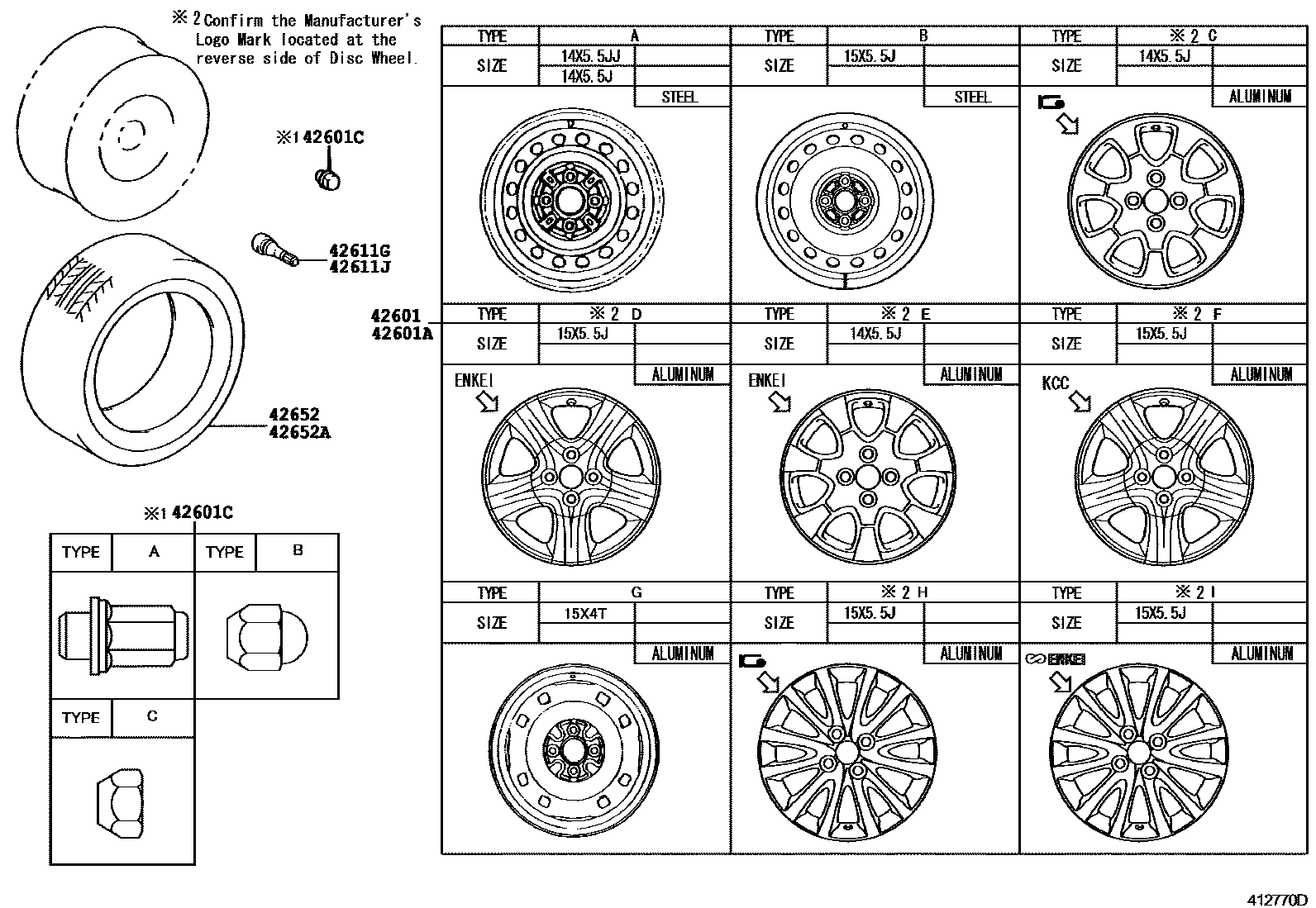

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X5.5JJ, #,J-ECO PACKAGE,TYPE A:REFER ILLUST.; 14X5.5JJ, #,TYPE A:REFER ILLUST.
14X5.5JJ, #,J-ECO PACKAGE,TYPE A:REFER ILLUST.; 14X5.5JJ, #,TYPE A:REFER ILLUST.
main42611-0D330×4iNCP93..MTM..15E..TH;NCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G,15S)200702-201003
15X5.5J, #,TYPE D:REFER ILLUST.
15X5.5J, #,TYPE B:REFER ILLUST.
14X5.5J, #,TYPE E:REFER ILLUST.
14X5.5J, #,TYPE E:REFER ILLUST.
14X5.5J, #,TYPE C:REFER ILLUST.
15X5.5J, #,TYPE D:REFER ILLUST.
15X5.5J, #,TYPE D:REFER ILLUST.
14X5.5J, #,TYPE A:REFER ILLUST.
main42611-0D470×4iNCP93..MTM..15E..TH;NCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G,15S)200805-201003
15X5.5J, #,TYPE F:REFER ILLUST.
15X5.5J,#,*301 TYPE I:REF ILL.
15X5.5J,#,TYPE H:REFER ILLUST.
15X5.5J,#,TYPE H:REFER ILLUST.
15X5.5J, #,TYPE H:REFER ILLUST.
15X5.5J, #,TYPE H:REFER ILLUST.
15X5.5J, #,TYPE H:REFER ILLUST.
15X5.5J, #,TYPE I:REFER ILLUST.
15X5.5J, #,TYPE I:REFER ILLUST.
15X5.5J, #,SINGAPORE & BRUNEI SPEC,TYPE B:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
14X5.5JJ, #,J-ECO PACKAGE,TYPE A:REFER ILLUST.; 14X5.5JJ, #,TYPE A:REFER ILLUST.
14X5.5JJ, #,J-ECO PACKAGE,TYPE A:REFER ILLUST.; 14X5.5JJ, #,TYPE A:REFER ILLUST.
15X5.5J, #,TYPE D:REFER ILLUST.
15X5.5J, #,SINGAPORE & BRUNEI SPEC,TYPE B:REFER ILLUST.; 15X5.5J, #,TYPE B:REFER ILLUST.
15X5.5J, #,TYPE B:REFER ILLUST.
14X5.5J, #,TYPE E:REFER ILLUST.
14X5.5J, #,TYPE C:REFER ILLUST.
15X5.5J, #,TYPE D:REFER ILLUST.
14X5.5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,TYPE F:REFER ILLUST.
15X5.5J,#,TYPE H:REFER ILLUST.
15X5.5J,#,TYPE H:REFER ILLUST.
15X5.5J, #,TYPE H:REFER ILLUST.
15X5.5J, #,TYPE H:REFER ILLUST.
15X5.5J, #,TYPE H:REFER ILLUST.
15X5.5J, #,TYPE I:REFER ILLUST.
15X5.5J, #,TYPE I:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE C:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
175/65R14,GOODYEAR
175/65R14,*D/L
175/65R14,*D/L
185/60R15,*B/S
185/60R15,*B/S
175/65R14,*D/L
175/65R14,GOODYEAR
175/65R14,GOODYEAR
175/65R14,GOODYEAR
185/60R15,*Y/H
main42652-0D850×4supersedes 42652-0D561iNCP93..MTM..15E..TH;NCP93..ATM..(IDN,TH);NCP93..MTM..15G..IDN; NCP93..MTM..15J200805-201003
185/60R15,*D/L; 185/60R15,*D/L,SINGAPORE & BRUNEI SPEC
175/65R14 *D/L
175/65R14 *D/L
42652ATIRE (FOR SPARE)
175/65R14,GOODYEAR
175/65R14,*D/L
175/65R14,*D/L
185/60R15,*B/S; 185/60R15,*B/S,SINGAPORE & BRUNEI SPEC
185/60R15,*B/S
main42652-0D700iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J)..TH; NCP93..ATM..15J; NCP93..MTM..15E..TH;NCP93..ATM..(15E,15G,15J)..TH200702-200805
175/65R14,*D/L; 175/65R14,*D/L,J-ECO PACKAGE; 175/65R14,*D/L,SINGAPORE & BRUNEI SPEC
175/65R14,GOODYEAR
175/65R14,GOODYEAR
175/65R14,GOODYEAR
185/60R15,*Y/H
185/60R15,*D/L; 185/60R15,*D/L,SINGAPORE & BRUNEI SPEC
175/65R14 *D/L
175/65R14 *D/L
7 parts on this diagram · 4 diagrams in section
