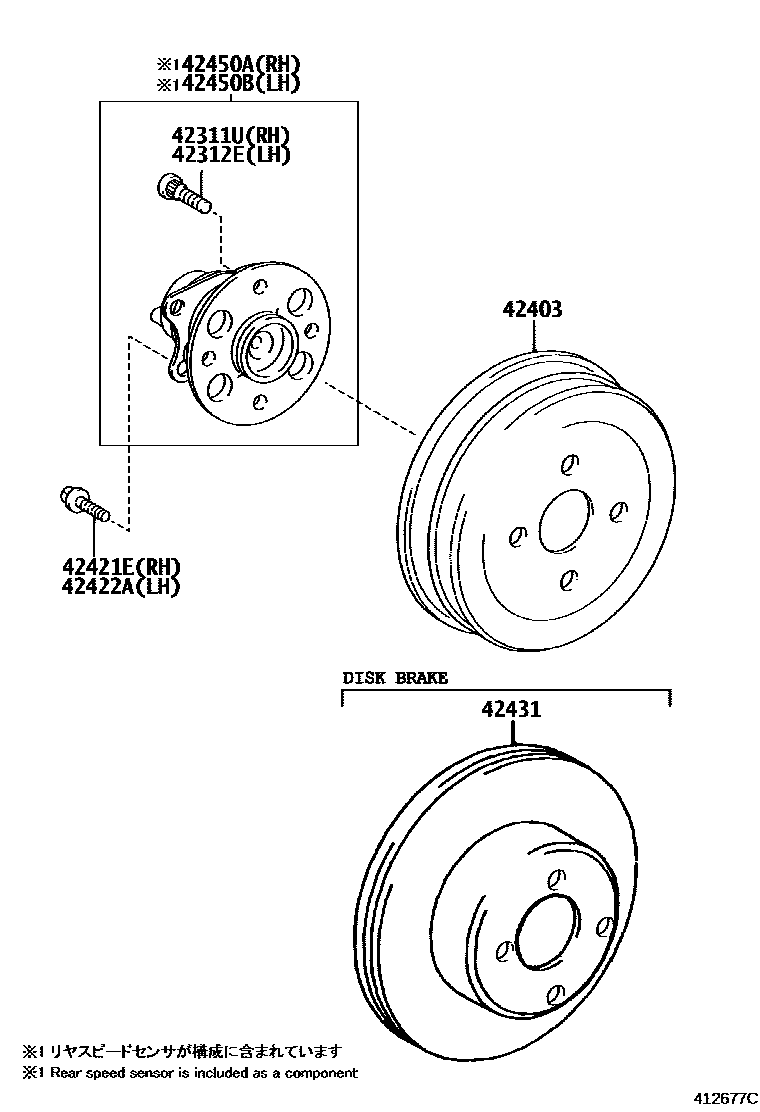

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×4iNCP9#200702-201004

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×4iNCP9#200702-201004

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0D100×2iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J)..TH200702-201003

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iNCP9#200702-201004

main90105-T0187×4iNCP9#201303-201403

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iNCP9#200702-201004

main90105-T0187×4iNCP9#201303-201403

42431DISC, REAR

main42431-0D110×2iNCP93..15G..TH; NCP93..15S;NCP93..15G..IDN200702-201003

SINGAPORE & BRUNEI SPEC

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0D040iNCP9#..LHD..(13J,LIMO)200708-201004

main42450-0D060iNCP93..LIMO..IDN;NCP9#..13E,15E,15G,15J,15S,E,G,J,S200702-200712

main42450-0D080supersedes 42410-52070iNCP93..RHD..MTM..(15J,LIMO)200712-200805

main42410-52070iNCP93..ATM..15J; NCP93..MTM..15J201003-201006

J-ECO PACKAGE

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0D040iNCP9#..LHD..(13J,LIMO)200708-201004

main42450-0D060iNCP93..LIMO..IDN;NCP9#..13E,15E,15G,15J,15S,E,G,J,S200702-200712

main42450-0D080supersedes 42410-52070iNCP93..RHD..MTM..(15J,LIMO)200712-200805

main42410-52070iNCP93..ATM..15J; NCP93..MTM..15J201003-201006

J-ECO PACKAGE

8 parts on this diagram · 1 diagram in section
