30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-T0225×7i200702-201004

*10-1.25PX45-30

main91612-61045×7i201003-201403

*10-1.25PX45-30,(J)

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-0D030i201003-201304

J-ECO PACKAGE,(L)

main33117-52030i201003-201304

J-ECO PACKAGE,(J)

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90119-T0070×2i200805-201003

J-ECO PACKAGE

main91621-G0818×2i201003-201304

J-ECO PACKAGE,(J)

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-0D010i201003-201403

(L)

main33403-0D020i201004-201307

(L)

main33403-20230i201003-201403

(J)

main33403-35230i201004-201307

(J)

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main90301-T0044i200702-201004

main96711-24018i201003-201403

(J)

main96711-24030i201004-201307

34365ARETAINER, OUTER RACE

main34365-52012i201003-201403

main34365-52020i201004-201307

35012HOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-12010i200702-201004

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-0D040i200702-201003

main35013-52140i201004-201307

main35013-52150i201004-201403

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52020i201003-201403

main35102-52030i201004-201307

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08365×11i200702-201003

*8-1.25PX28-20

main90105-08375×9i201004-201307

*8-1.25PX25-25

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001×4i201003-201403

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×4i200702-201003

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-14007i200702-201003

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-0D040i201003-201403

main35103-52140i201004-201307

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03156i201004-201307

main90930-03166i201003-201403

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-52031i200702-201003

main35104-52032i201003-201403

main35104-52090i201004-201307

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×5i201003-201403

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×5i200702-201003

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×2i200702-201003

main90250-10034×4i201004-201307

35104XRING, O (FOR BREATHER PLUG)

main90301-06005i201003-201307

main90301-06021i201307-201403

main90301-08015i201004-201307

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011i201004-201307

main90341-18016i200702-201003

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010i201004-201307

main90430-18008i200702-201003

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-52020i200702-201003

main35106-52030i201004-201307

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18i201004-201307

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08071×14i200702-201003

*8-1.25PX30-25

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35145CGASKET, TRANSAXLE CASE

main35145-21010×5i200702-201003

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-12020×4i201004-201307

main35149-21010i200702-201004

35159GASKET, BRAKE DRUM

main35159-21010i200702-201003

main35159-52010i201004-201307

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52010i201004-201307

main35165-52030i200702-201003

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-52010i201004-201307

main35168-52020i200702-201003

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2i200702-201003

main90301-06008×2i201003-201004

main90301-06024×2i201307-201403

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173i201003-201403

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2i200702-201003

main35394-48010×2i201004-201307

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030i201004-201307

main35519-41010i201003-201403

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9161160628

main91611-60628

9167180616

main91671-80616

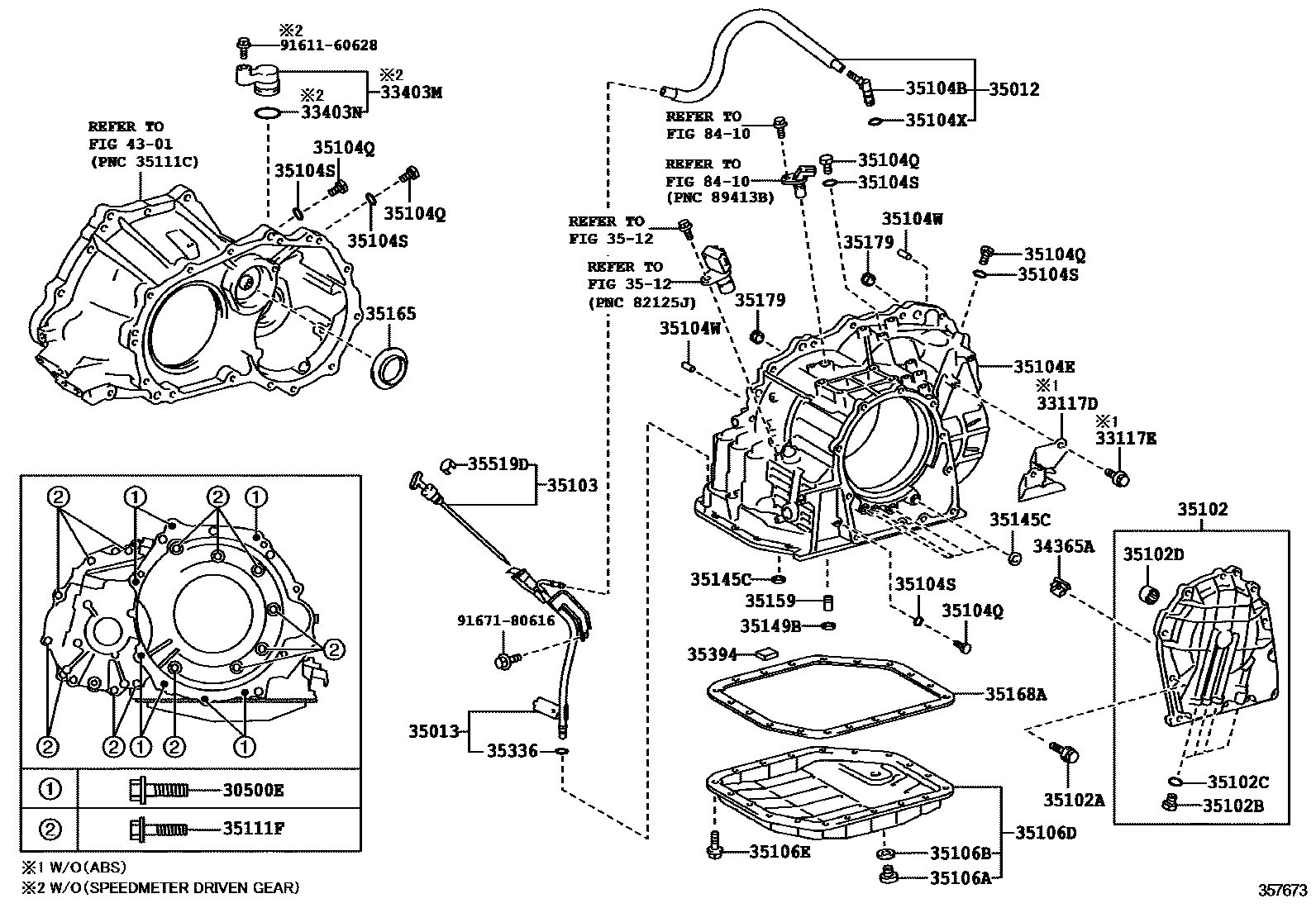

TRANSMISSION CASE & OIL PAN (ATM)
