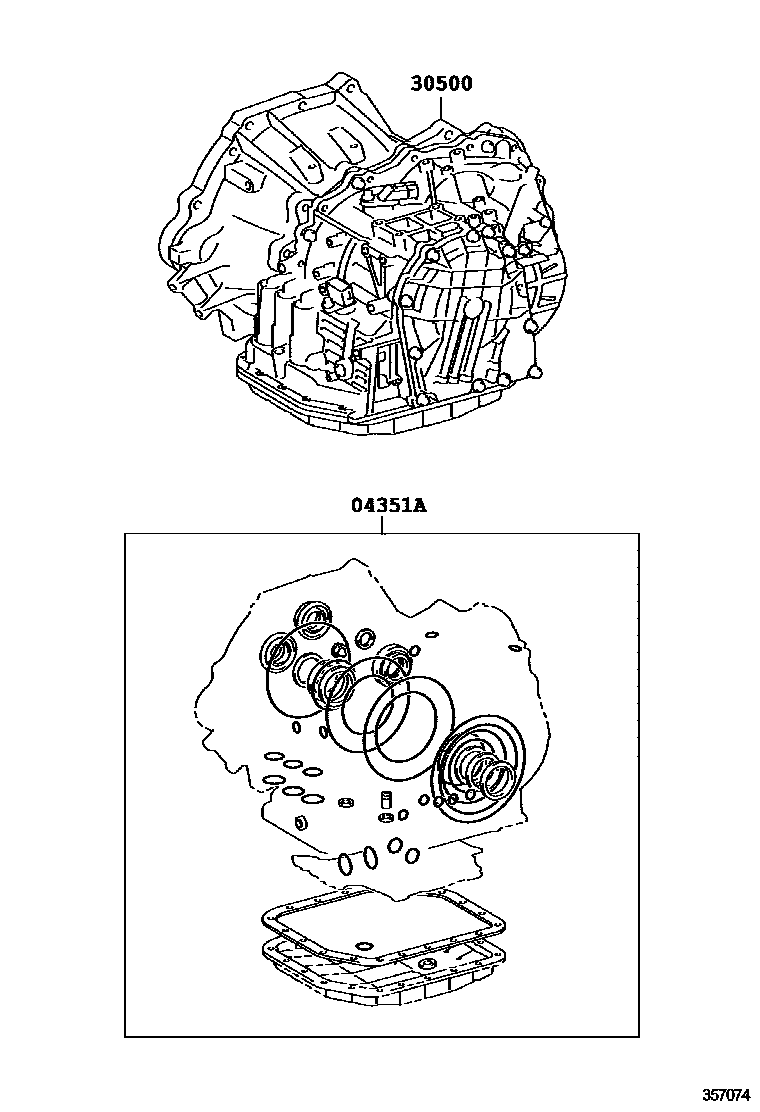

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U340E 0002 1U441E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-52370iNCP93..ATM200702-200902

main04351-52510iNCP93..ATM200902-201003

main04351-52511iNCP93..ATM..(MA,PH,VN)201003-201004

main04351-52512iNCP93..ATM201201-201307

main04351-52513iNCP93..ATM201307-201401

main04351-52540iNCP92..ATM201004-201307

30500TRANSAXLE ASSY, AUTOMATIC

main30500-52332iNCP93..ATM..(IDN,TH)201003-201304

U340E

main30500-52450iNCP93..ATM..(MA,PH,VN)200904-201004

U340E

main30500-52470iNCP92..ATM201004-201307

U441E

2 parts on this diagram · 2 diagrams in section
