TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

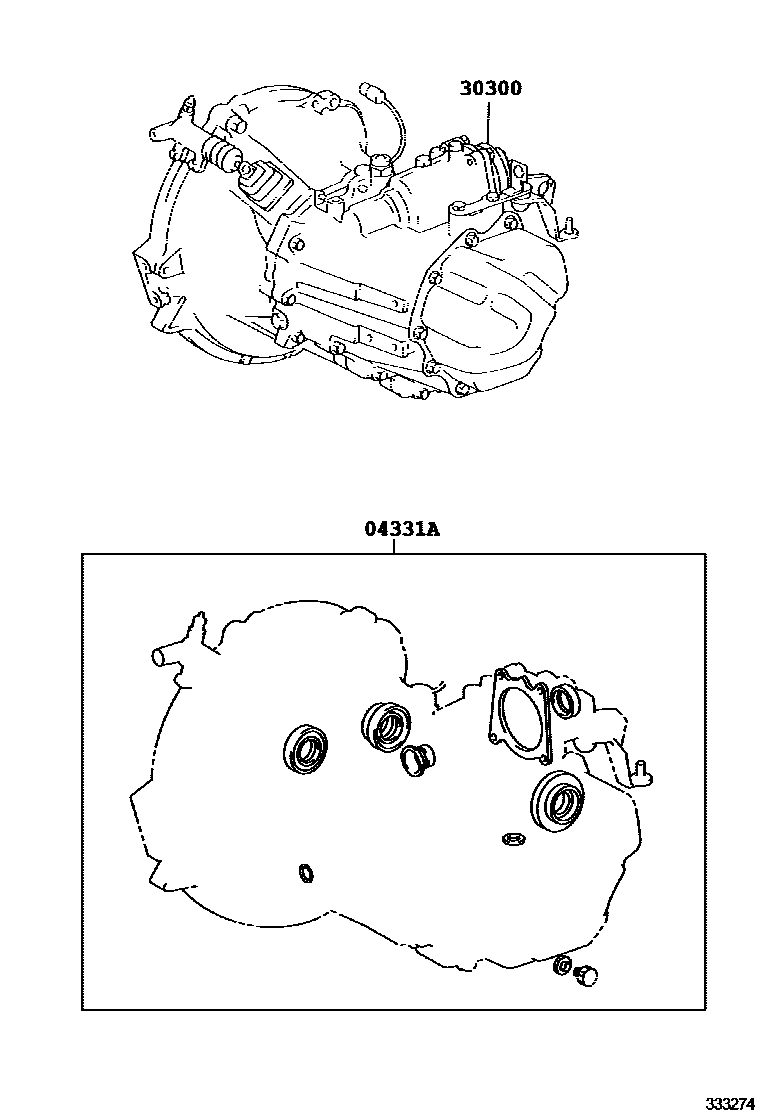

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12690i200708-201403

main04331-52520i200702-200707

30300TRANSAXLE ASSY, MANUAL

main30300-52480i200702-201403

C50

main30300-52490i200708-201307

C54

2 parts on this diagram · 1 diagram in section
