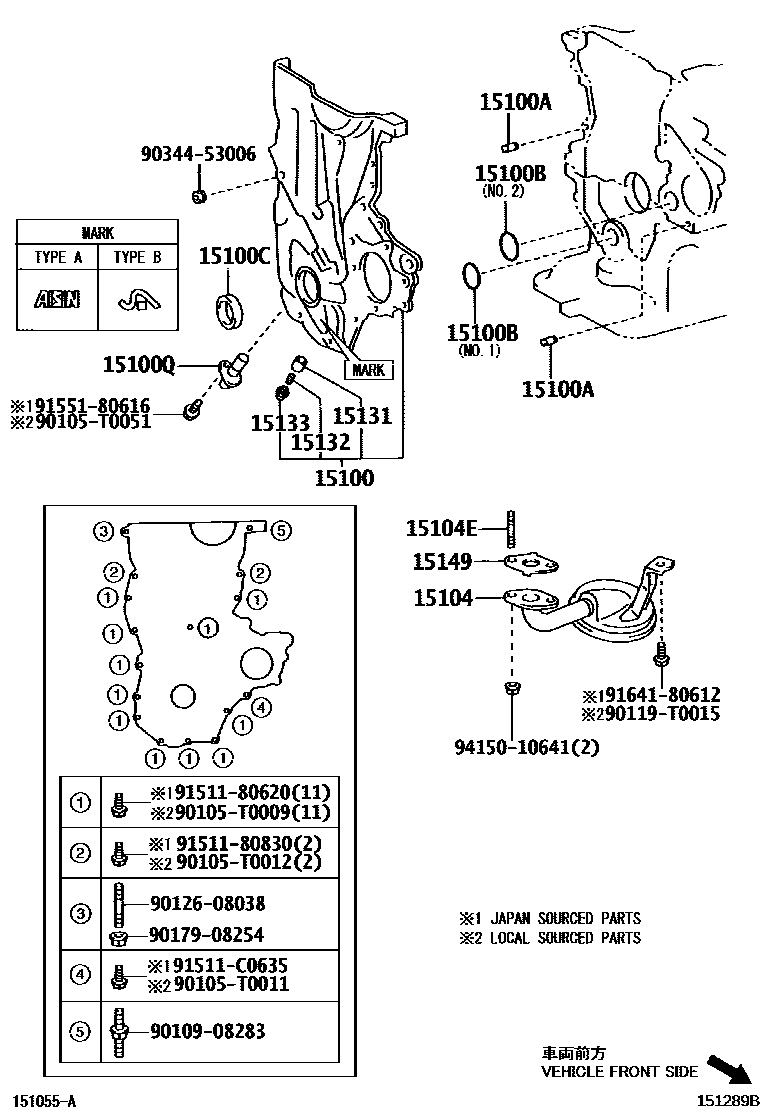

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-0M010i1NZFE..NCP93..IDN,TH200702-201003

(L)

main15100-0M011i1NZFE..NCP93201205-201403

(L)

main15100-21030i2NZFE..NCP92200708-201004

main15100-21032i2NZFE..NCP92201111-201307

main15100-21040i1NZFE..NCP93..IDN,TH200702-201003

(J)

main15100-21042i1NZFE..NCP93201112-201205

TYPE A:REFER ILLUST.

main15100-21043i1NZFE..NCP93201205-201403

(J)

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003×2i1NZFE,2NZFE..NCP9#201003-201403

15100BRING, O(FOR OIL PUMP)

main11497-21010i2NZFE..NCP92201111-201307

NO.2

main12151-21010i2NZFE..NCP92201111-201307

NO.1

main90301-31012i1NZFE..NCP93..IDN,TH200702-201003

NO.1,(J)

main90301-42006i1NZFE..NCP93..IDN,TH200702-201003

NO.2,(J)

main90301-T0040i1NZFE..NCP93..MA,PH,VN200702-201004

NO.2,(L)

main90301-T0042i1NZFE..NCP93..IDN,TH200702-201003

NO.1,(L)

15100CSEAL(FOR OIL PUMP)

main90080-31088i1NZFE..NCP93..MA,PH,VN200702-201004

(L)

main90311-25021i1NZFE..NCP93..IDN,TH200702-201003

(J)

main90311-25032i2NZFE..NCP92201204-201307

main90311-T0055i1NZFE..NCP93201211-201403

(L)

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFE..NCP93..IDN,TH200702-201003

main90919-05081i2NZFE..NCP92201105-201305

main90919-05087i2NZFE..NCP92201305-201403

15104STRAINER SUB-ASSY, OIL

main15104-0M030i1NZFE..NCP93201003-201403

(L)

main15104-21022i1NZFE..NCP93..MA,PH,VN200710-201004

(J)

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021×2i1NZFE..NCP93..IDN,TH200702-201003

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE..NCP93..IDN,TH200702-201003

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0M010i1NZFE..NCP93201003-201403

TYPE B:REFER ILLUST.

main15132-21020i2NZFE..NCP92201004-201307

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21020i1NZFE..NCP93..IDN,TH200702-201003

TYPE B:REFER ILLUST.

main15133-21030i2NZFE..NCP92200708-201004

15149GASKET, OIL STRAINER FLANGE

main16258-0M010i1NZFE..NCP93201211-201403

(L)

main16258-21030i1NZFE..NCP93..IDN,TH200702-201003

90105T0009

main90105-T0009

90105T0011

main90105-T0011

90105T0012

main90105-T0012

90105T0051

main90105-T0051

9010908283

main90109-08283

90119T0015

main90119-T0015

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9151180620

main91511-80620

9151180830

main91511-80830

91511C0635

main91511-C0635

9155180616

main91551-80616

9164180612

main91641-80612

9415010641

main94150-10641
