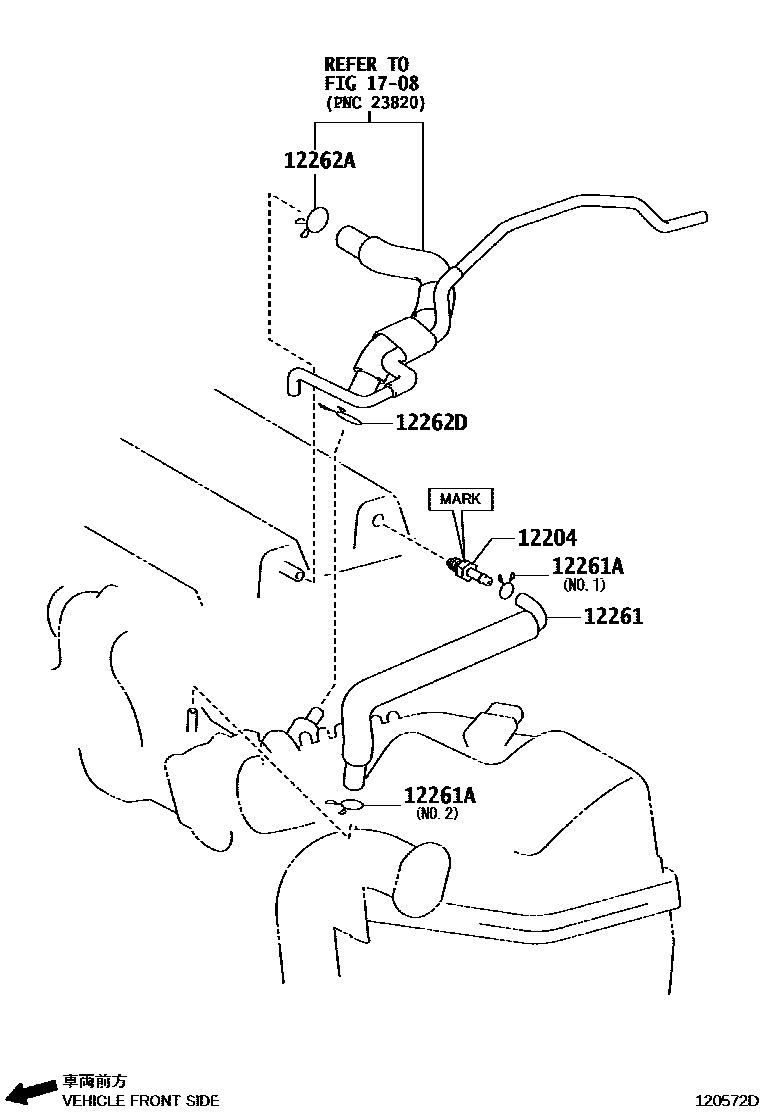

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-21011i1NZFE..NCP93200702-200902

MARK 12204-21011

main12204-21012i1NZFE..NCP93..IDN,TH200902-201003

MARK 12204-21012

main12204-21013i2NZFE..NCP92201304-201403

12261HOSE, VENTILATION

main12261-0M010i1NZFE..NCP93201003-201403

(L)

main12261-21030i1NZFE..NCP93..MA,PH,VN200702-201004

(J)

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-23003i2NZFE..NCP92201004-201307

NO.2

main90467-15120i1NZFE,2NZFE..NCP9#..MA,PH,VN200702-201004

NO.1

main90467-24038i1NZFE..NCP93..MA,PH,VN200702-201004

NO.2

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21152i1NZFE,2NZFE..NCP9#200702-201004

12262DCLIP(FOR VENTILATION HOSE NO.2)

main90466-T0027i1NZFE,2NZFE..NCP9#200702-201004

1708VACUUM PIPING

→ Go to FIG 17-08

6 parts on this diagram · 1 diagram in section
