ENGINE OVERHAUL GASKET KIT

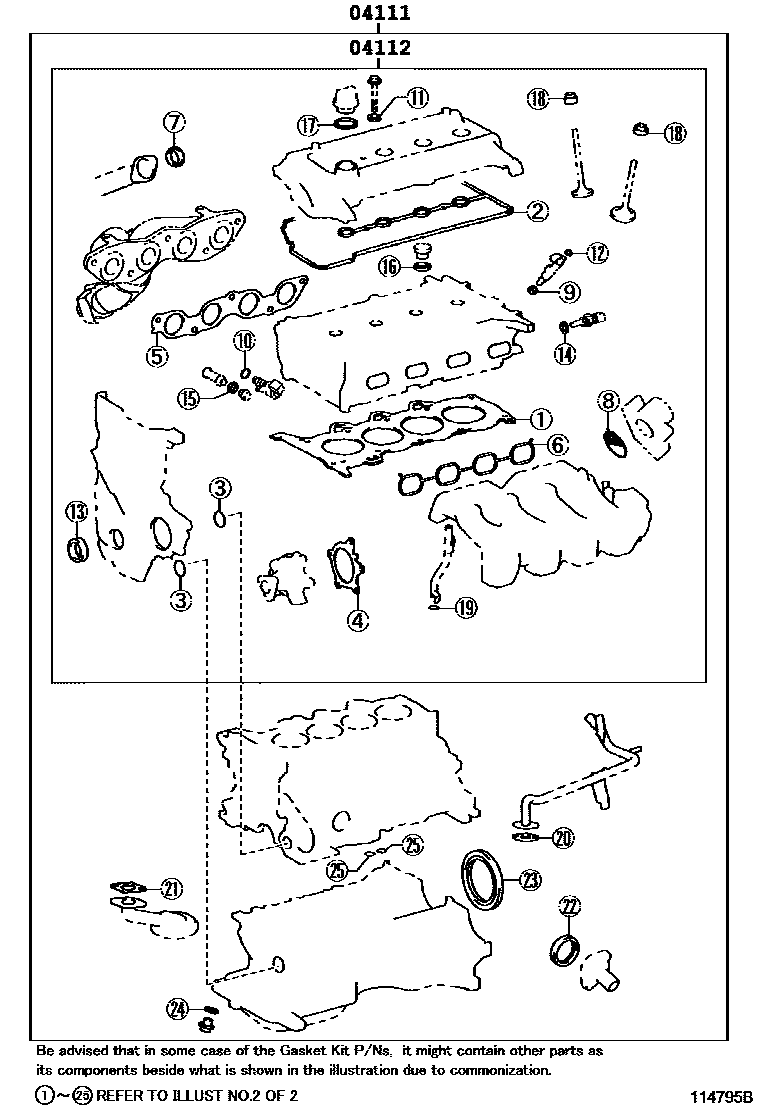

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0M108i201003-201211

main04111-0M109i201211-201311

main04111-0M111i200708-200901

main04111-0M112i201004-201011

main04111-0M113i201011-201107

main04111-0M140i201311-201401

main04111-21232i201004-201011

main04111-21233i201011-201107

main04111-21234i201107-201110

main04111-21235i201110-201111

main04111-21236i201111-201201

main04111-21237i201201-201204

main04111-21238i201204-201302

main04111-21239i201302-201307

main04111-21330i201107-201110

main04111-21331i201110-201111

main04111-21332i201111-201201

main04111-21333i201201-201204

main04111-21334i201204-201302

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0M096i200702-201004

main04112-0M097i201211-201311

main04112-0M098i201311-201401

main04112-0M101i201004-201011

main04112-0M102i201011-201107

main04112-21231i201004-201011

main04112-21232i201011-201107

main04112-21233i201107-201110

main04112-21234i201110-201111

main04112-21235i201111-201204

main04112-21236i201204-201302

main04112-21237i201302-201307

main04112-21330i201107-201110

main04112-21331i201110-201111

main04112-21332i201111-201204

main04112-21333i201204-201302

2 parts on this diagram · 2 diagrams in section
