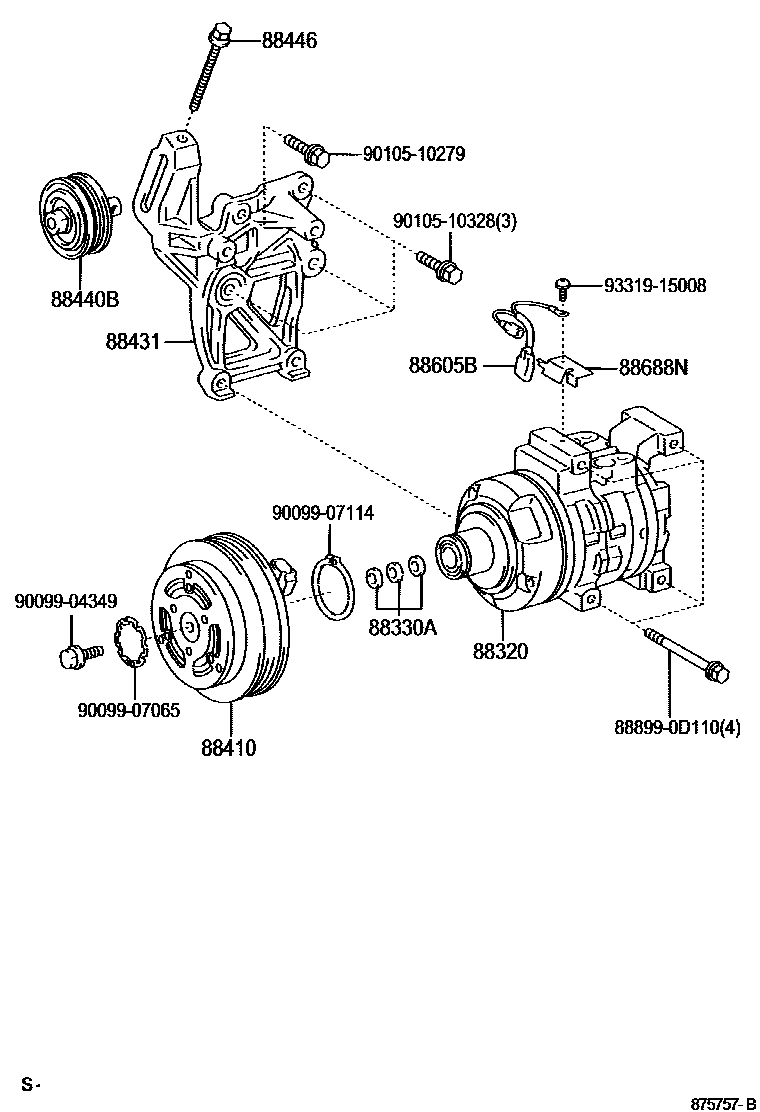

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88320COMPRESSOR ASSY, COOLER

main88320-0D020iNCP4#..MA,PHL,TH,VN200510

main88320-0D030iSCP4#200608

main88320-8C000iNCP42..TAIW200510-200801

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iAXP4#200511-200608

88410CLUTCH ASSY, MAGNET

main88410-0D030iNCP42..TAIW200303-200510

main88410-0D040iAXP4#200210-200404

main88410-0D070iNCP4#..MA,PHL,TH200212-200603

main88410-0D090iAXP4#200511-200608

main88410-0D120iSCP4#200608

main88410-0D140iNCP42200801

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0D020iAXP4#200210-200511

main88431-0D030iSCP4#200608

88440BPULLEY ASSY, IDLE

main88440-0D020iAXP4#200210-200511

88446BOLT, IDLE PULLEY

main88446-0D010iAXP4#200511-200608

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-0D050iAXP4#200210-200511

88688NBRACKET, COOLER

main88688-0D190iAXP4#200404-200511

main88688-25200iNCP42..MA,TAIW,TH,VN200212-200603

888990D110COVER, EVAPORATOR

main88899-0D110

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9010510279

main90105-10279

9010510328

main90105-10328

9331915008

main93319-15008

15 parts on this diagram · 3 diagrams in section
