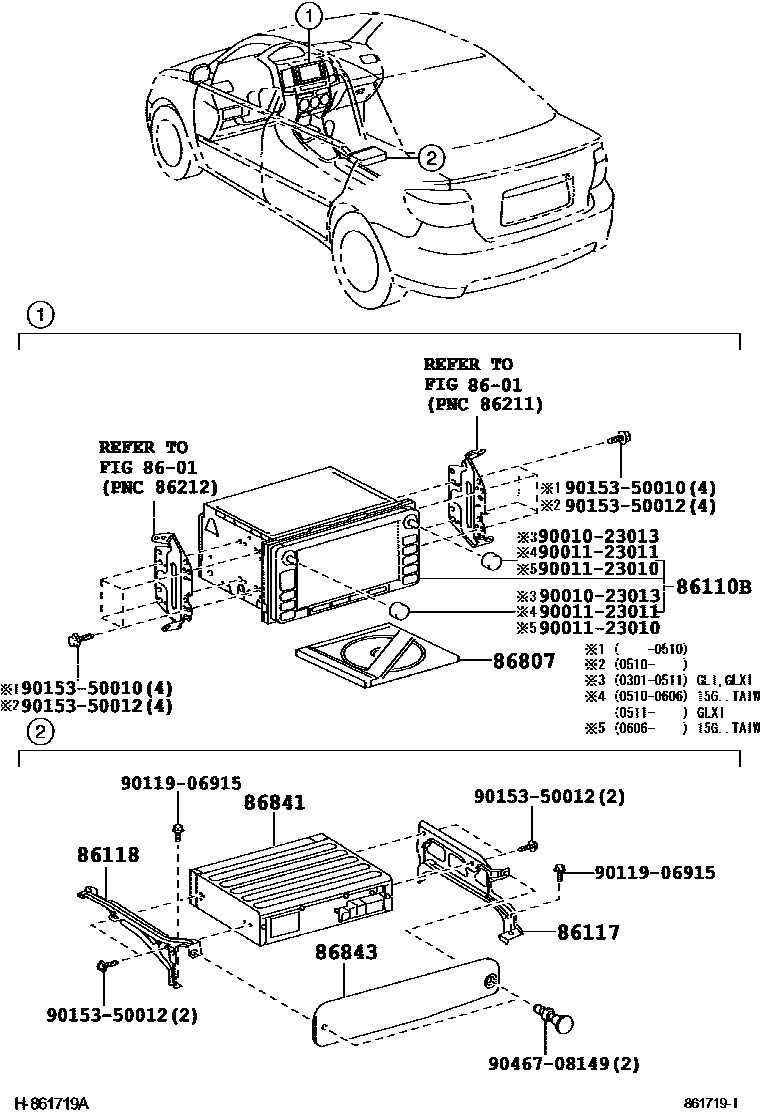

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86110BMULTI-DISPLAY ASSY

main86120-02500iAXP42..GLXI200511-200608

FUJITSU TEN,ID=18020

main86120-52130iAXP42..GLI,GLXI200210-200301

FUJITSU TEN,ID=18004

main86120-52131iAXP42..GLI,GLXI200301-200511

FUJITSU TEN,ID=18007

main86120-52720iNCP42..15G..TAIW200510-200709

FUJITSU TEN

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-0D010iAXP42..GLXI200511-200608

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-0D010iAXP42..GLI,GLXI200210-200511

86807DISC KIT, CD-ROM

main86807-0D010iAXP42..GLI,GLXI200210-200303

main86807-0D011iAXP42..GLI,GLXI200303-200311

main86807-0D012iAXP42..GLI,GLXI200311-200402

main86807-0D013iAXP42..GLI,GLXI200403-200409

main86807-0D014iAXP42..GLI,GLXI200410-200503

main86807-0D015iAXP42..GLI,GLXI200504-200509

main86807-0D016iAXP42..GLI,GLXI200510-200511

main86807-0N013iAXP42..GLXI200511-200602

main86807-0W021iAXP42..GLXI200603-200608

main86807-0W022iSCP42..GLXI200608

86841COMPUTER, NAVIGATION

main86841-33090iSCP42..GLXI200608

main86841-52010iAXP42..GLI,GLXI200210-200312

main86841-52011iAXP42..GLI,GLXI200312-200511

86843COVER, NAVIGATION COMPUTER

main86843-32010iAXP42..GLI,GLXI200210-200511

9001023013

main90010-23013

9001123010

main90011-23010

9001123011

main90011-23011

9011906915

main90119-06915

9015350010

main90153-50010

9015350012

main90153-50012

9046708149

main90467-08149

14 parts on this diagram · 1 diagram in section
