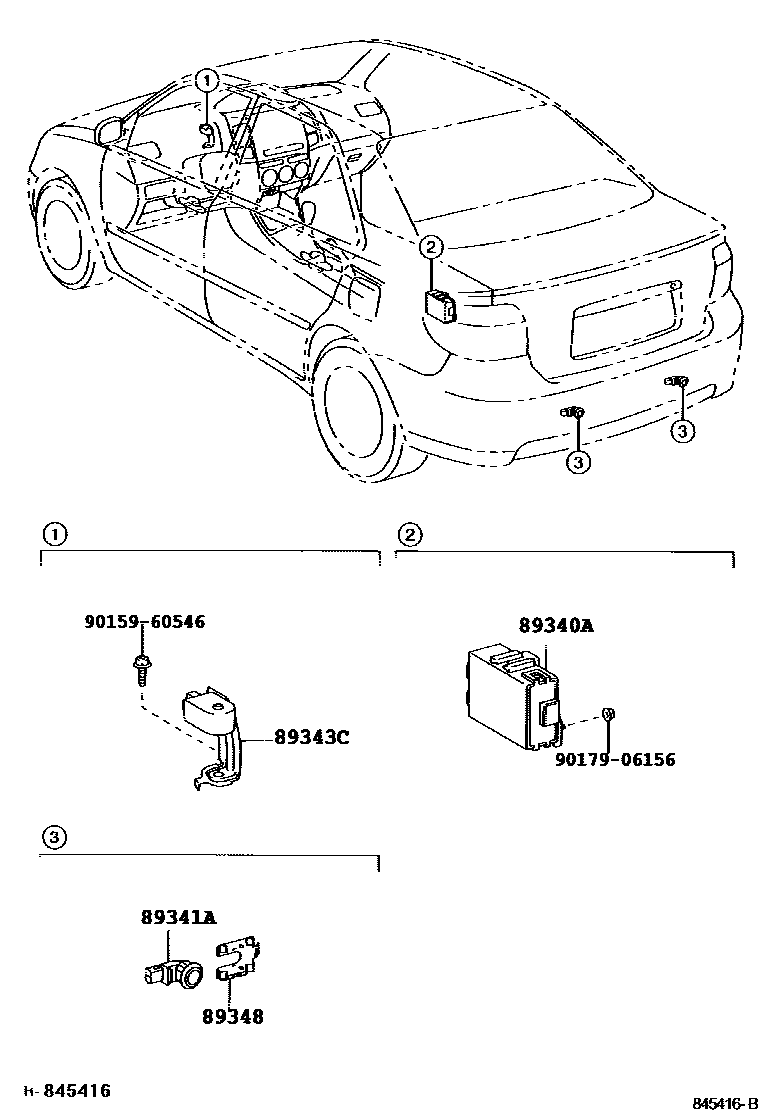

CLEARANCE & BACK SONAR

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-52010iNCP42..15G..TAIW200510-200709

89341ASENSOR, ULTRASONIC, NO.1

main89341-0M010×2iNCP42..15G..TAIW200409-200412

P/N LABEL=893410M010

main89341-0M020×2iNCP42..15G..TAIW200409-200412

P/N LABEL=893410M020

main89341-33050×2iNCP42..15G..TAIW200501-200510

P/N LABEL=8934133050

main89341-33060×2iNCP42..15G..TAIW200501-200510

P/N LABEL=8934133060

main89341-52010×2iNCP42..15G..TAIW200303-200409

P/N LABEL=8934152010

main89341-52020×2iNCP42..15G..TAIW200303-200409

P/N LABEL=8934152020

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-52010iNCP42..15G..TAIW200303-200510

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-45010×2iNCP42..15G..TAIW200510-200709

9015960546

main90159-60546

9017906156

main90179-06156

6 parts on this diagram · 1 diagram in section
