SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1IGNITION & COMBINATION SWITCH0012 1IGNITION & COMBINATION SWITCH0013 1DOOR,ROOF,FLOOR & LUGGAGE

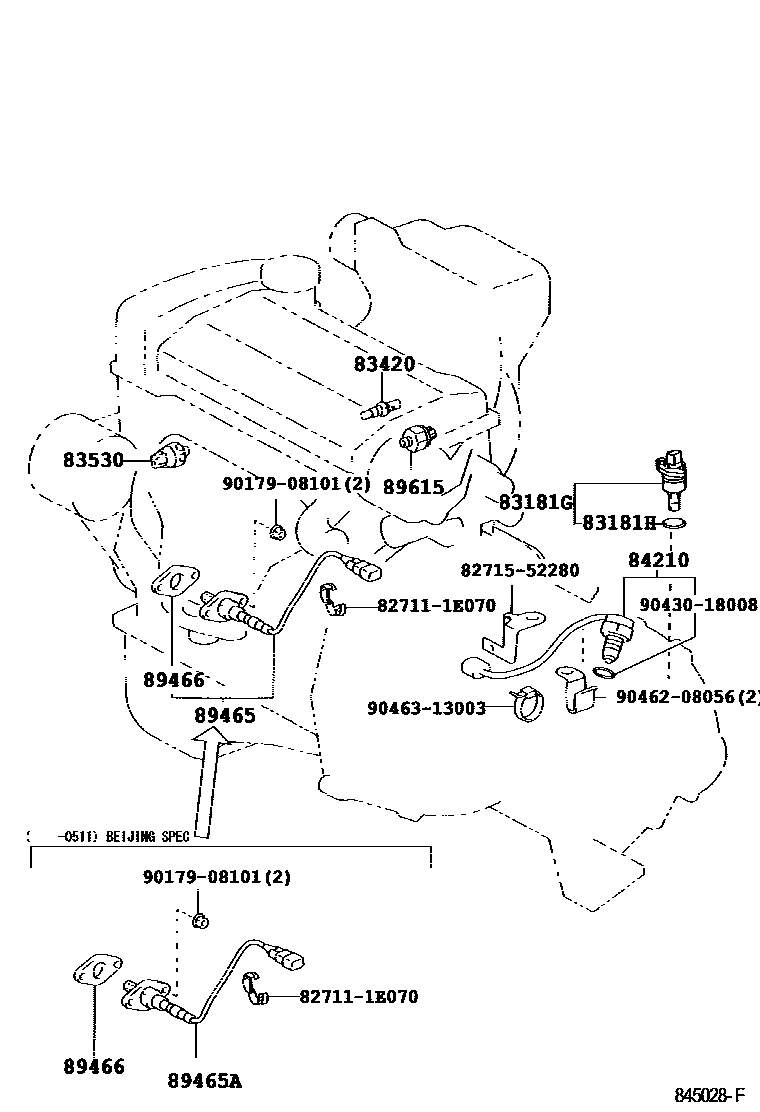

83181GSENSOR, SPEEDOMETER

main83181-12020iAXP4#..MTM200210-200709

main83181-12040iNCP42..15G..TAIW;NCP42..ATM..(15E,15J,15S)200212-200911

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iNCP42..ATM..PHL200212-200911

main96711-24030iAXP4#..MTM200210-200709

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iAXP4#200210-200608

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP4#200210-200608

DENSO

main83530-60020iSCP4#200210-200608

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNCP4#..MTM200212-200709

sub84210-52050

main84210-14040iAXP4#..MTM200210-200608

main84210-52040iSCP4#..MTM200608

89465SENSOR, OXYGEN

main89465-09420iAXP4#200511-200608

BEIJING SPEC

main89465-0D140iNCP4#..MA,PHL,TH,VN200411-200710

main89465-0D140iNCP42..TAIW200503-200510

(L)

main89465-0D170iSCP4#200608

main89465-20810iNCP42200710

main89465-52050iNCP42..TAIW200503-200510

(J)

main89465-52050iNCP4#..MA,PHL,TH,VN200212-200503

main89465-59035iAXP4#200210-200608

89465ASENSOR, OXYGEN NO.2

main89465-0D150iNCP4#..MA,PHL,TH,VN200411-200709

main89465-0D160iAXP4#200507-200511

main89465-0D180iSCP4#200608

main89465-52060iNCP4#..MA,PHL,TH,VN200212-200411

main89465-52530iNCP42200710

89466GASKET, OXYGEN SENSOR

main89466-20020iAXP4#200210-200608

89615SENSOR, KNOCK CONTROL

main89615-20090iSCP4#200608

main89615-52010iAXP4#200210-200608

main89615-52030iNCP4#200309-200603

main89615-52030iNCP4#200212-200309

DENSO

main89615-52040iNCP4#200212-200309

TOYOTA

sub89615-52030

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

8271552280BRACKET,WIRING HARNESS CLAMP

main82715-52280

9017908101

main90179-08101

9043018008

main90430-18008

9046208056

main90462-08056

9046313003

main90463-13003

15 parts on this diagram · 13 diagrams in section
