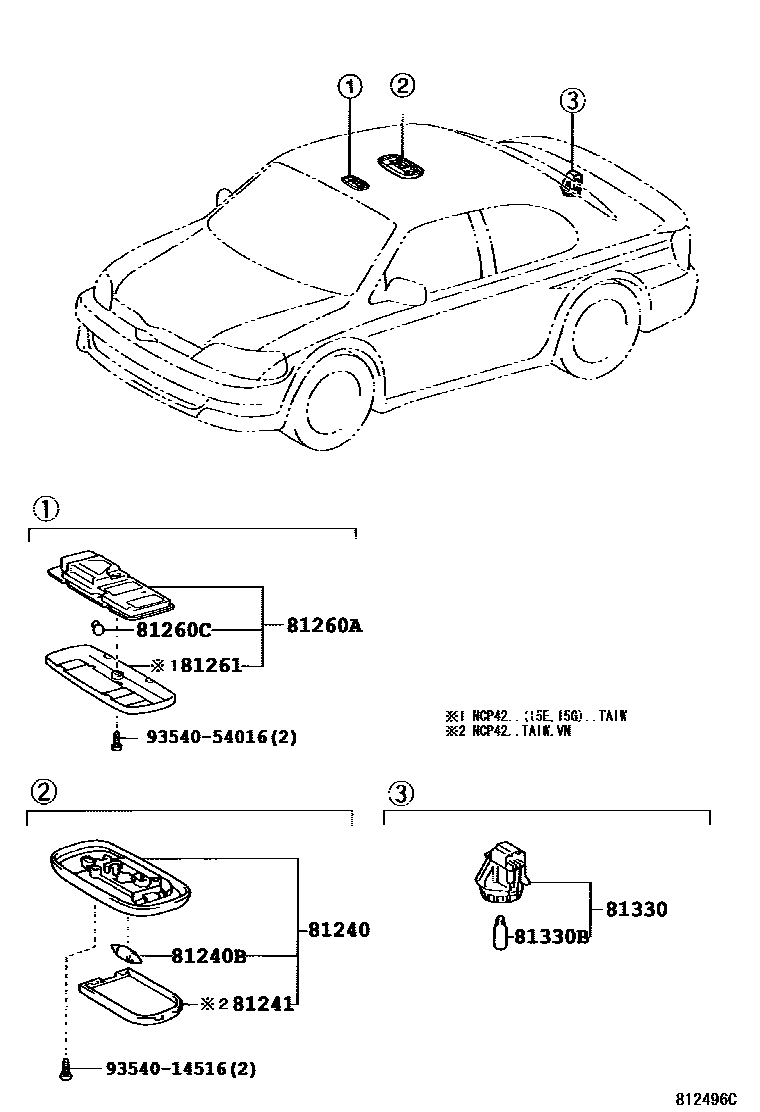

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-0D010-A0iAXP4#..15GLI,GL,GLXI200511-200608

IVORY,TRIM0#

main81240-0D010-B0iSCP42..GLI,GLS200608

LT.GRAY,TRIM1#

main81240-0D040-A0iNCP42..ATM..(15E,15S)..TH200212-200510

IVORY,TRIM0#

main81240-0D040-B0iNCP42..15E..TH;NCP4#..(13E,13STD,15G,15J,15S)..(MA,PHL,TH)200510-200708

LT.GRAY,TRIM1#

main81240-12020-A0iNCP42..TAIW200510-201303

IVORY,TRIM0#

main81240-12020-B5iNCP42..TAIW,VN200303-200603

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90080-81111iAXP4#200511-200608

12V 10W

main90981-14011iNCP4#..MA,PHL,TH200510-200708

12V 8W

main99132-12100iNCP42..TAIW,VN200303-200603

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-12020iNCP42..TAIW,VN200303-200603

81260ALAMP ASSY, MAP

main81260-0D020-A0iNCP42..15G..TAIW200510-200709

IVORY,TRIM0#

main81260-0D020-B0iNCP42..15E..TAIW200510-200710

LT.GRAY,TRIM1#

main81260-12120-A0iAXP42..GLXI200511-200608

IVORY,TRIM0#

main81260-12120-B0iAXP42..GLS200511-200608

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12014iSCP42..GLS,GLXI200608

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-0D020-A0iNCP42..(15E,15G)..TAIW200303-200510

IVORY,TRIM0#

main81261-0D020-B0iNCP42..(15E,15G)..TAIW200303-200510

LT.GRAY,TRIM1#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0A010iNCP4#..MA,PHL,TH,VN200510-200709

main81330-0D010iAXP4#200511-200608

main81330-0D020iNCP42..VN200303-200404

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90080-81058iNCP4#..MA,PHL,TH,VN200510-200709

12V 3W

main90981-11020iAXP4#200511-200608

12V 3.8W

9354014516

main93540-14516

9354054016

main93540-54016

10 parts on this diagram · 1 diagram in section
