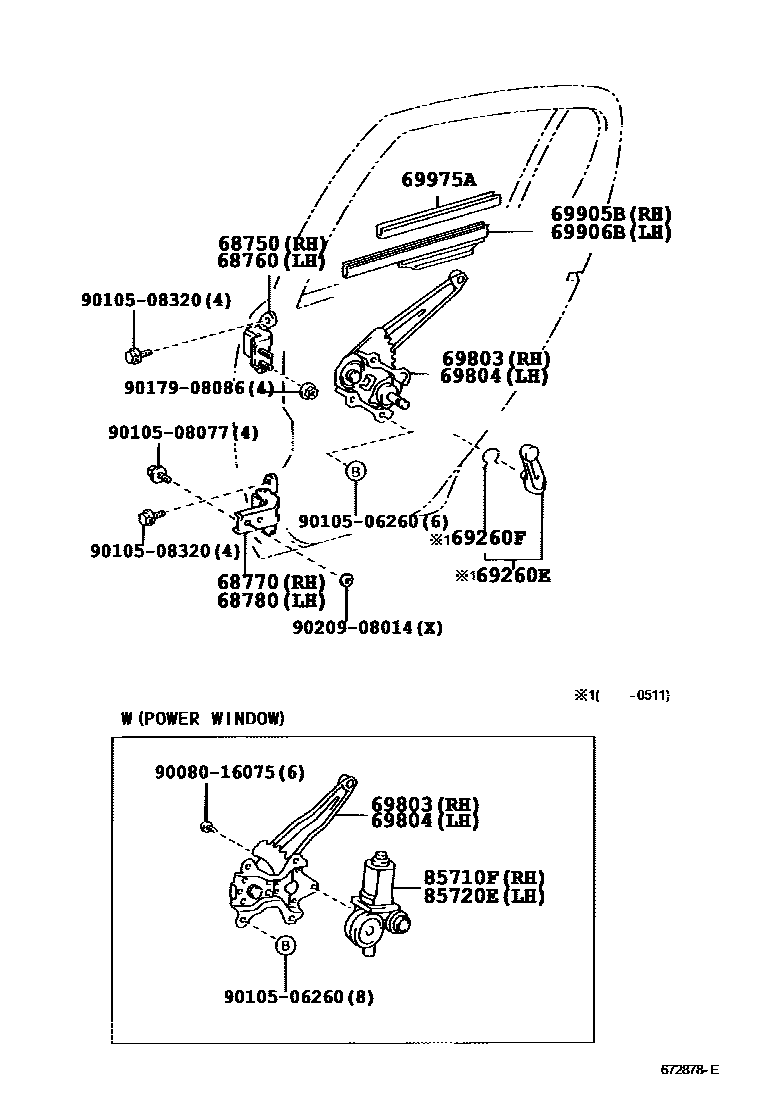

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D020iAXP4#200210-200511

main68750-0D021iSCP4#200611

main68750-52011iNCP4#200212-200603

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D020iAXP4#200210-200511

main68760-0D021iSCP4#200611

main68760-52011iNCP4#200510-201309

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D020iAXP4#200511-200608

main68770-0D021iSCP4#200611

main68770-52030iNCP4#200510-200611

main68770-52031iNCP4#200612-201309

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D020iAXP4#200210-200511

main68780-0D021iSCP4#200611

main68780-52030iNCP4#200510-200611

main68780-52031iNCP4#200612-201309

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-12080-A2×2iAXP42..DLXI200210-200404

IVORY,TRIM0#

main69260-12080-B3×2iNCP42..VN;NCP42..15J..TAIW200510-200710

DK.GRAY,TRIM1#

main69260-52050-B2×2iNCP42..MTM..15E200403-200510

DK.GRAY,TRIM1#

main69260-52050-B3×2iNCP41..13STD200212-200510

STONE,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2iNCP42..15J..TH200212-200311

main90524-15006×2iAXP42..DLXI200210-200404

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0D020iAXP4#200511-200608

main69803-0D030iNCP4#..(13E,15E,15G,15J,15S)..(PHL,TH)200510-200702

W(POWER WINDOW)

main69803-0D040iNCP42..(15E,15G)..TAIW200510

W(POWER WINDOW)

main69803-0D060iNCP42..MA,VN200305-200512

W(POWER WINDOW)

main69830-0D030iAXP4#..DLX,DLXI200210-200404

main69830-52120iNCP4#..LHD..(13STD,15J);NCP42..MTM..(15E,15G)..(TH,VN)200510-200709

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0D020iAXP4#200511-200608

main69804-0D030iNCP4#..(13E,15E,15G,15J,15S)..(PHL,TH)200510-200702

W(POWER WINDOW)

main69804-0D040iNCP42..(15E,15G)..TAIW200510

W(POWER WINDOW)

main69804-0D060iNCP42..MA,VN200305-200512

W(POWER WINDOW)

main69840-0D030iAXP4#..DLX,DLXI200210-200404

main69840-52120iNCP42..VN200409-200603

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-02120iSCP4#200709

main69905-0D020iSCP4#200608-200708

main69905-52020iNCP4#200510

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-02120iSCP4#200709

main69906-0D020iAXP4#200511-200608

main69906-52010iNCP4#200510

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D020×2iSCP4#200608

main69975-52010×2iNCP4#200212-200603

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0D020iSCP4#200608

main85720-0D040iNCP42..15J200709

main85720-0D050iNCP4#..(13E,15E,15G,15J,15S)..(PHL,TH)200510-200702

main85720-0D090iNCP42..MA,VN200512-200709

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0D040iSCP4#200608

main85710-0D050iNCP42..(15E,15G)..TAIW200303-200510

main85710-0D060iNCP42..15J..TH200311-200510

main85710-0D080iNCP42..MA,VN200305-200512

9008016075

main90080-16075

9010506260

main90105-06260

9010508077

main90105-08077

9010508320

main90105-08320

9017908086

main90179-08086

9020908014

main90209-08014

19 parts on this diagram · 2 diagrams in section
