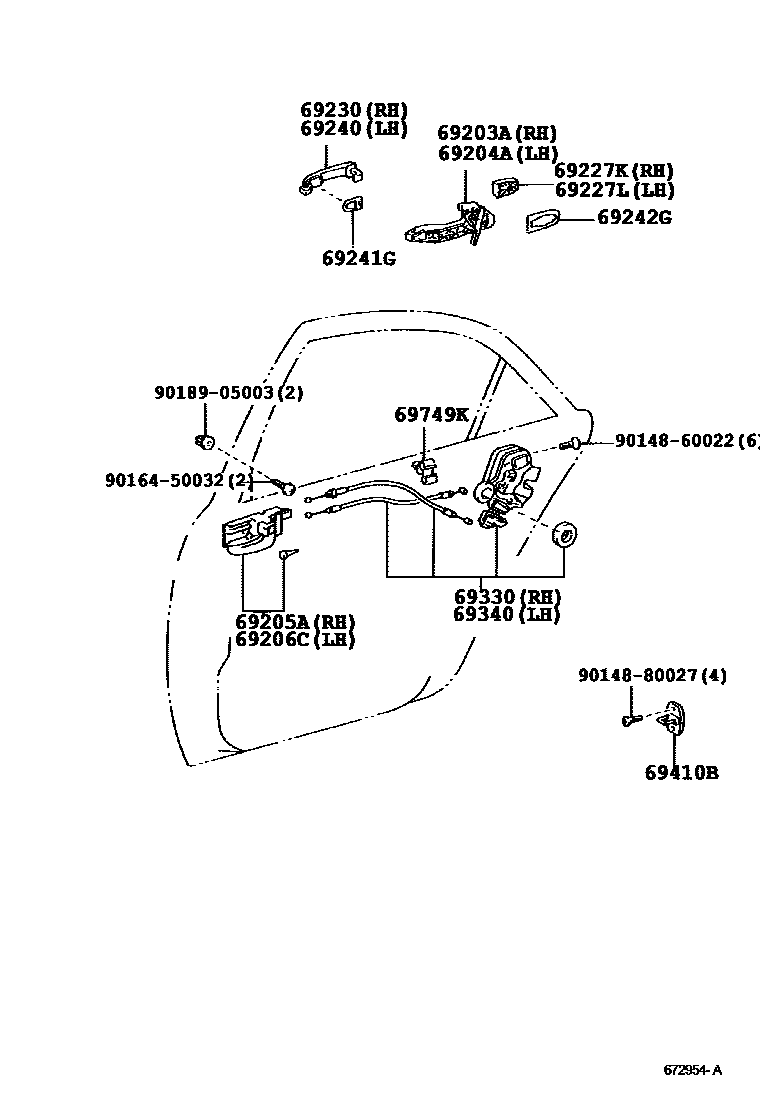

REAR DOOR LOCK & HANDLE
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.BROWN,TRIM0#
DK.GRAY,TRIM1#
DK.BROWN,TRIM0#
CHROME PLATED HANDLE,DK.GRAY,TRIM1#
sub69205-0D080
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.BROWN,TRIM0#
DK.GRAY,TRIM1#
DK.BROWN,TRIM0#
CHROME PLATED HANDLE,IVORY,TRIM0#
sub69206-0D080
CHROME PLATED HANDLE,DK.GRAY,TRIM1#
sub69206-0D080
69227KCOVER, REAR DOOR OUTSIDE HANDLE, RH
*CR
WHITE,056
SILVER ME.,1C0
RED M.M.,3P1
DK.BLUE M.M.,8P4
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
*CR
WHITE,056
SILVER ME.,1C0
RED M.M.,3P1
DK.BLUE M.M.,8P4
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED
PLATED
SUPER WHITE 2,040
SILVER ME.,1C0
GRAY ME.,1G3
SILVER ME.,1D4
SILVER ME.,1F7
BLACK,040 ,1C0 ,3P1 ,586 ,6R4 ,761
BLACK,040 ,1C0 ,209 ,3E5 ,3P1 ,586 ,6R4 ,761
BLACK,040 ,1D4 ,209 ,3E5 ,3P0 ,586 ,8B6 ,8P4 ,8Q1
BLACK MC.,209
RED M.M.,3P1
SUPER RED II,3E5
SUPER RED 5,3P0
CHAMPAGNE ME.,586
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
LT. BLUE M.M.,8S9
DK.BLUE M.M.,8P4
PAINT REQ.
WHITE,056
SILVER ME.,1C0
RED M.M.,3P1
DK.BLUE M.M.,8P4
NO PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED
PLATED
SUPER WHITE 2,040
SILVER ME.,1C0
GRAY ME.,1G3
SILVER ME.,1D4
SILVER ME.,1F7
BLACK,040 ,1C0 ,3P1 ,586 ,6R4 ,761
BLACK,040 ,1C0 ,209 ,3E5 ,3P1 ,586 ,6R4 ,761
BLACK,040 ,1D4 ,209 ,3E5 ,3P0 ,586 ,8B6 ,8P4 ,8Q1
BLACK MC.,209
RED M.M.,3P1
SUPER RED II,3E5
SUPER RED 5,3P0
CHAMPAGNE ME.,586
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
LT. BLUE M.M.,8S9
DK.BLUE M.M.,8P4
PAINT REQ.
WHITE,056
SILVER ME.,1C0
RED M.M.,3P1
DK.BLUE M.M.,8P4
NO PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69749KCLAMP, REAR DOOR LOCK
9014860022
main90148-60022
9014880027
main90148-80027
9016450032
main90164-50032
9018905003
main90189-05003
18 parts on this diagram · 2 diagrams in section
