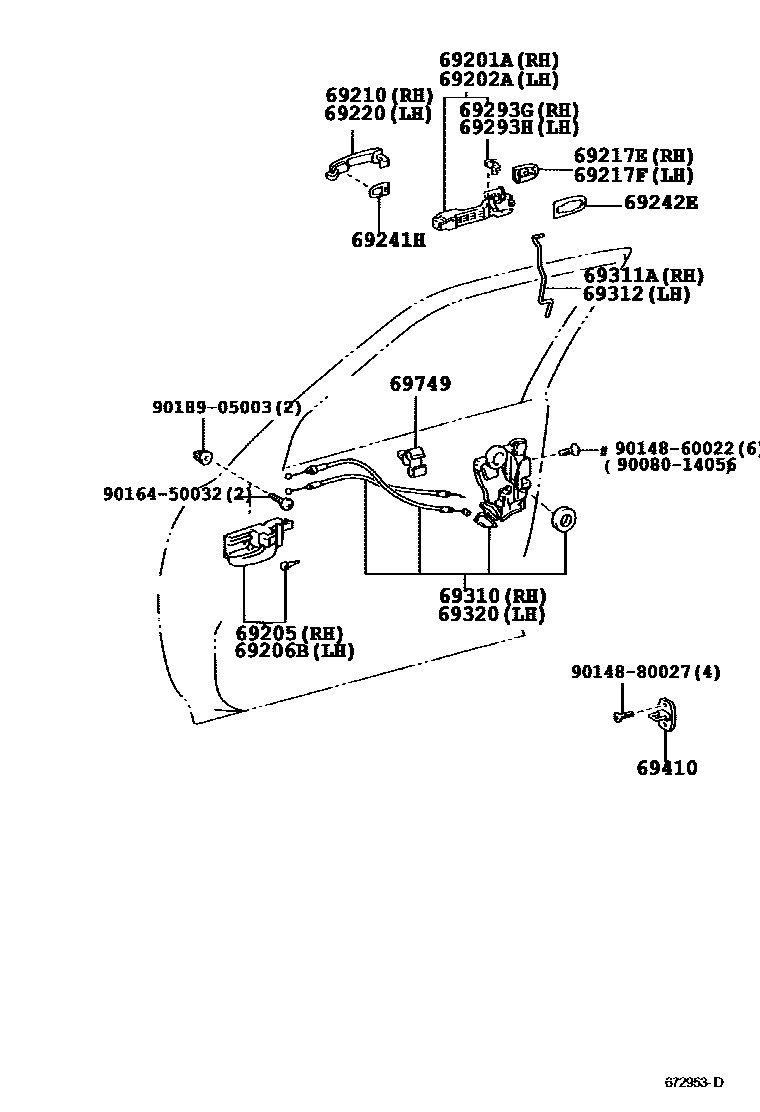

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.BROWN,TRIM0#
DK.GRAY,TRIM1#
DK.BROWN,TRIM0#
CHROME PLATED HANDLE,DK.GRAY,TRIM1#
sub69205-0D080
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.BROWN,TRIM0#
DK.GRAY,TRIM1#
DK.BROWN,TRIM0#
CHROME PLATED HANDLE,IVORY,TRIM0#
sub69206-0D080
CHROME PLATED HANDLE,DK.GRAY,TRIM1#
sub69206-0D080
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
PLATED
SUPER WHITE 2,040
SILVER ME.,1C0
GRAY ME.,1G3
SILVER ME.,1D4
SILVER ME.,1F7
BLACK,040 ,1C0 ,3P1 ,586 ,6R4 ,761
BLACK,040 ,1C0 ,209 ,3E5 ,3P1 ,586 ,6R4 ,761
BLACK,040 ,1D4 ,209 ,3E5 ,3P0 ,586 ,8B6 ,8P4 ,8Q1
BLACK MC.,209
RED M.M.,3P1
SUPER RED II,3E5
SUPER RED 5,3P0
CHAMPAGNE ME.,586
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
LT. BLUE M.M.,8S9
DK.BLUE M.M.,8P4
PAINT REQ.
WHITE,056
SILVER ME.,1C0
RED M.M.,3P1
DK.BLUE M.M.,8P4
NO PAINT REQ.
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE,056
SILVER ME.,1C0
RED M.M.,3P1
DK.BLUE M.M.,8P4
*CR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE,056
SILVER ME.,1C0
RED M.M.,3P1
DK.BLUE M.M.,8P4
*CR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
PLATED
SUPER WHITE 2,040
SILVER ME.,1C0
GRAY ME.,1G3
SILVER ME.,1D4
SILVER ME.,1F7
BLACK,040 ,1C0 ,3P1 ,586 ,6R4 ,761
BLACK,040 ,1D4 ,209 ,3E5 ,3P0 ,586 ,8B6 ,8P4 ,8Q1
BLACK,040 ,1C0 ,209 ,3E5 ,3P1 ,586 ,6R4 ,761
BLACK MC.,209
RED M.M.,3P1
SUPER RED II,3E5
SUPER RED 5,3P0
CHAMPAGNE ME.,586
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
LT. BLUE M.M.,8S9
DK.BLUE M.M.,8P4
PAINT REQ.
WHITE,056
SILVER ME.,1C0
RED M.M.,3P1
DK.BLUE M.M.,8P4
NO PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
sub69030-0D081
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
sub69040-0D081
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69749CLAMP, FRONT DOOR LOCK LINK
9008014056
main90080-14056
9014860022
main90148-60022
9014880027
main90148-80027
9016450032
main90164-50032
9018905003
main90189-05003
23 parts on this diagram · 2 diagrams in section
