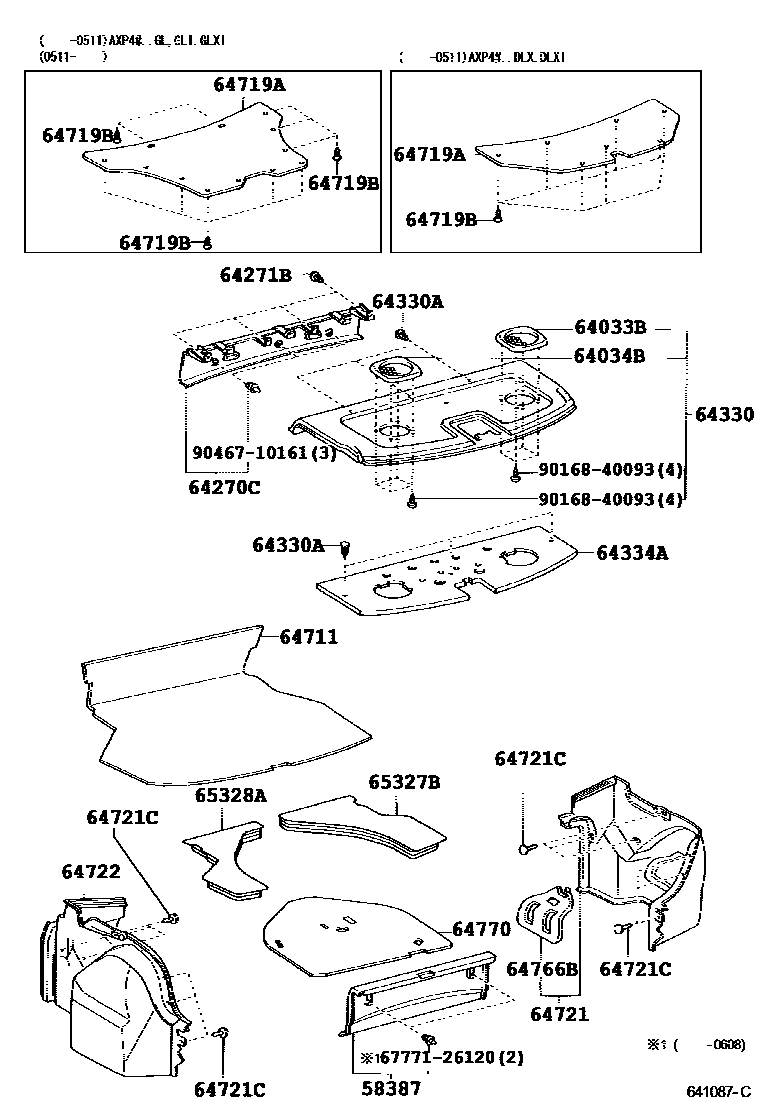

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0003 1 0005 1

58387PLATE, REAR FLOOR FINISH

main58387-0D020iAXP4#200210-200301

main58387-0D030iAXP4#200511-200608

main58387-0D040iNCP42..TAIW,VN200303-200603

main58387-0D050iNCP4#..MA,PHL,TH200305-200512

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64383-0A010-A0iNCP42..RHD..ATM..(15E,15S)200510-200708

IVORY,TRIM0#

main64383-0A010-B1iNCP42..ATM..15S200510-200702

STONE,TRIM17

main64383-0A010-B2iNCP42..RHD..(15G,15S)200212-200512

DK.GRAY,TRIM1#

main64383-0D010-A0iAXP4#..15GLI,GL,GLXI200511-200608

IVORY,TRIM0#

main64383-0D010-B0iAXP42..15GLI; AXP42..GLS200511-200608

STONE,TRIM1#; STONE,TRIM11

main64383-0D010-B1iAXP42..GLS200511-200608

DK.GRAY,TRIM11

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64383-0A010-A0iNCP42..ATM..(15E,15S)..TH200311-200510

IVORY,TRIM0#

main64383-0A010-B1iNCP4#..(13E,15E,15G,15J)..(PHL,TH,VN)200510-200709

STONE,TRIM1#

main64383-0A010-B2iNCP42..15G..MA;NCP42..MTM..15S200510-200708

DK.GRAY,TRIM1#

main64383-0D010-A0iSCP4#..GL,GLI,GLXI200608

IVORY,TRIM0#

main64383-0D010-B0iAXP42..15GLI; AXP42..GLS200511-200608

STONE,TRIM1#; STONE,TRIM11

main64383-0D010-B1iSCP42..GLS200608

DK.GRAY,TRIM1#

64270CBOARD ASSY, ROOM PARTITION

main64271-0D010-B0iSCP42..GLI,GLS200608

DK.GRAY,TRIM1#

main64271-0D010-E0iAXP4#200210-200511

DK.BROWN,TRIM0#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-06061-A0×4iAXP4#..15GLI,GL,GLXI200511-200608

IVORY,TRIM0#

main90467-06061-B1×4iAXP42..15GLI; AXP42..GLS200511-200608

STONE,TRIM1#; STONE,TRIM11

main90467-06061-B2×4iSCP42..GLS200608

DK.GRAY,TRIM1#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-0D020-A1iAXP4#200210-200212

IVORY,TRIM0#

main64330-0D020-A2iAXP4#200212-200511

IVORY,TRIM0#

main64330-0D020-B0iAXP42..15GLI; AXP42..GLS200511-200608

STONE,TRIM1#; STONE,TRIM11

main64330-0D020-B2iAXP42..GLS200511-200608

DARK GRAY,TRIM11

main64330-0D030-A1iNCP42..(15E,15G)..TAIW200510-201303

IVORY,TRIM0#

main64330-0D030-B2iNCP42..VN200307-200401

STONE,TRIM1#

main64330-0D030-B3iNCP42..(15E,15G)..TAIW200303-200510

DK.GRAY,TRIM1#

main64330-0D040-A0iNCP42..ATM..(15E,15S)..TH200311-200510

W(SPEAKER GRILLE),IVORY,TRIM0#

main64330-0D040-B2iNCP42..ATM..15S200510-200702

W(SPEAKER GRILLE),STONE,TRIM17

main64330-0D040-B3iNCP42..ATM..15S200510-200702

W(SPEAKER GRILLE),DK.GRAY,TRIM18

main64330-0D050-B1iNCP42..VN200409-200603

W/O(SPEAKER),STONE,TRIM1#

main64330-0D080-A0iNCP42..15J200911-201303

IVORY,TRIM0#

main64330-0D080-B1iNCP42..15J..TAIW200303-200510

DK.GRAY,TRIM1#

main64330-0D090-B0iNCP42..MTM..15E200403-200510

W/O(HIGH MOUNT STOP LAMP),STONE,TRIM1#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06061-A0×6iNCP42..(15E,15G)..TAIW200303-200510

IVORY,TRIM0#

main90467-06061-B1×6iNCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)200212-200603

STONE,TRIM1#

main90467-06061-B2×6iNCP42..MTM..15S;NCP42..15E..TAIW;NCP42..(15G,15J)..(MA,TAIW)200510-201309

DK.GRAY,TRIM1#

64334APAD, PACKAGE TRAY TRIM

main64334-0D010iAXP4#200210-200511

main64334-0D020iNCP42..TAIW200303-200510

main64334-0D030iNCP4#..MA,PHL,TH,VN200510-200709

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-0D010-C1iAXP4#200210-200303

BLACK,TRIM0#

main64711-0D011-C1iSCP4#..GL,GLXI; SCP42..GLI; SCP42..GLS200608

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM1#

main64711-0D020-C2iNCP42..(15E,15G)..TAIW; NCP42..15J..TAIW200303-200510

BLACK,TRIM0#,1#; BLACK,TRIM1#

main64711-0D030-C1iNCP42..TH200212-200305

BLACK,TRIM1#

main64711-0D031-C1iNCP42..ATM..(15E,15S)..TH200305-200510

BLACK,TRIM0#,1#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-52030-C0iAXP4#..DLX,DLXI200210-200511

BLACK,TRIM0#

main64719-52040-C0iAXP4#..GL,GLXI; AXP42..15GLI; AXP42..GLS200511-200608

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM1#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×7iAXP4#..DLX,DLXI; AXP4#..GL,GLI,GLXI200210-200511

BLACK,TRIM0#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64710-0D010-C1iSCP4#..GL,GLXI; SCP42..GLI; SCP42..GLS200608

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM1#

main64710-0D020-C2iNCP42..VN;NCP42..15J..TAIW200303-200603

BLACK,TRIM1#

main64710-0D030-C1iNCP42..TH200212-200305

BLACK,TRIM1#

main64710-0D031-C1iNCP42..ATM..(15E,15S)..TH200510-200702

BLACK,TRIM0#,1#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0×12iNCP42200212-200303

BLACK

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-0D010-C1iSCP4#..GL,GLXI; SCP42..GLI; SCP42..GLS200608

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM1#

main64722-0D020-C2iNCP42..VN;NCP42..15J..TAIW200303-200603

BLACK,TRIM1#

main64722-0D030-C1iNCP42..TH200212-200305

BLACK,TRIM1#

main64722-0D031-C1iNCP42..15E..MA200512-200708

BLACK,TRIM0#

64766BCOVER, QUARTER TRIM JACK

main64766-0D010-C1iAXP4#..GL,GLXI; AXP42..15GLI; AXP42..GLS200511-200608

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM1#

64770COVER ASSY, SPARE WHEEL

main64770-0D010iAXP41..DLX200210-200511

main64770-0D020iAXP4#..DLXI,GL,GLI,GLXI200210-200404

main64770-0D030iNCP42..TAIW200510

main64770-0D040iNCP41;NCP42..ATM..15S;NCP42..(15E,15G,15J)..(MA,TH,VN)200510-200709

main64770-0D080iSCP4#200608

main64770-0D100iNCP42..ATM..15S; NCP42..MTM..15S200304-200510

W(SPARE TIRE = 15 INCH GROUND TIRE)

65327BPLATE, FLOOR BOARD SIDE, RH

main65327-0D010iNCP4#..MA,PHL,TH,VN200212-200603

main65327-0D020iAXP4#200303-200410

main65327-0D040iAXP4#200410-200511

65328APLATE, FLOOR BOARD SIDE, LH

main65328-0D010iNCP4#..MA,PHL,TH,VN200212-200603

main65328-0D020iAXP4#200511-200608

6777126120WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-26120

9016840093

main90168-40093

9046710161

main90467-10161

21 parts on this diagram · 3 diagrams in section
