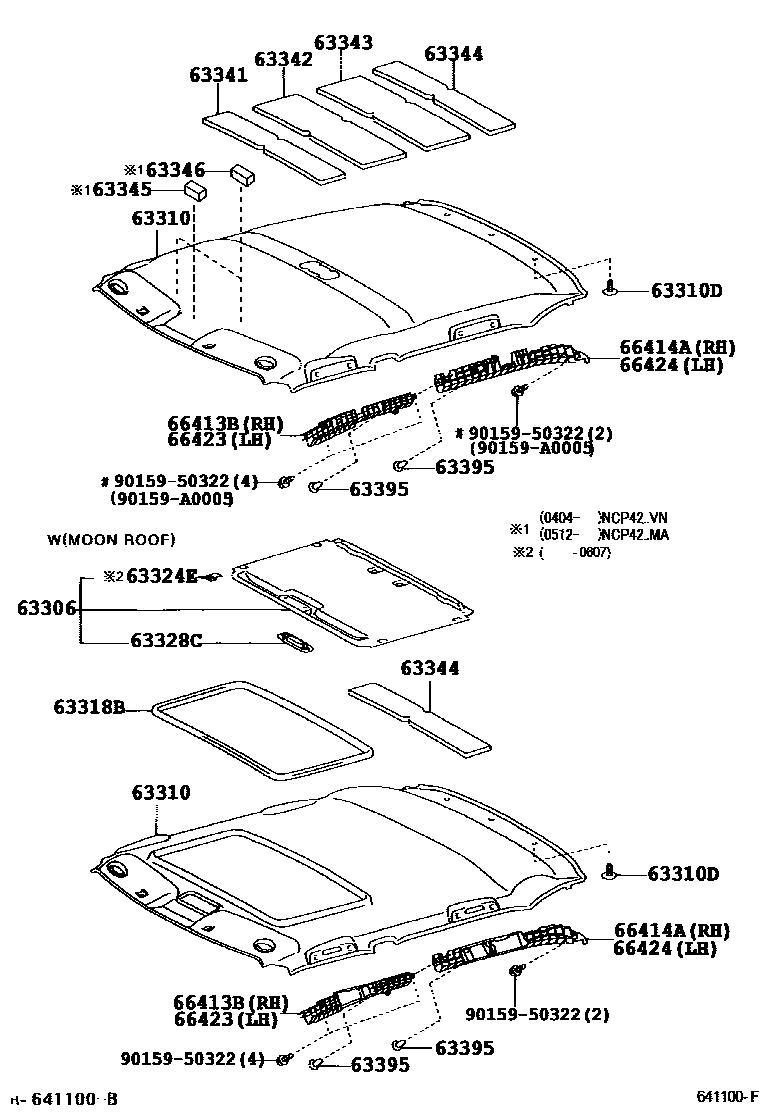

ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-02030-A2iNCP42..15G..TAIW200510-200709

IVORY,TRIM0#

main63306-02030-B3iNCP42..15G..TAIW200510-200709

LT.GRAY,TRIM1#

main63306-0D020-A1iAXP42..GLI,GLXI200210-200510

IVORY,TRIM0#

main63306-0D020-B2iAXP42..GLS200511-200606

LT. GRAY,TRIM1#

main63306-0D021-A1iAXP42..GLXI200607-200608

IVORY,TRIM0#

main63306-0D021-B2iAXP42..GLS200607-200608

LT. GRAY,TRIM1#

main63306-0D022-A1iSCP42..GLXI200611

IVORY,TRIM0#

main63306-0D022-B2iSCP42..GLS200611

LT. GRAY,TRIM1#

63310HEADLINING ASSY, ROOF

main63301-0D010-A0iNCP42..15E..MA200512-200708

IVORY,TRIM0#

main63301-0D010-B0iNCP42..15G..MA200512-200708

LT.GRAY,TRIM1#

main63301-0D020-B0iNCP42..VN200404-200603

LT. GRAY,TRIM1#

main63310-0D090-A1iAXP4#200210-200511

IVORY,TRIM0#

main63310-0D090-B1iSCP42..GLI,GLS200608-200611

LT. GRAY,TRIM1#

main63310-0D100-A1iAXP42..GLXI200511-200608

W(MOON ROOF),IVORY,TRIM0#

main63310-0D100-B1iSCP42..GLS200608-200611

W(MOON ROOF),LT. GRAY,TRIM1#

main63310-0D110-A1iNCP42..(15E,15G)..TAIW200303-200510

IVORY,TRIM0#

main63310-0D110-B2iNCP42..TAIW200303-200510

LT.GRAY,TRIM1#

main63310-0D120-A1iNCP42..(15E,15G)..TAIW200303-200510

W(MOON ROOF),IVORY,TRIM0#

main63310-0D120-B2iNCP42..(15E,15G)..TAIW200303-200510

W(MOON ROOF),LT.GRAY,TRIM1#

main63310-0D130-A0iNCP42..ATM..(15E,15S)..TH200212-200510

IVORY,TRIM0#

main63310-0D130-B1iNCP42..TH200510-200702

LT.GRAY,TRIM1#

main63310-0D230-B0iNCP4#..PHL200510-200702

LT.GRAY,TRIM1#

main63310-0D340-A0iSCP4#..GL,GLI200611

IVORY,TRIM0#

main63310-0D340-B0iSCP42..GLI,GLS200611

LT. GRAY,TRIM1#

main63310-0D350-A0iSCP42..GLXI200611

W(MOON ROOF),IVORY,TRIM0#

main63310-0D350-B0iSCP42..GLS200611

W(MOON ROOF),LT. GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-05021-A1×3iSCP4#..GL,GLI,GLXI200608

IVORY,TRIM0#

main90467-05021-P4×3iAXP42..15GLI,GLS200511-200608

LT.GRAY,TRIM1#

63318BMOULDING, ROOF HEADLINING SET, NO.1

main63318-0D020-A0iNCP42..(15E,15G)..TAIW200510-200710

IVORY,TRIM0#

main63318-0D020-B0iNCP42..(15E,15G)..TAIW200303-200510

LT.GRAY,TRIM1#

main63318-52010-A0iSCP42..GLXI200608

IVORY,TRIM0#

main63318-52010-B0iAXP42..GLS200511-200608

LT.GRAY,TRIM1#

63324ESPRING, SUNSHADE LOCK

main63324-02010×4iNCP42..15G..TAIW200510-200709

main63324-0D010×4iAXP42..GLS,GLXI200511-200607

63328CKNOB, SUNSHADE TRIM

main63328-02030-A0iNCP42..(15E,15G)..TAIW200303-200510

IVORY,TRIM0#

main63328-02030-B0iNCP42..15E..TAIW; NCP42..15G..TAIW200303-200510

LT.GRAY,TRIM1#; LT.GRAY,TRIM12,13

main63328-0D020-A0iAXP42..GLI,GLXI200210-200510

IVORY,TRIM0#

main63328-0D020-B0iAXP42..GLS200511-200606

LT.GRAY,TRIM1#

main63328-12030-A1iSCP42..GLXI200608

IVORY,TRIM0#

main63328-12030-B7iAXP42..GLS200607-200608

LT.GRAY,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63341-02030iNCP4#..MA,PHL,TH,VN200510-200709

main63341-02070iNCP42..TAIW200510

main63341-0D010iSCP4#..GL,GLI,GLS200608

63342PAD, ROOF SILENCER, NO.2

main63343-02020iNCP4#..MA,PHL,TH,VN200510-200709

main63343-02050iNCP42..TAIW200303-200510

main63343-0D010iAXP4#200210-200511

63343PAD, ROOF SILENCER, NO.3

main63343-02020iNCP4#..MA,PHL,TH,VN200510-200709

main63343-02050iNCP42..TAIW200303-200510

main63343-0D010iSCP4#..GL,GLI,GLS200608

63344PAD, ROOF SILENCER, NO.4

main63341-02030iNCP4#..MA,PHL,TH,VN200212-200603

main63341-02070iNCP42..TAIW200303-200510

main63341-0D010iAXP4#200210-200511

63345PAD, ROOF SILENCER, NO.5

main63345-0D010iNCP42..MA,VN200512-200709

63346PAD, ROOF SILENCER, NO.6

main63346-0D010×2iNCP42..MA,VN200512-200709

63395CLIP, ROOF HEADLINING TRIM

main90467-05022-C0×4iAXP4#..DLX,DLXI,GL; AXP42..GLI,GLXI200210-200511

BLACK,TRIM0#; W(MOON ROOF),BLACK,TRIM0#

main90467-06061-B1×4iNCP42..15E..MA200305-200409

STONE,TRIM1#

main90467-06061-B2×4iNCP42..VN200409-200603

DK.GRAY

66413BSPACER, SIDE RAIL, FRONT RH

main66413-0D030iAXP4#..15GLI,GL,GLS200511-200608

main66413-0D040iNCP4#..LHD200510

main66413-0D050iNCP42..RHD200212-200512

main66413-0D060iAXP42..GLS,GLXI200511-200608

W(MOON ROOF)

66414ASPACER, SIDE RAIL, REAR RH

main66414-0D030iAXP4#..15GLI,GL,GLS200511-200608

main66414-0D040iNCP4#..LHD200510

main66414-0D050iNCP42..RHD200212-200512

main66414-0D060iAXP42..GLI,GLXI200210-200511

W(MOON ROOF)

66423SPACER, SIDE RAIL, FRONT LH

main66423-0D030iAXP4#200511-200608

main66423-0D040iNCP4#..LHD200303-200603

main66423-0D050iNCP42..RHD200212-200512

66424SPACER, SIDE RAIL, REAR LH

main66424-0D030iSCP4#..GL,GLI,GLS200608

main66424-0D040iNCP4#..LHD200510

main66424-0D050iNCP42..RHD200212-200512

main66424-0D060iSCP42..GLS,GLXI200608

W(MOON ROOF)

9015950322

main90159-50322

90159A0005

main90159-A0005

19 parts on this diagram · 1 diagram in section
