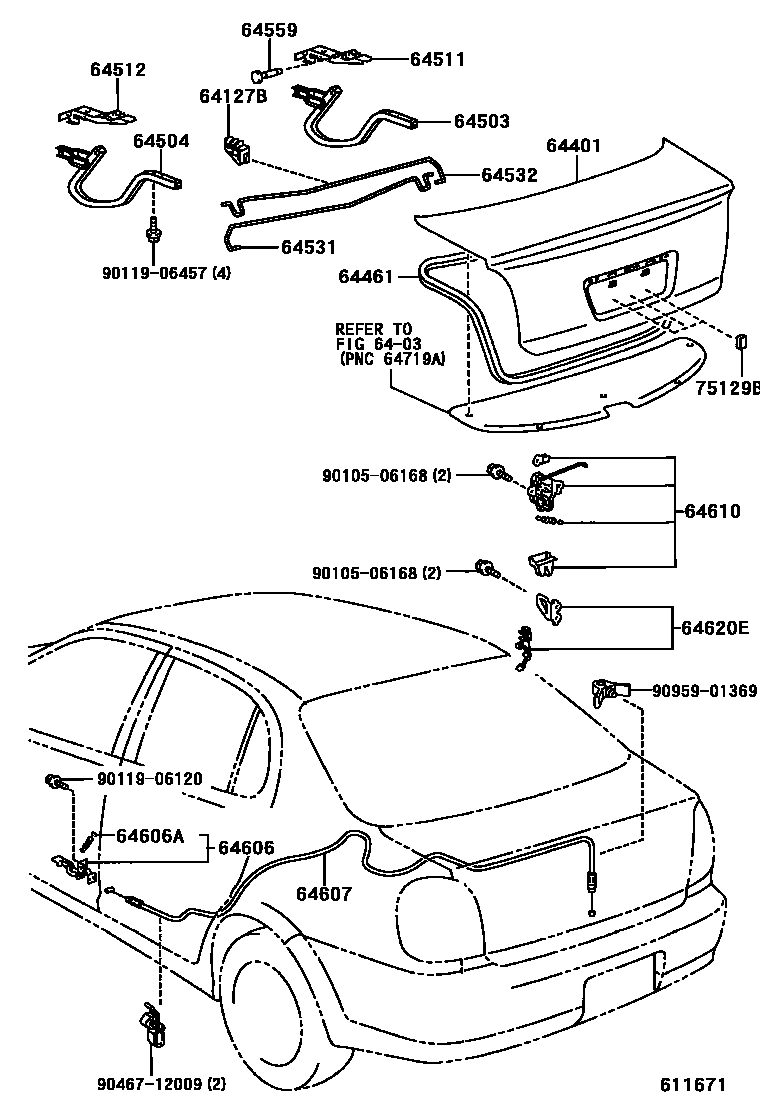

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1 0003 1

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33041iAXP4#200210-200511

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D010iSCP4#200608

main64401-0D020iAXP42..GLI,GLXI200210-200511

W(REAR SPOILER)

main64401-0D030iNCP4#200510-201309

main64401-0D070iNCP42..ATM..(15G,15S)..(TAIW,TH)200510-200709

W(REAR SPOILER)

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D010iAXP4#200511-200608

main64461-0D020iNCP4#200510

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-12150iAXP4#200210-200511

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-12150iAXP4#200210-200511

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-12270iAXP4#200210-200511

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64511-12270iAXP4#200210-200511

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D010iAXP4#200210-200511

main64531-0D020iAXP42..GLI,GLXI200210-200511

W(REAR SPOILER)

main64531-0D030iNCP4#200212-200603

main64531-0D060iNCP42..ATM..(15G,15S)..(TAIW,TH)200510-200709

W(REAR SPOILER)

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D010iSCP4#200608

main64532-0D020iAXP42..GLS200511-200608

W(REAR SPOILER)

main64532-0D030iNCP4#200510-201309

main64532-0D060iNCP42..ATM..(15G,15S)..(TAIW,TH)200510-200709

W(REAR SPOILER)

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2iAXP4#200210-200511

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-02040iNCP42..RHD200510-200708

main64606-02090iAXP4#200511-200608

main64606-12050iAXP4#..DLX,DLXI,GL,GLI,GLXI200210-200404

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09034×2iAXP4#200210-200511

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-0D010iAXP4#200210-200511

main64607-0D020iNCP42..TAIW200510

main64607-0D030iNCP42..TH200212-200510

main64607-0D060iNCP42..MA200305-200512

main64607-0D070iNCP42..VN200404-200603

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-0D010iAXP4#200210-200511

main64610-0D020iNCP4#200212-200603

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-02030iNCP42..15G..TAIW200510-200709

main64620-0D010iAXP4#200210-200511

75129BCUSHION, REAR LICENCE PLATE

main75129-0D010×2iAXP4#200511-200608

main75129-13010×2iNCP4#200510

main75129-13020×2iNCP42200212-200302

9010506168

main90105-06168

9011906120

main90119-06120

9011906457

main90119-06457

9046712009

main90467-12009

9095901369

main90959-01369

22 parts on this diagram · 3 diagrams in section
