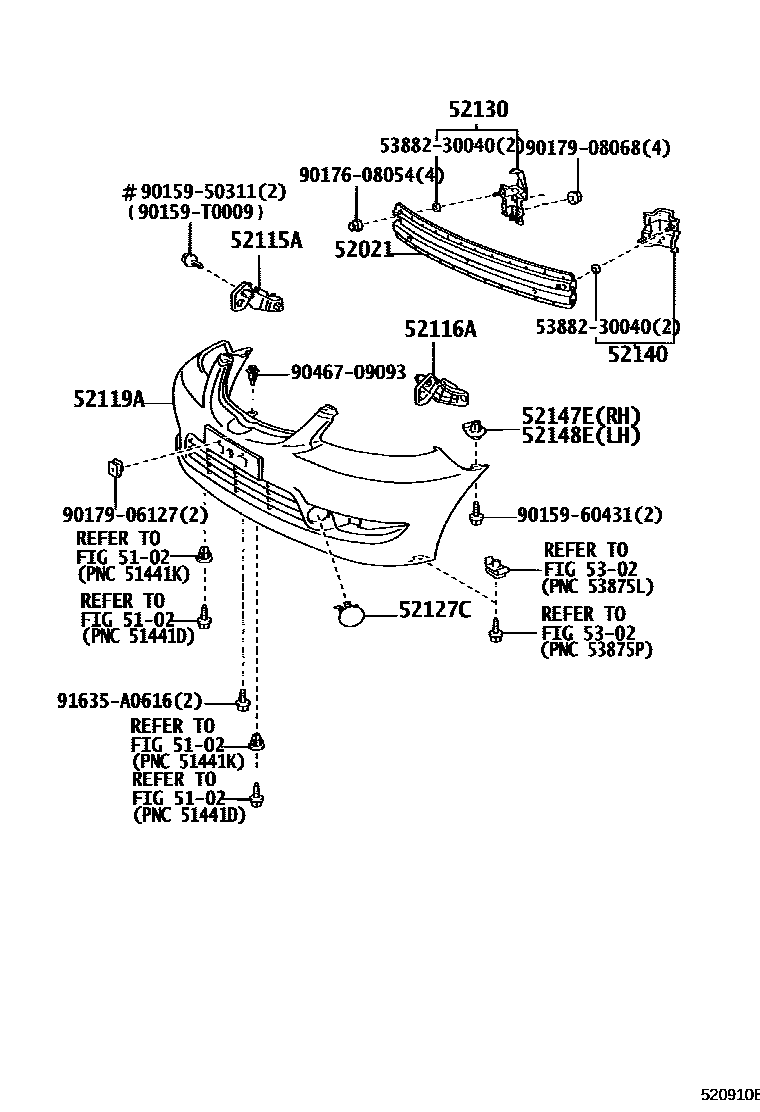

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0005 1TYPE A 0007 1TYPE B

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D020iSCP4#200608

main52021-0D030iNCP42..TAIW200510-201309

main52021-0D040iNCP4#..PHL;NCP42..MTM..15S200212-200410

main52021-0D050iNCP4#..PHL; NCP42..TH200410-200510

BRUNEI SPEC;SINGAPORE SPEC;INDONESIA SPEC

main52021-0D080iAXP4#200410-200511

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-0D010iAXP4#200210-200511

main52115-0D020iNCP4#200212-200603

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-0D010iAXP4#200210-200511

main52116-0D020iNCP4#200212-200603

52119ACOVER, FRONT BUMPER

main52119-0D905iNCP42..ATM..15S200212-200510

PAINT REQ.,W(BUMPER SPOILER)

main52119-0D961iNCP42..TAIW200303-200510

PAINT REQ.

main52119-0D971iNCP4#..MA,PHL,TH200212-200410

PAINT REQ.

main52119-0D972iNCP42..15G..TAIW200303-200510

PAINT REQ.,W(BUMPER SPOILER)

main52119-0D973iAXP4#200210-200511

PAINT REQ.

main52119-0D974iAXP42..GLI,GLXI200210-200511

PAINT REQ.,W(BUMPER SPOILER)

main52119-0D976iNCP42..MTM..(15E,15G)..(TH,VN)200510-200709

PAINT REQ.,TYPE A:REFER TO ILLUSTRATION

main52119-0D978iNCP42..TAIW200510

PAINT REQ.

main52119-0D979iNCP42..15G..TAIW200510-200709

PAINT REQ.,W(BUMPER SPOILER)

main52119-0D981iNCP4#..PHL,TH,VN200510-200709

PAINT REQ.,TYPE B:REFER TO ILLUSTRATION

main52119-0D982iNCP42..ATM..15S200510-200702

PAINT REQ.,W(BUMPER SPOILER)

main52119-0D983iNCP42..MA200512-200604

PAINT REQ.

main52119-0D984iSCP4#200608

PAINT REQ.

main52119-0D985iAXP42..GLS200511-200608

PAINT REQ.,W(BUMPER SPOILER)

main52119-0D991iNCP42..MA200604-200708

PAINT REQ.

52127CCOVER, FRONT BUMPER HOLE

main52127-0D020-A0iNCP42..TAIW200303-200510

SUPER WHITE 2,040

main52127-0D020-B0iNCP42..TAIW200303-200510

SILVER ME.,1C0

main52127-0D020-C0iNCP42..TAIW200303-200510

BLACK MC.,209

main52127-0D020-D0iNCP42..TAIW200303-200510

RED M.M.,3P1

main52127-0D020-D2iNCP42..TAIW200303-200510

SUPER RED II,3E5

main52127-0D020-F0iNCP42..TAIW200303-200510

CHAMPAGNE ME.,586

main52127-0D020-G0iNCP42..TAIW200303-200510

DARK GREEN MC.,6R4

main52127-0D020-H0iNCP42..TAIW200303-200510

LT.AQUA ME.OP.,761

main52127-0D901iNCP4#..MA,PHL,TH,VN200212-200603

main52127-0D902iAXP4#200210-200511

52130BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH

main52130-0D010iNCP4#200212-200603

main52130-0D060iSCP4#200608

52140BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH

main52140-0D010iNCP4#200212-200603

main52140-0D060iAXP4#200210-200511

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-16080iSCP4#200608

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-16080iNCP4#200212-200603

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5388230040PACKING, FRONT FENDER MAIN

main53882-30040

9015950311

main90159-50311

9015960431

main90159-60431

90159T0009

main90159-T0009

9017608054

main90176-08054

9017906127

main90179-06127

9017908068

main90179-08068

9046709093

main90467-09093

91635A0616

main91635-A0616

20 parts on this diagram · 4 diagrams in section
