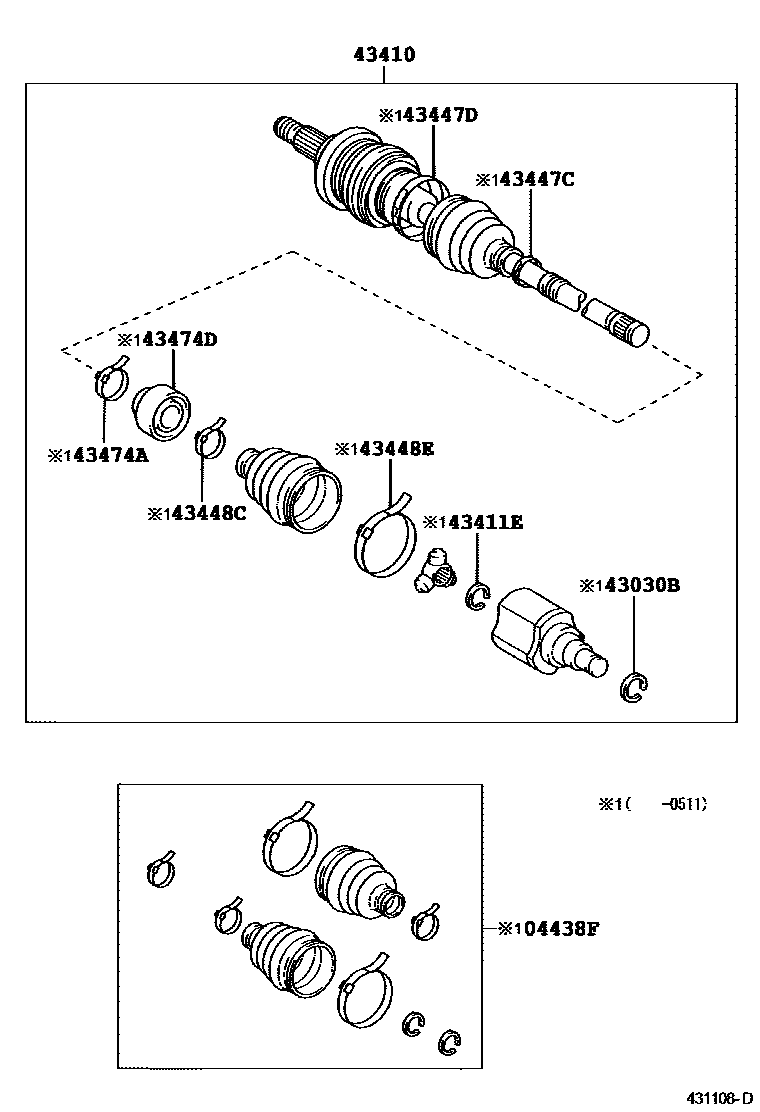

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0W020iAXP4#..MTM..(DLX,DLXI,GL)200210-200511

main04427-0W040iAXP4#..ATM200210-200511

main04438-0D040iNCP42..MA200212-200709

main04438-0D050iNCP42..TAIW200303-200510

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-0A011iNCP4#..MA,PHL,TH,VN200212-200709

main43403-0D040iNCP42..TAIW200303-200510

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main43425-0D040iNCP42..TAIW200303-200510

main90520-21022iAXP4#..ATM200210-200511

main90520-22024iAXP4#..MTM200210-200511

main90521-26004iNCP4#..MA,PHL,TH,VN200212-200709

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D030iAXP4#..MTM..(DLX,DLXI,GL)200210-200511

main43410-0D040iAXP41..ATM200210-200511

main43410-0D050iAXP4#..MTM200511-200608

main43410-0D050iAXP4#..MTM..(GL,GLI)200210-200511

W(ABS)

main43410-0D060iAXP4#..ATM200511-200608

main43410-0D060iAXP4#..ATM200210-200511

W(ABS)

main43410-0D090iNCP42..TAIW200303-200911

main43410-0D100iNCP42..(15E,15G)..TAIW200303-200510

W(ABS)

main43410-0D100iNCP42..15J200911

main43410-0D110iNCP42..VN;NCP42..ATM..15S;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)200212-200709

main43410-0D120iNCP42..15G..MA;NCP42..MTM..15S200304-200512

main43410-0D120iNCP42..15E..TH;NCP42..ATM..15S200212-200708

W(ABS)

main43410-0D240iSCP4#..MTM200608

main43410-0D250iSCP4#..ATM200608

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0D050iNCP42..TAIW200303-200510

main43425-10020iAXP4#200210-200511

main90520-22001iNCP4#..MA,PHL,TH,VN200212-200709

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D090iNCP42..TAIW200303-200510

main42345-0D130iAXP4#200210-200511

main90949-01078iNCP4#..MA,PHL,TH,VN200212-200709

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D080iNCP42..TAIW200303-200510

main42345-0D140iAXP4#200210-200511

main90949-01080iNCP4#..MA,PHL,TH,VN200212-200709

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0D070iNCP42..TAIW200303-200510

main42345-0D120iAXP4#200210-200511

main90949-01078iNCP4#..MA,PHL,TH,VN200212-200709

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0D060iNCP42..TAIW200303-200510

main42345-0D110iAXP4#200210-200511

main90949-01146iNCP4#..MA,PHL,TH,VN200212-200709

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-0D120iAXP4#200210-200511

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0D020iNCP42..TAIW200303-200510

main43474-0W010iAXP4#200210-200511

main43474-20050iNCP4#..MA,PHL,TH,VN200212-200709

11 parts on this diagram · 4 diagrams in section
