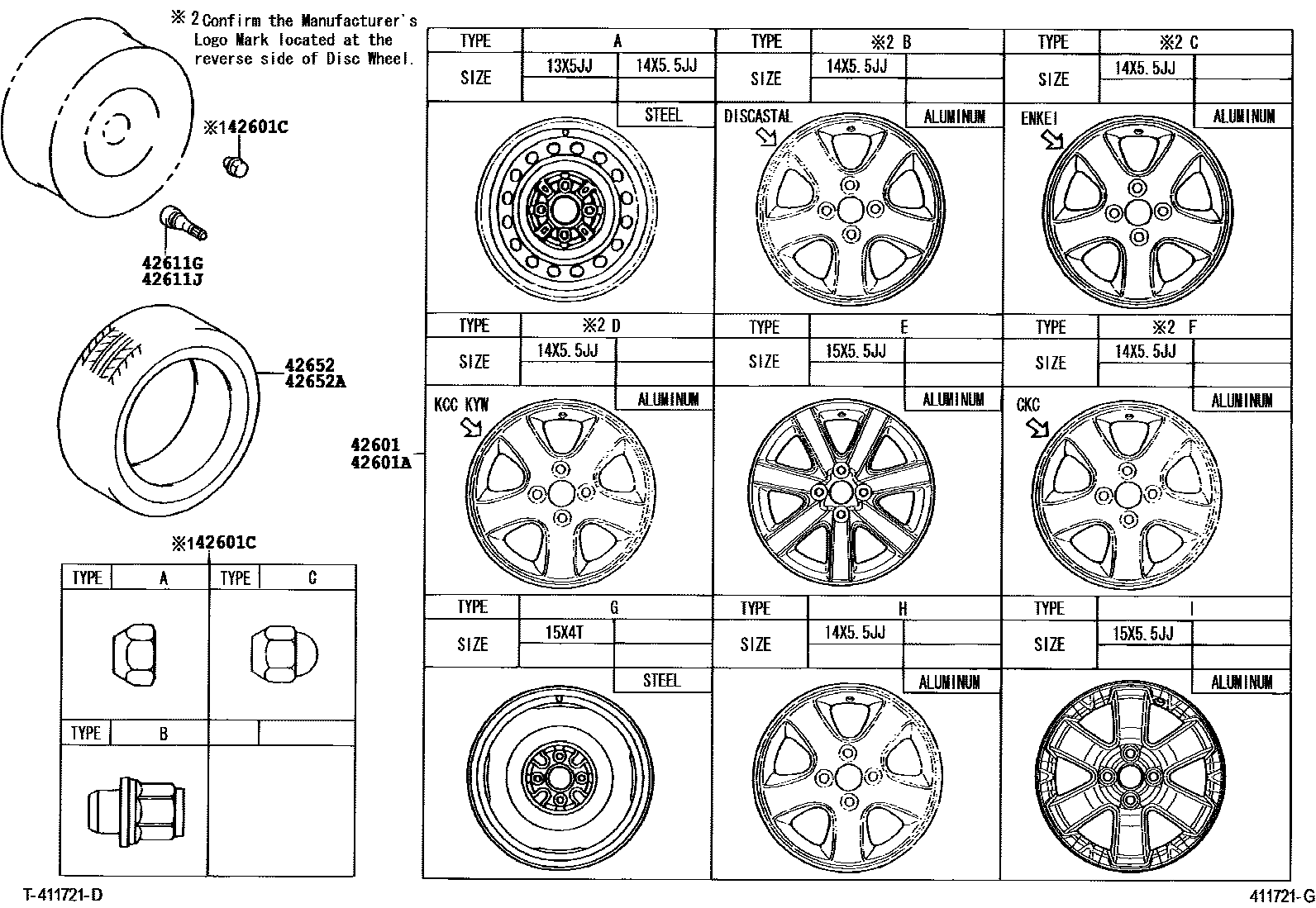

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X5.5JJ, #,TYPE B:REFER ILLUST.
14X5.5JJ, #,TYPE A:REFER ILLUST.
14X5.5JJ, #,TYPE F:REFER ILLUST.
15X5.5JJ, #,TYPE E:REFER ILLUST.
14X5.5JJ, #,TYPE A:REFER ILLUST.
14X5.5JJ, #,TYPE C:REFER ILLUST.
15X5.5JJ, #,TYPE E:REFER ILLUST.
14X5.5JJ, #,TYPE D:REFER ILLUST.
14X5.5JJ, #,TYPE H:REFER ILLUST.
15X5.5JJ, #,TYPE E:REFER ILLUST.
15X5.5JJ, #,TYPE I:REFER ILLUST.
14X5.5JJ, #,TYPE J:REFER ILLUST.
15X5.5JJ, #,TYPE K:REFER ILLUST.
14X5.5JJ, #,TYPE L:REFER ILLUST.
15X5.5JJ, #,TYPE K:REFER ILLUST.
14X5.5JJ, #,TYPE M:REFER ILLUST.
15X5.5JJ, #,TYPE N:REFER ILLUST.
14X5.5JJ, #,TYPE J:REFER ILLUST.
14X5.5JJ, #,TYPE J:REFER ILLUST.
13X5JJ,BLACK, #,TYPE A:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
15X4T,TYPE G:REFER ILLUST.
14X5.5JJ, #,TYPE B:REFER ILLUST.
14X5.5JJ, #,TYPE A:REFER ILLUST.
14X5.5JJ, #,TYPE A:REFER ILLUST.
14X5.5JJ, #,INDONESIA SPEC,TYPE C:REFER ILLUST.
15X5.5JJ, #,INDONESIA SPEC,TYPE E:REFER ILLUST.; 15X5.5JJ, #,TYPE E:REFER ILLUST.
14X5.5JJ, #,INDONESIA SPEC,TYPE D:REFER ILLUST.
15X5.5JJ, #,TYPE I:REFER ILLUST.
15X5.5JJ, #,TYPE K:REFER ILLUST.
14X5.5JJ, #,TYPE L:REFER ILLUST.
15X5.5JJ, #,TYPE K:REFER ILLUST.
13X5JJ,BLACK, #,TYPE A:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE C:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
155/80R13,*B/S
175/65R14,*B/S
175/65R14,*B/S
185/55R15,*B/S
175/65R14,GOODYEAR
175/65R14,MICHELIN
185/55R15,GOODYEAR
185/55R15,MICHELIN
175/65R14,GOODYEAR
185/55R15,GOODYEAR
185/60R15,*B/S
175/65R14
185/55R15
175/65R14,GOODYEAR
185/55R15,GOODYEAR
42652ATIRE (FOR SPARE)
155/80R13,*B/S
175/65R14,*B/S
175/65R14,*B/S
185/55R15,*B/S
175/65R14,GOODYEAR
175/65R14,MICHELIN
185/55R15,GOODYEAR
175/65R14,GOODYEAR
185/60R15,*B/S
175/65R14,GOODYEAR
185/55R15,GOODYEAR
T135/70D15
7 parts on this diagram · 6 diagrams in section
