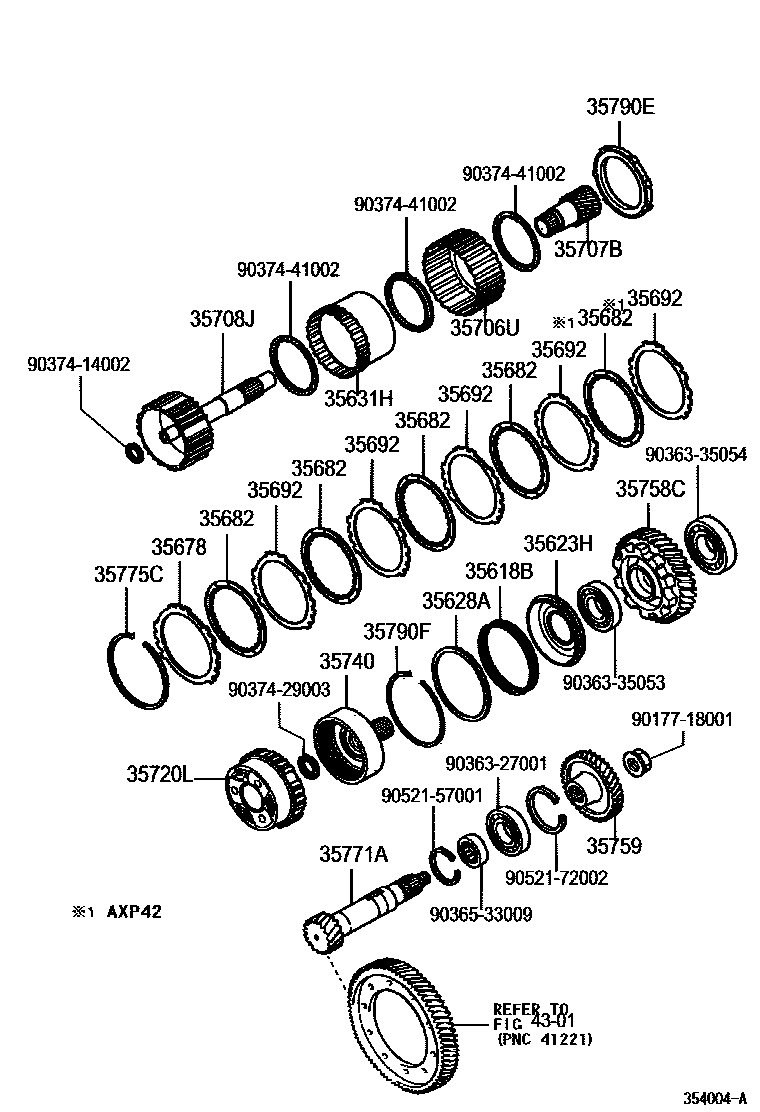

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35618BSPRING, 1ST & REVS BRAKE PISTON RETURN
35623HPISTON, 1ST & REVERSE BRAKE
35628ASEAT, 1ST & REVS BRAKE PISTON RETURN SPRING
35631HHUB, FORWARD CLUTCH
35678FLANGE, BRAKE(FOR 2ND BRAKE)
T=3.0
T=3.2
T=3.4
T=3.6
T=4.0
T=4.0
T=4.2
T=4.2
T=4.4
T=4.4
T=4.6
T=4.6
T=4.8
T=4.8
T=5.0
T=5.0
35682DISC, BRAKE(FOR 2ND BRAKE)
35692PLATE, BRAKE(FOR 2ND BRAKE)
35706UGEAR SUB-ASSY, PLANETARY SUN
35707BGEAR SUB-ASSY, REAR PLANETARY SUN
35708JSHAFT SUB-ASSY, INTERMEDIATE
35720LGEAR ASSY, PLANETARY
35740GEAR ASSY, FRONT PLANETARY RING
35758CGEAR, REDUCTION DRIVE
35759GEAR, REDUCTION DRIVEN
35775CRING, HOLE SNAP (FOR PRIMARY REDUCTION DRIVE)
35790ECLUTCH ASSY, 1 WAY
35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)
4301FRONT AXLE HOUSING & DIFFERENTIAL
9017718001
main90177-18001
9036327001
main90363-27001
9036335053
main90363-35053
9036335054
main90363-35054
9036533009
main90365-33009
9037414002
main90374-14002
9037429003
main90374-29003
9037441002
main90374-41002
9052157001
main90521-57001
9052172002
main90521-72002
29 parts on this diagram · 3 diagrams in section
