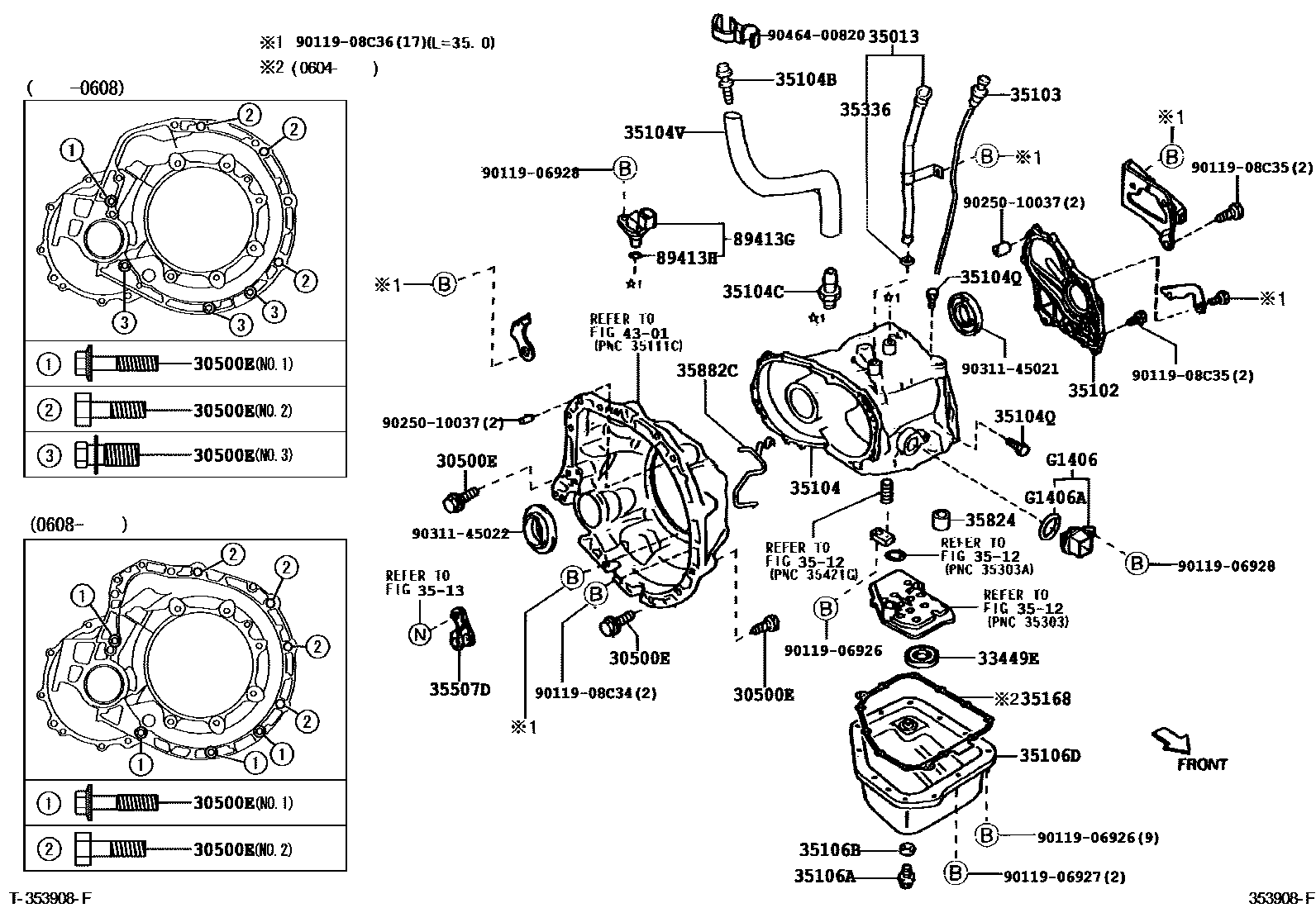

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U540E 0002 1U340E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10077iAXP4#..ATM200210-200511

*10-1.25PX43-26

main90119-12168×3iAXP4#..ATM200210-200511

*12-1.25PX55-30

main90119-T0068×7iNCP42..ATM..PHL;NCP42..RHD..ATM..(15E,15J,15S)200212-200512

*10-1.25PX50-30,(L)

main90119-T0225×7iNCP42..15J200911

*10-1.25PX45-30,(L)

main91612-61045×7iNCP42..15J200911

*10-1.25PX45-30,(J)

main91612-61050×7iNCP42..ATM..PHL;NCP42..RHD..ATM..(15E,15J,15S)200212-200512

*10-1.25PX50-30,(J)

main91622-B1025×3iAXP4#..ATM200511-200608

*10-1.25PX25-20.5,NO.3

33449EMAGNET, TRANSAXLE

main33449-52010iAXP4#..ATM200511-200608

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-0D020iNCP42..TAIW200303-200510

main35013-0D021iNCP42..TAIW200510

main35013-0D030iNCP42..ATM..(MA,PHL,TH)200212-200512

main35013-0D031iNCP42..ATM..(MA,PHL,TH)200510-200708

main35013-52070iAXP4#..ATM200511-200604

main35013-52071iAXP4#..ATM200604-200608

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52020iNCP42..ATM200212-200512

main35143-52030iAXP4#..ATM200511-200608

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-0D020iNCP42..TAIW200510

main35103-0D030iNCP42..ATM..(MA,PHL,TH)200510-200708

main35103-52070iAXP4#..ATM200511-200604

main35103-52071iAXP4#..ATM200604-200608

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35141-52040iAXP4#..ATM200210-200511

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iSCP4#..ATM200608

main90930-03166iNCP42..ATM200510

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03169iAXP4#..ATM200210-200305

main90930-03176iAXP4#..ATM200305-200511

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×5iNCP42..ATM200510

main90345-51012×7iAXP4#..ATM200309-200511

35104VHOSE (FOR BREATHER PLUG)

main90445-11151iAXP4#..ATM200210-200511

main90447-11043iNCP42..ATM200510

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12033iAXP4#..ATM200210-200511

main90341-18016iNCP42..ATM200212-200512

35106BGASKET, DRAIN PLUG (ATM)

main90430-12036iSCP4#..ATM200608

main90430-18008iNCP42..ATM200510

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-52020iNCP42..ATM200510

main35106-52040iAXP4#..ATM200511-200608

main35106-52041iSCP4#..ATM200608

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-52060iAXP4#..ATM200604-200608

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iNCP42..ATM200510

main90301-10009iAXP4#..ATM200511-200608

35507DLEVER, TRANSMISSION CONTROL SHAFT

main35507-52010iAXP4#..ATM200511-200608

35824SEAL, BRAKE CYLINDER

main35638-52010iAXP4#..ATM200210-200511

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-52030iAXP4#..ATM200210-200511

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

89413GSENSOR, TRANSMISSION REVOLUTION

main89413-52020×2iAXP4#..ATM200210-200507

main89413-52021×2iAXP4#..ATM200507-200511

89413HRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-15023×2iAXP4#..ATM200210-200511

G1406CONNECTOR SUB-ASSY, TRANS SOLENOID

mainG140652010iAXP4#..ATM200210-200511

G1406ARING, O(FOR TRANS SOLENOID CONNECTOR)

main90301-32011iAXP4#..ATM200210-200511

9011906926

main90119-06926

9011906927

main90119-06927

9011906928

main90119-06928

9011908C34

main90119-08C34

9011908C35

main90119-08C35

9011908C36

main90119-08C36

9025010037

main90250-10037

9031145021

main90311-45021

9031145022

main90311-45022

9046400820

main90464-00820

35 parts on this diagram · 2 diagrams in section
