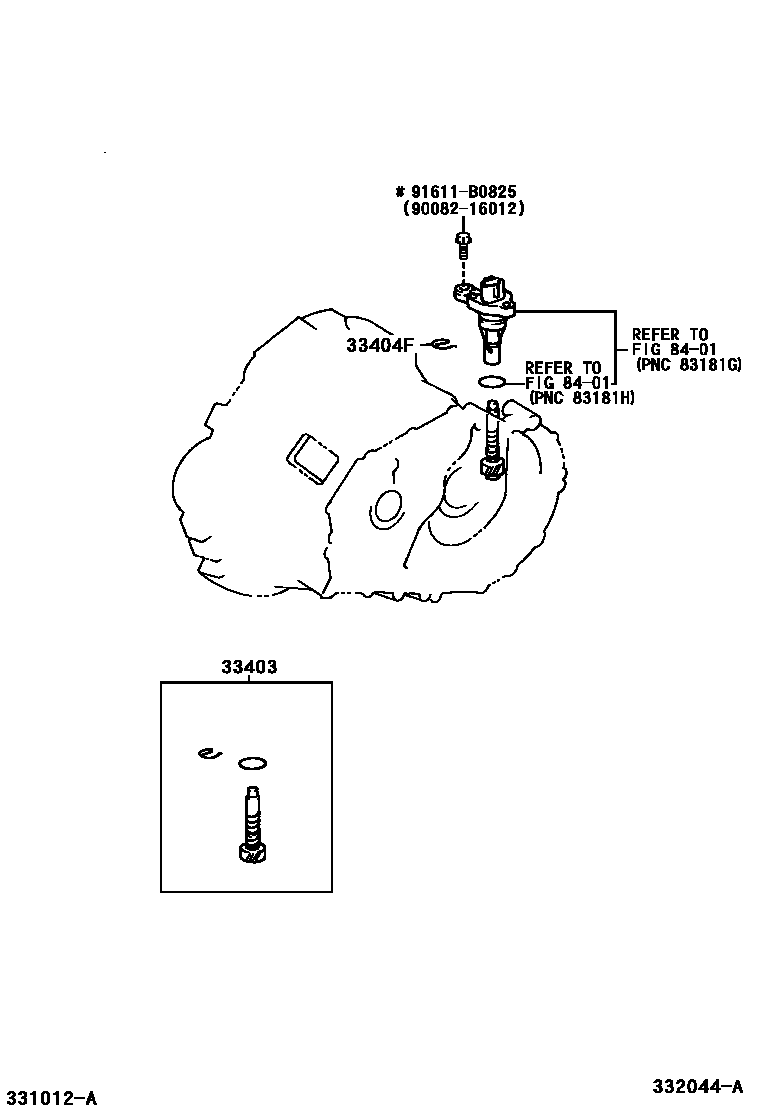

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19445iNCP42..MTM..PHL200212-200709

N=30,MARK 30:34

main33403-19455iSCP4#..MTM200210-200608

N=30,MARK 30:35

main33403-19585iAXP4#..MTM..(DLXI,GL,GLI)200210-200511

N=31,MARK 31:34

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAXP4#..MTM200210-200709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008216012

main90082-16012

91611B0825

main91611-B0825

5 parts on this diagram · 1 diagram in section
