CLUTCH HOUSING & TRANSMISSION CASE (MTM)

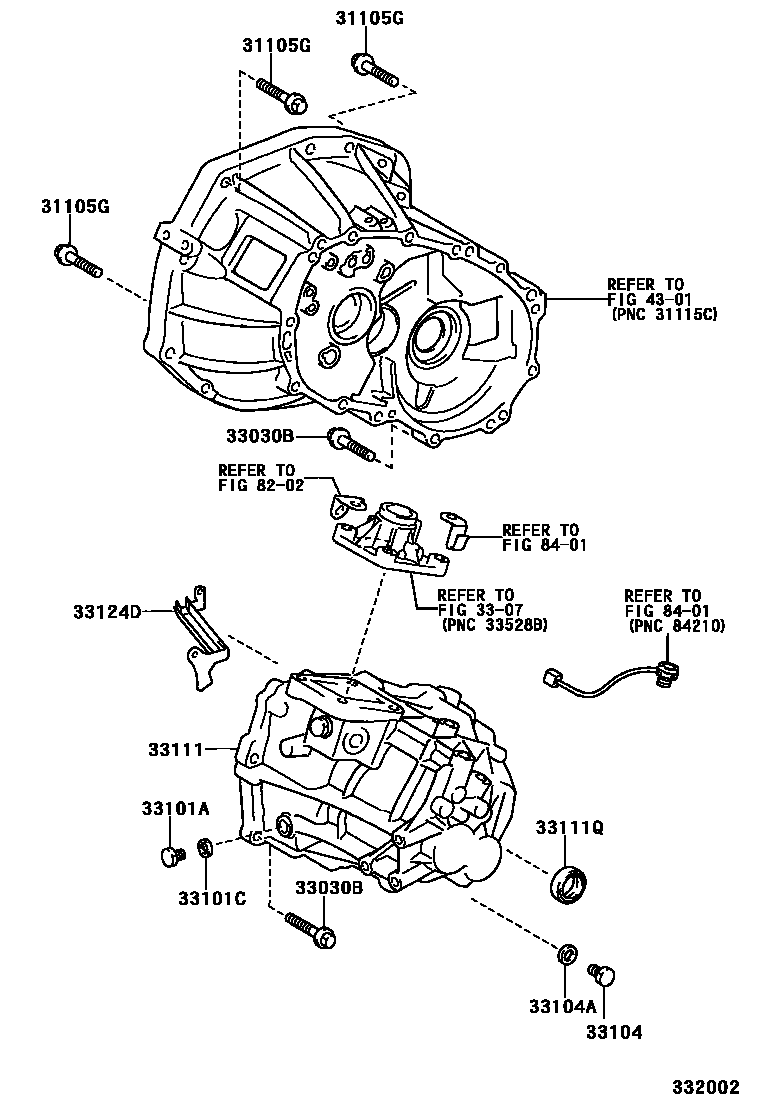

Parts diagram

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077i200210-200511

*10-1.25PX43-26

main90119-12168×3i200511-200608

*12-1.25PX55-30

main90119-T0068×7i200510-200602

*10-1.25PX50-30

main90119-T0225×7i200603-200702

*10-1.25PX45-30

main91612-61045×7i200603-200709

*10-1.25PX45-30

main91612-61050×7i200307-200602

*10-1.25PX50-30

main91622-61040×3i200608

*10-1.25PX40-30

main91622-B1025×3i200210-200511

*10-1.25PX25-20.5

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086×16i200212-200408

*8-1.25PX45-27.5,C150

main90105-08333×13i200608

*8-1.25PX35-30

main90105-08353×13i200510-200702

*8-1.25PX50-30,C56

main90105-08430×16i200510-200702

*8-1.25PX45-27.5

main91511-C0835×13i200511-200608

*8-1.25PX35-30

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006i200212-200506

main90341-18033i200510-200709

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008i200511-200608

main90430-C0002i200608

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i200511-200608

main90341-18033i200510-200709

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008i200511-200608

main90430-C0002i200608

33111CASE, MANUAL TRANSMISSION

main33111-0D010i200210-200511

main33111-16053i200212-200510

C150

main33111-17101i200402-200501

C56

main33111-17102i200501-200510

C56

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34028i200510-200706

main90311-34034i200706-200709

main90311-T0005i200511-200608

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-0D010i200608

main33124-10021i200510-200702

C150

main33124-12021i200402-200510

main33124-52010i200511-200608

4301

8202

8401

13 parts on this diagram · 3 diagrams in section
