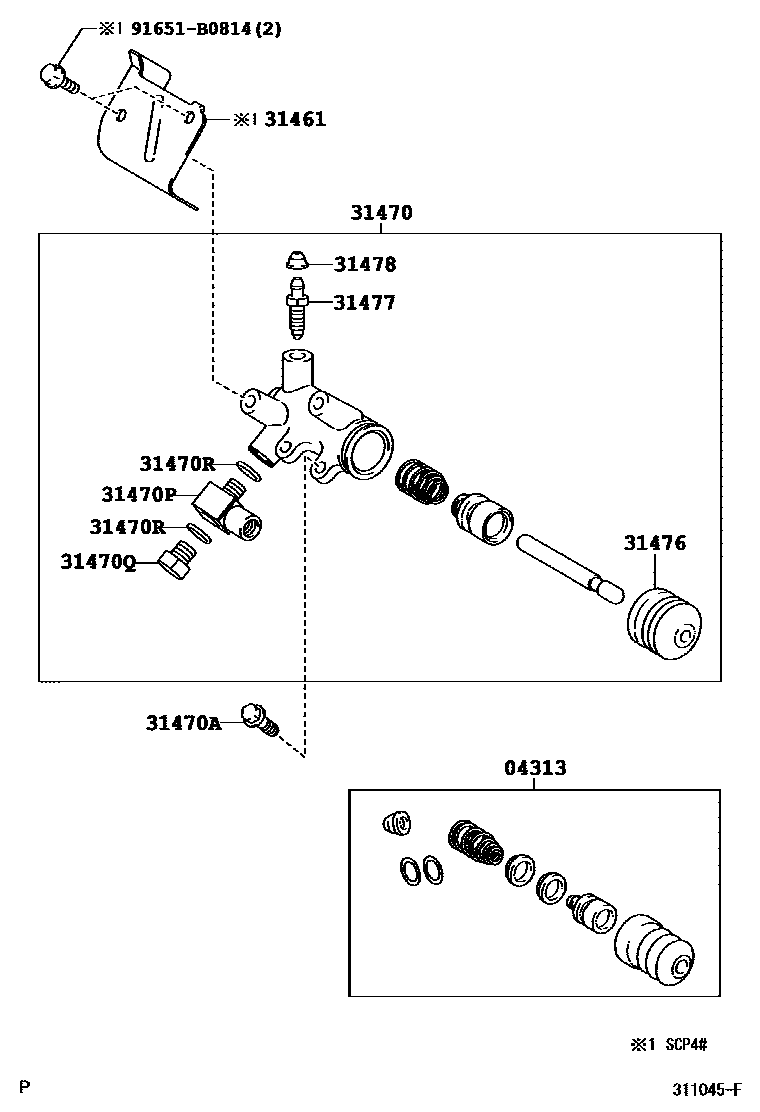

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iAXP4#..MTM200210-200511

main04313-35060iNCP4#..MTM200212-200603

31461INSULATOR, RELEASE CYLINDER HEAT

main31461-0D020iSCP4#..MTM200608

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0D010iAXP4#..MTM200210-200511

main31470-0D011iSCP4#..MTM200608

main31470-52011iNCP4#..MTM200510-200709

sub31470-12200

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822×2iAXP4#..MTM200210-200511

*8-1.25PX22-17.1

31470PUNION(FOR CLUTCH RELEASE)

main90405-10073iAXP4#..MTM200210-200511

31470QBOLT, UNION(FOR CLUTCH RELEASE)

main90401-10056iNCP4#..MTM200510-200709

31470RGASKET(FOR CLUTCH RELEASE)

main90029-43002×2iNCP4#..MTM200510-200709

main90430-10074×2iAXP4#..MTM200210-200511

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iNCP4#..MTM200510-200709

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAXP4#..MTM200210-200511

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAXP4#..MTM200210-200511

91651B0814

main91651-B0814

11 parts on this diagram · 2 diagrams in section
