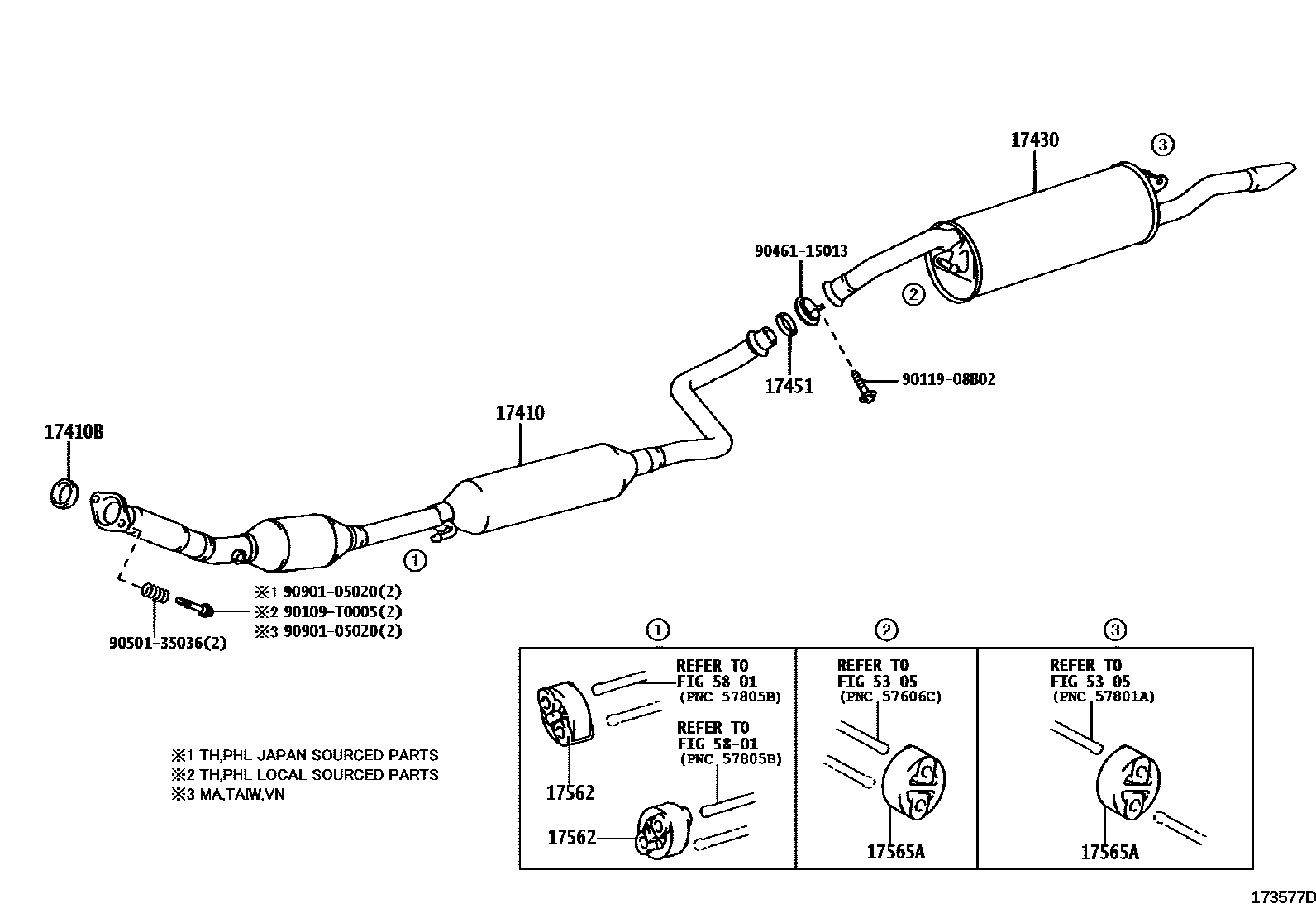

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-02450i5AFE,8AFE..AXP4#200210-200511

main17410-0J060i2SZFE,3SZFE..SCP4#200608

main17410-0M010i1NZFE..NCP42..TAIW200303-200510

main17410-0M020i1NZFE,2NZFE..NCP4#..PHL,TH,VN200212-200603

main17410-0M030i1NZFE..NCP42..MA200305-200512

main17410-0M130i1NZFE..NCP42200710

17410BGASKET, EXHAUST PIPE

main17451-0J040i2SZFE,3SZFE..SCP4#200608

main17451-0M010i1NZFE,2NZFE..NCP4#..PHL,TH200510-200702

(L)

main17451-21030i1NZFE,2NZFE..NCP4#..PHL,TH200510-200702

(J)

main90917-06080i5AFE,8AFE..AXP4#200511-200608

17430PIPE ASSY, EXHAUST, TAIL

main17430-02240i5AFE,8AFE..AXP4#200210-200301

main17430-02241i5AFE,8AFE..AXP4#200301-200305

main17430-02242i5AFE,8AFE..AXP4#200305-200511

main17430-02260i2SZFE,3SZFE..SCP4#200608

main17430-0M010i1NZFE..NCP42..TAIW200303-200510

main17430-0M011i1NZFE..NCP42200912

main17430-0M020i1NZFE,2NZFE..NCP4#..PHL,TH,VN200510-200709

main17430-0M040i1NZFE..NCP42..MA200512-200708

17451GASKET, EXHAUST PIPE

main90917-06048i2SZFE,3SZFE..SCP4#200608

main90917-06082i1NZFE,2NZFE..NCP4#200212-200512

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-02090×2i5AFE,8AFE..AXP4#200511-200608

main17562-0M030×2i1NZFE..NCP42..TAIW200510

main17562-0M040×2i1NZFE,2NZFE..NCP4#..MA,PHL,TH,VN200212-200603

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-02160×2i5AFE,8AFE..AXP4#200511-200608

main17565-0A170×2i1NZFE..NCP42..TAIW200510

main17565-0M010×2i1NZFE,2NZFE..NCP4#..MA,PHL,TH,VN200510-200709

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

90109T0005

main90109-T0005

9011908B02

main90119-08B02

9046115013

main90461-15013

9050135036

main90501-35036

9090105020

main90901-05020

13 parts on this diagram · 3 diagrams in section
